Home >> Isuzu >> 2003 >> Axiom Base, RWD >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Coil Spring >> Coil Spring and Associated Parts >> Notes

Coil Spring and Associated Parts: Notes

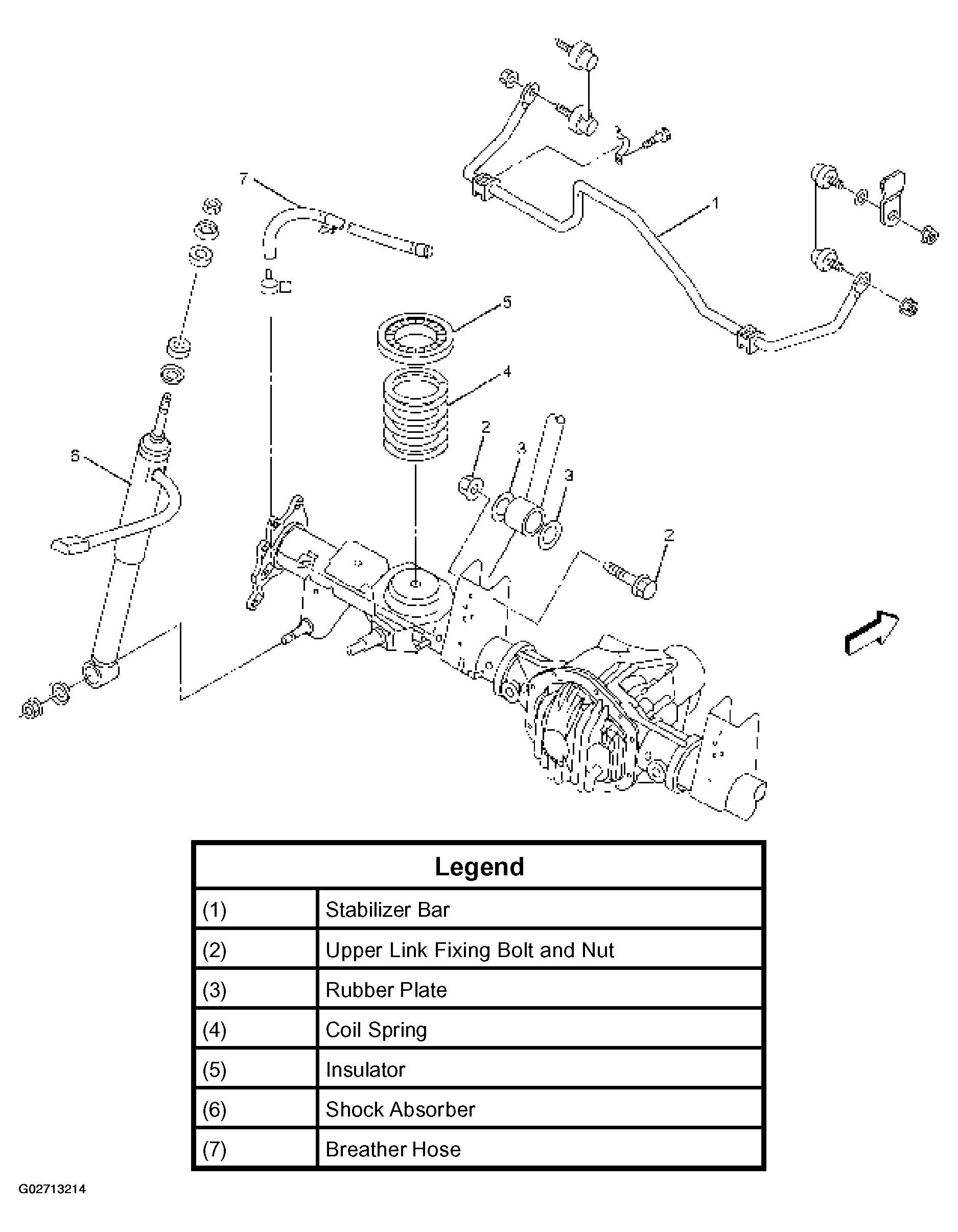

Fig 1: Exploded View Of Coil Spring And Associated Parts

G02713214

Courtesy of ISUZU MOTOR CO.
