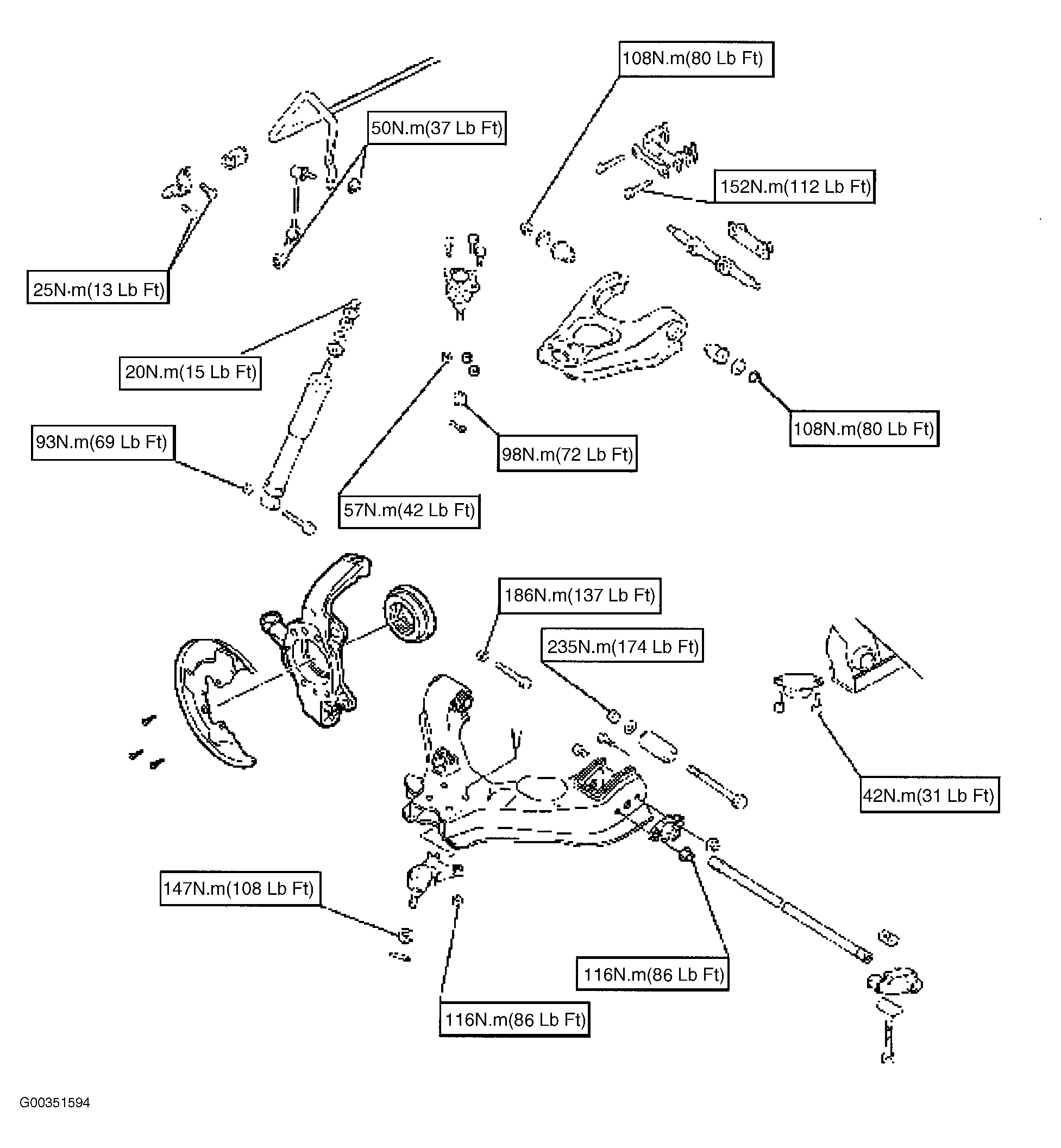

Torque Specifications
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |
|---|---|---|
| Ball Joint | ||
| Bolt/Nut | 86 (116) | |
| Stud Nut | 108 (147) | |
| Ball Joint (Upper) | ||
| Bolt/Nut | 42 (57) | |
| Stud Nut | 72 (98) | |
| Control Arm (Lower) | ||
| Lower Ball | 86 (116) | |
| Shock Absorber | 69 (93) | |
| Stabilizer Link | 37 (50) | |
| Torsion Bar Bracket | 86 (116) | |
| Control Arm (Upper) | ||
| Bolt/Plate | 112 (152) | |
| Stud Nut | 72 (98) | |
| Ball Joint | 42 (57) | |
| Knuckle Assembly | ||
| Stud Nut (Lower Ball Joint) | 108 (147) | |
| Stud Nut (Upper Ball Joint) | 72 (98) | |
| Shock Absorber | ||
| Bolt/Nut | 69 (93) | |
| Stud Nut | 15 (20) | |
| Stabilizer Link | ||
| Bracket | 18 (25) | |
| Nut | 37 (50) | |
