DTC P1850: Brake Band Apply Solenoid Malfunction: Notes

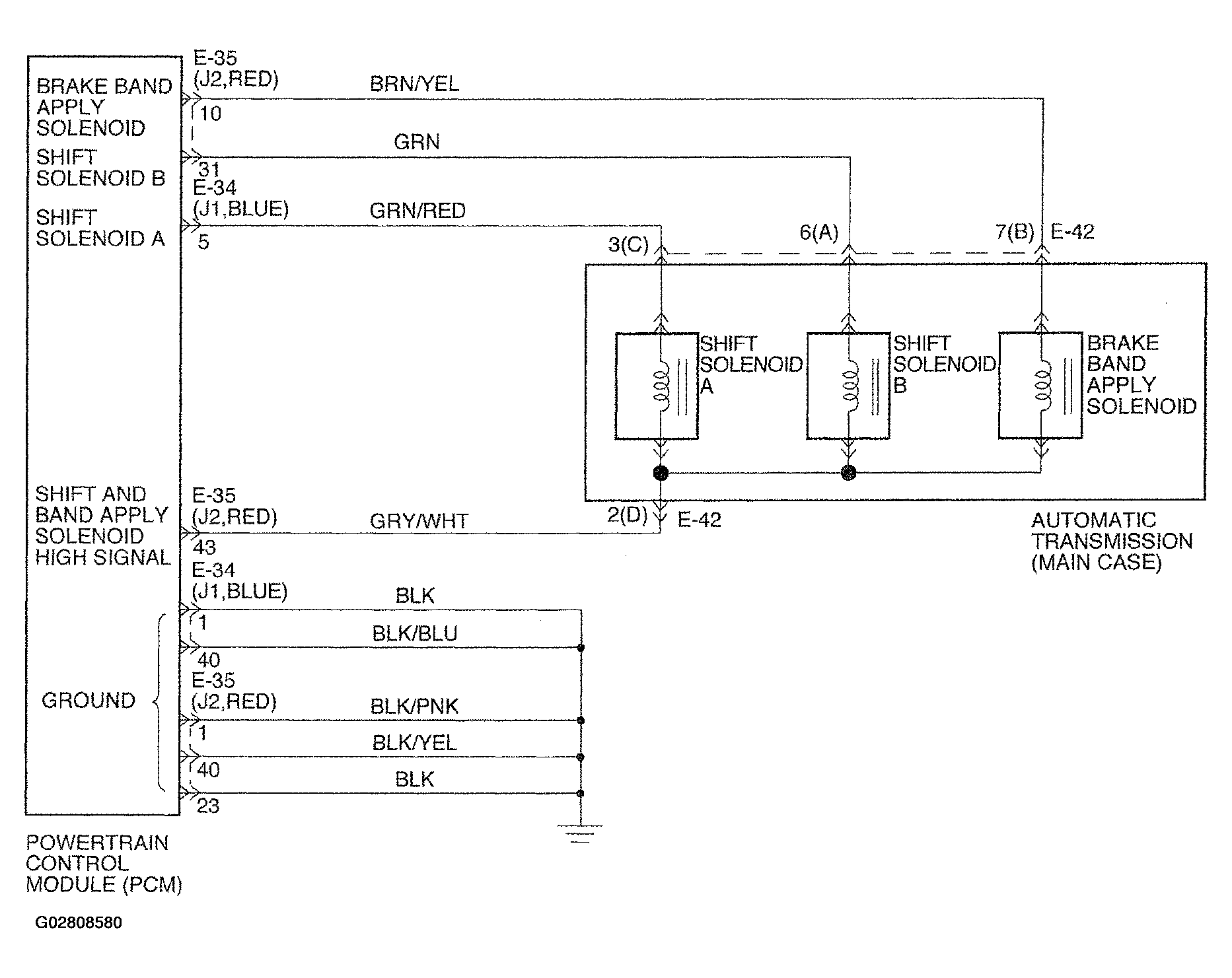

Fig 1: DTC P1850 Brake Band Apply Solenoid Malfunction Circuit Diagram
G02808580Courtesy of ISUZU MOTOR CO.
