Diagnostic Procedure

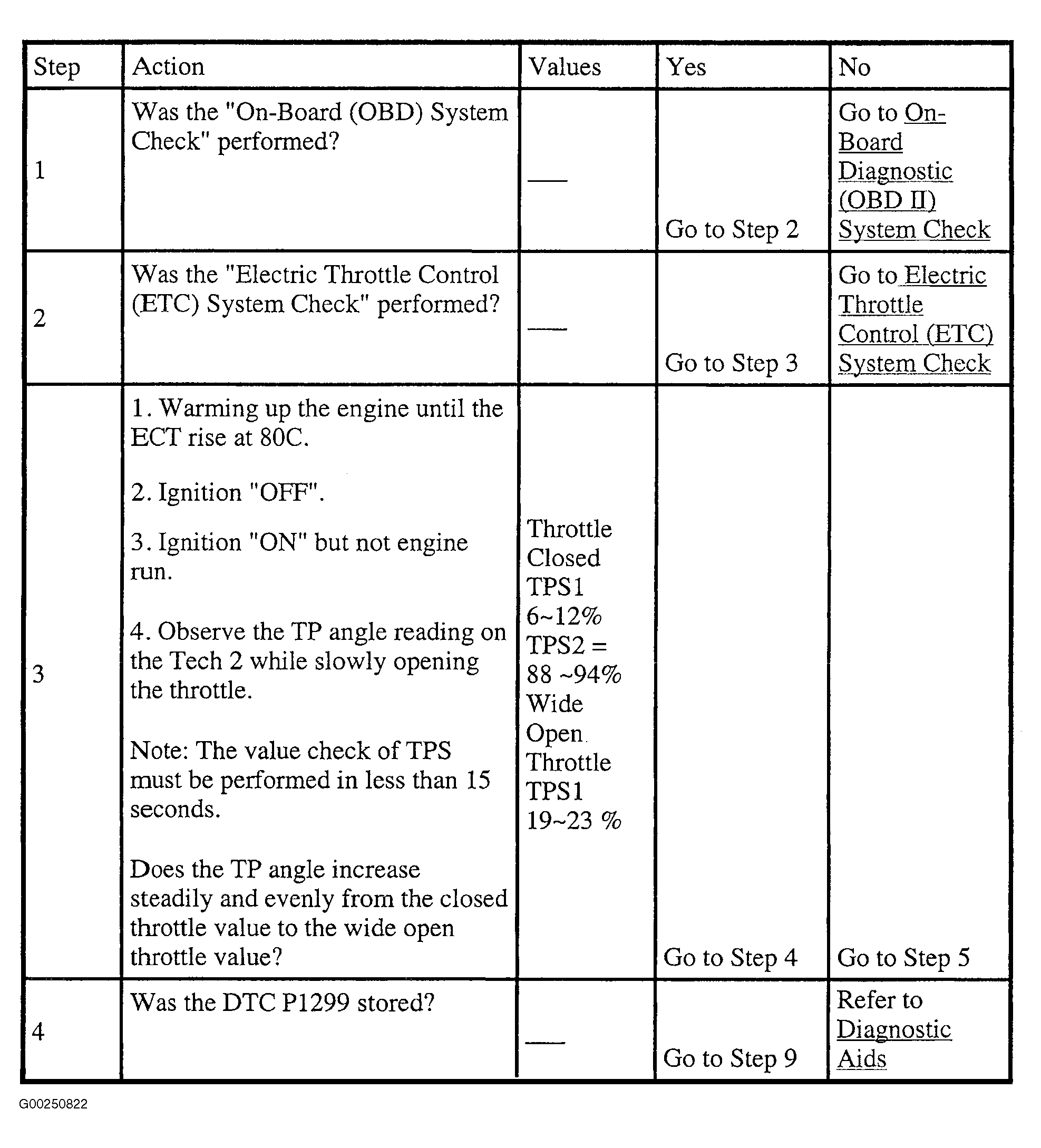

Fig 1: DTC P1299: ETC Forced Engine Shutdown Mode (Steps 1-4)

G00250822

Courtesy of ISUZU MOTOR CO.

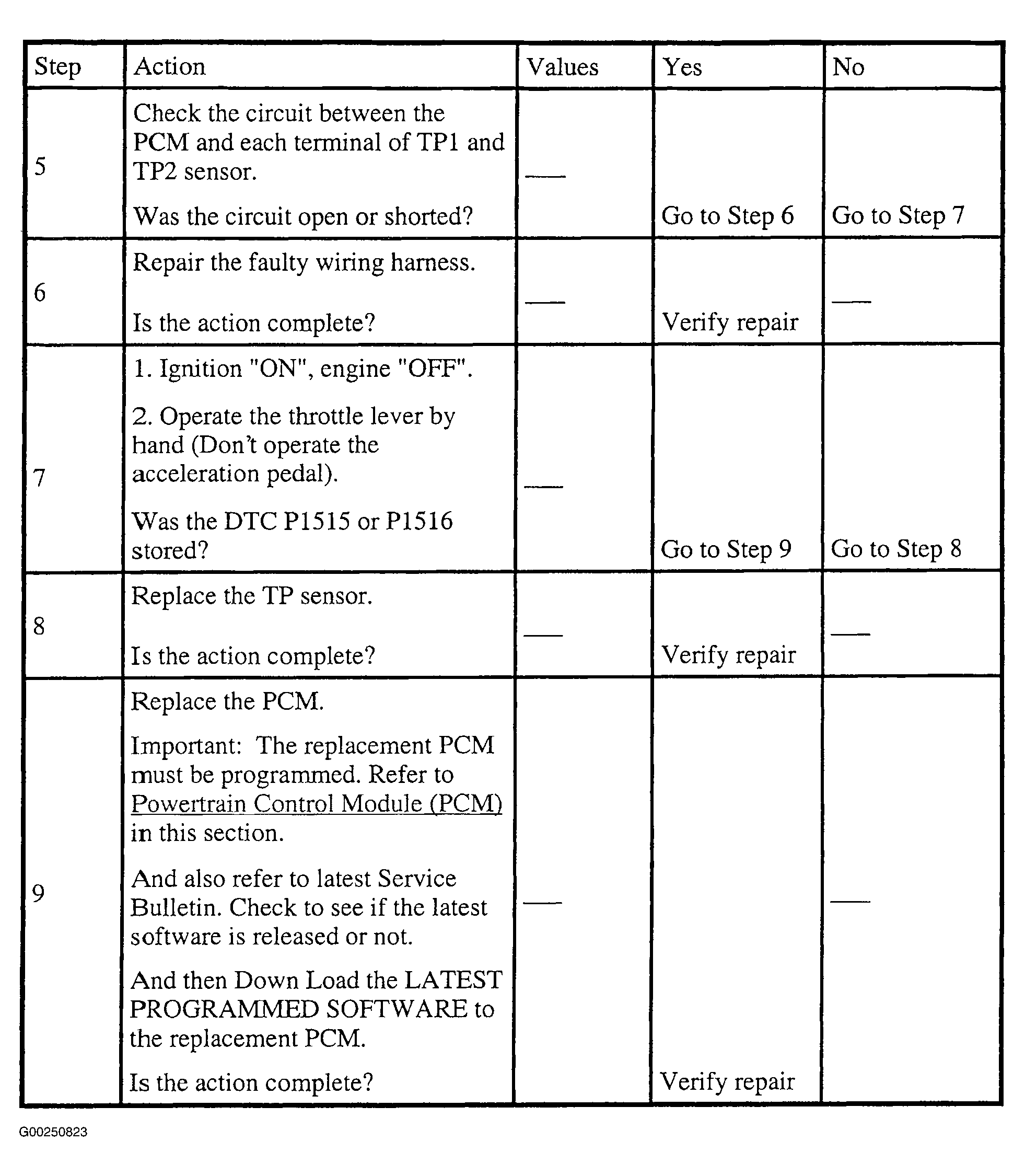

Fig 2: DTC P1299: ETC Forced Engine Shutdown Mode (Steps 5-9)

G00250823

Courtesy of ISUZU MOTOR CO.
