Diagnostic Procedure

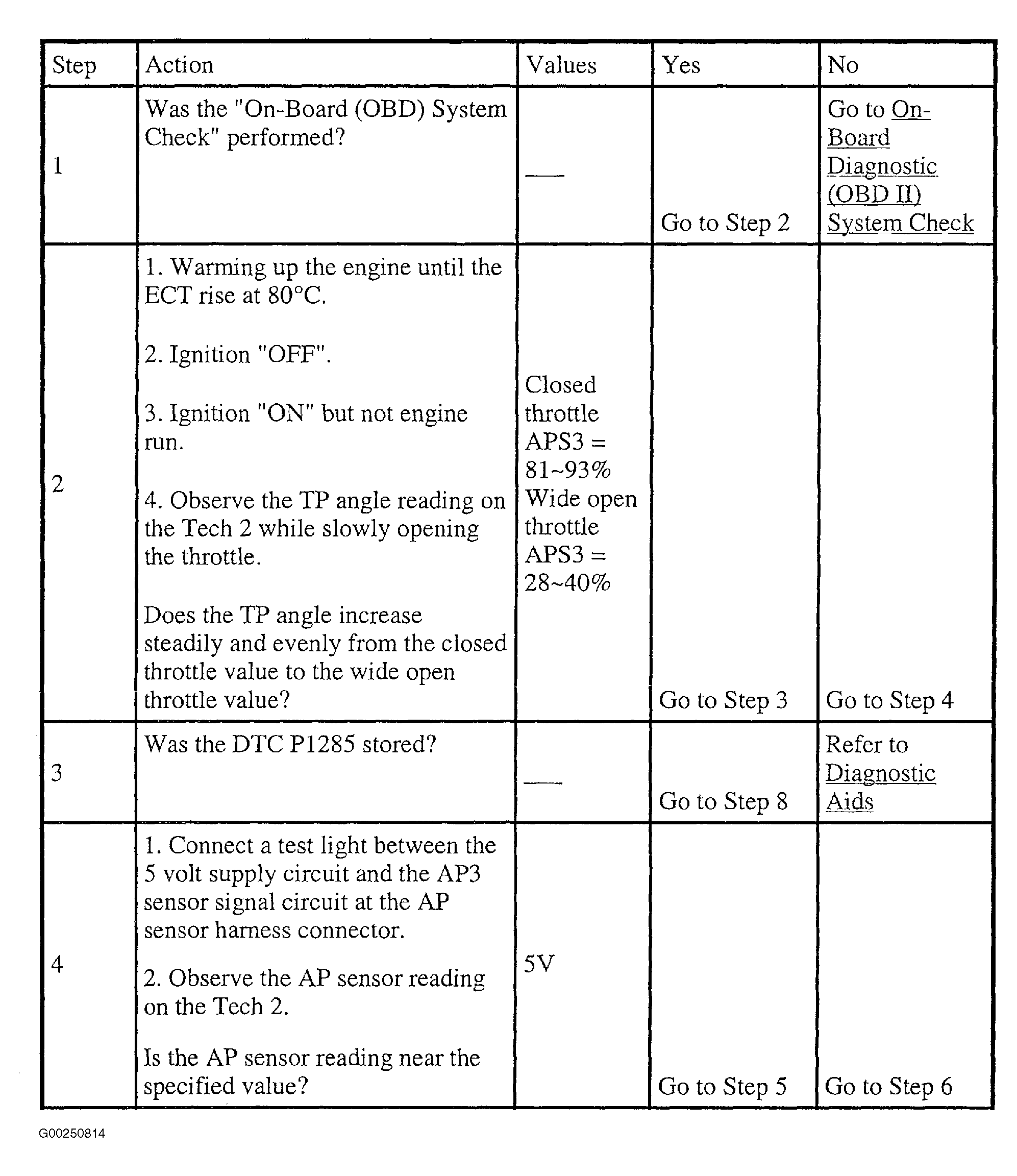

Fig 1: DTC P1285: AP Sensor 3 Circuit Fault (Steps 1-4)

G00250814

Courtesy of ISUZU MOTOR CO.

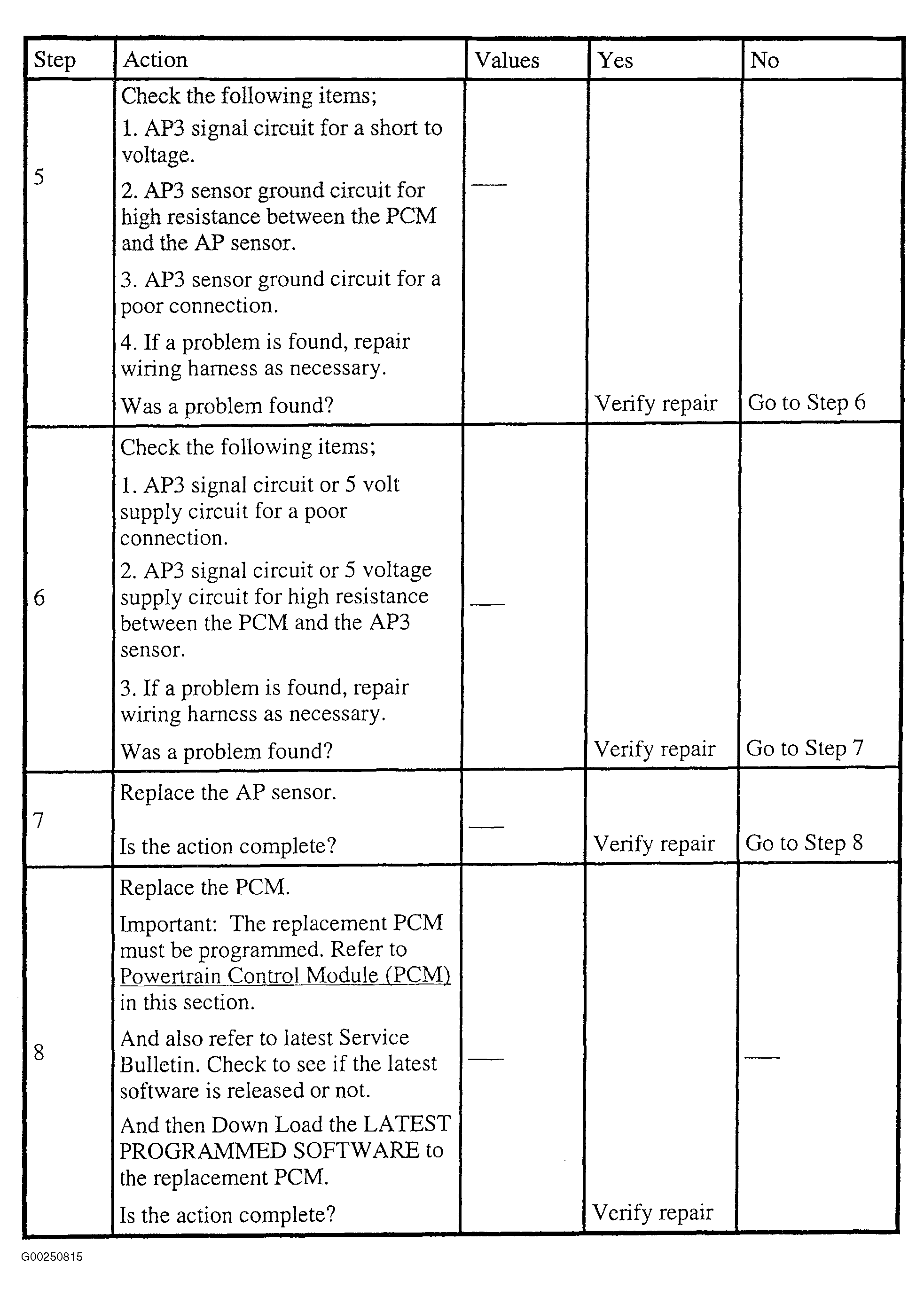

Fig 2: DTC P1285: AP Sensor 3 Circuit Fault (Steps 5-8)

G00250815

Courtesy of ISUZU MOTOR CO.
