Diagnostic Procedure

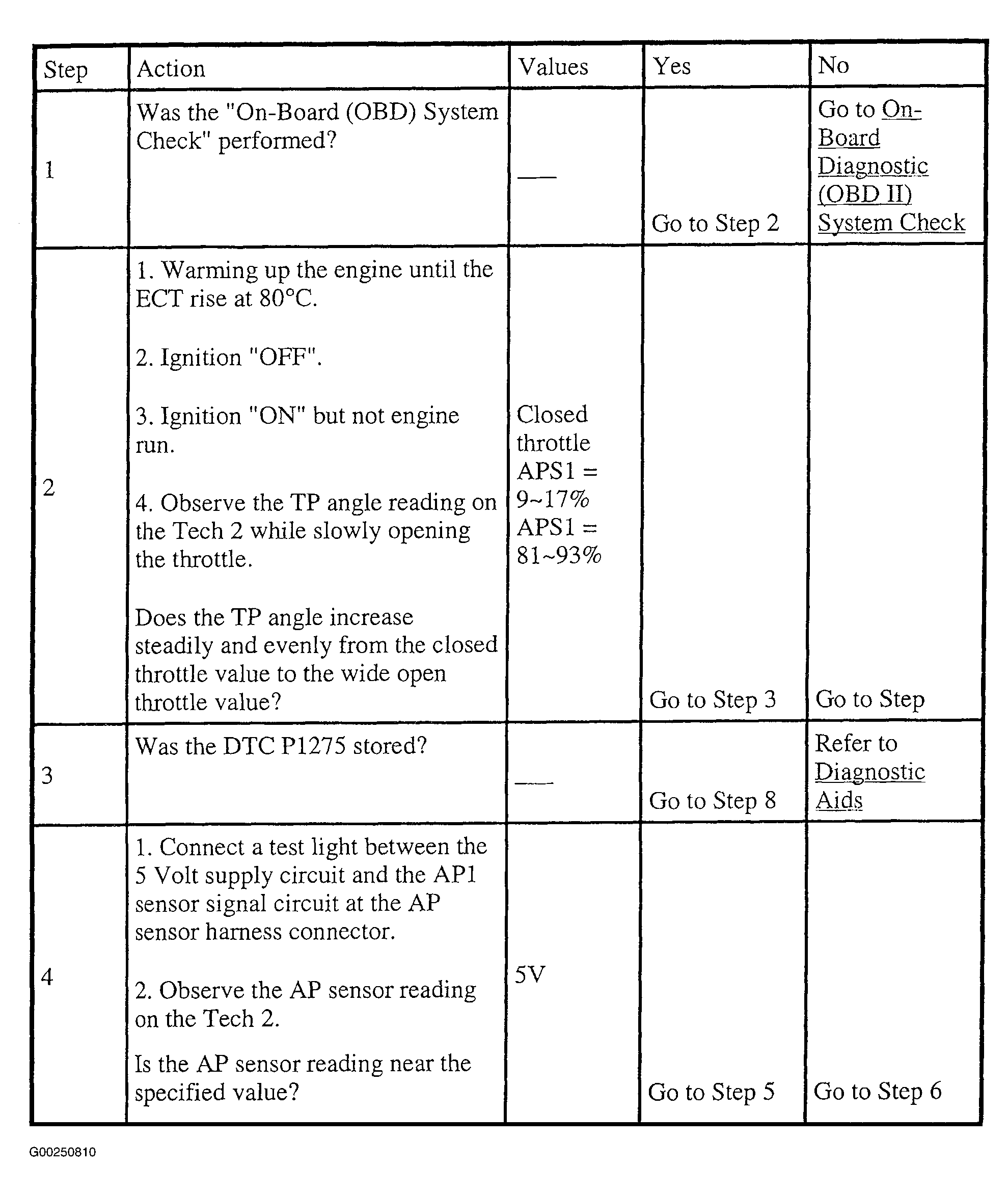

Fig 1: DTC P1275: AP Sensor 1 Circuit Fault (Steps 1-4)

G00250810

Courtesy of ISUZU MOTOR CO.

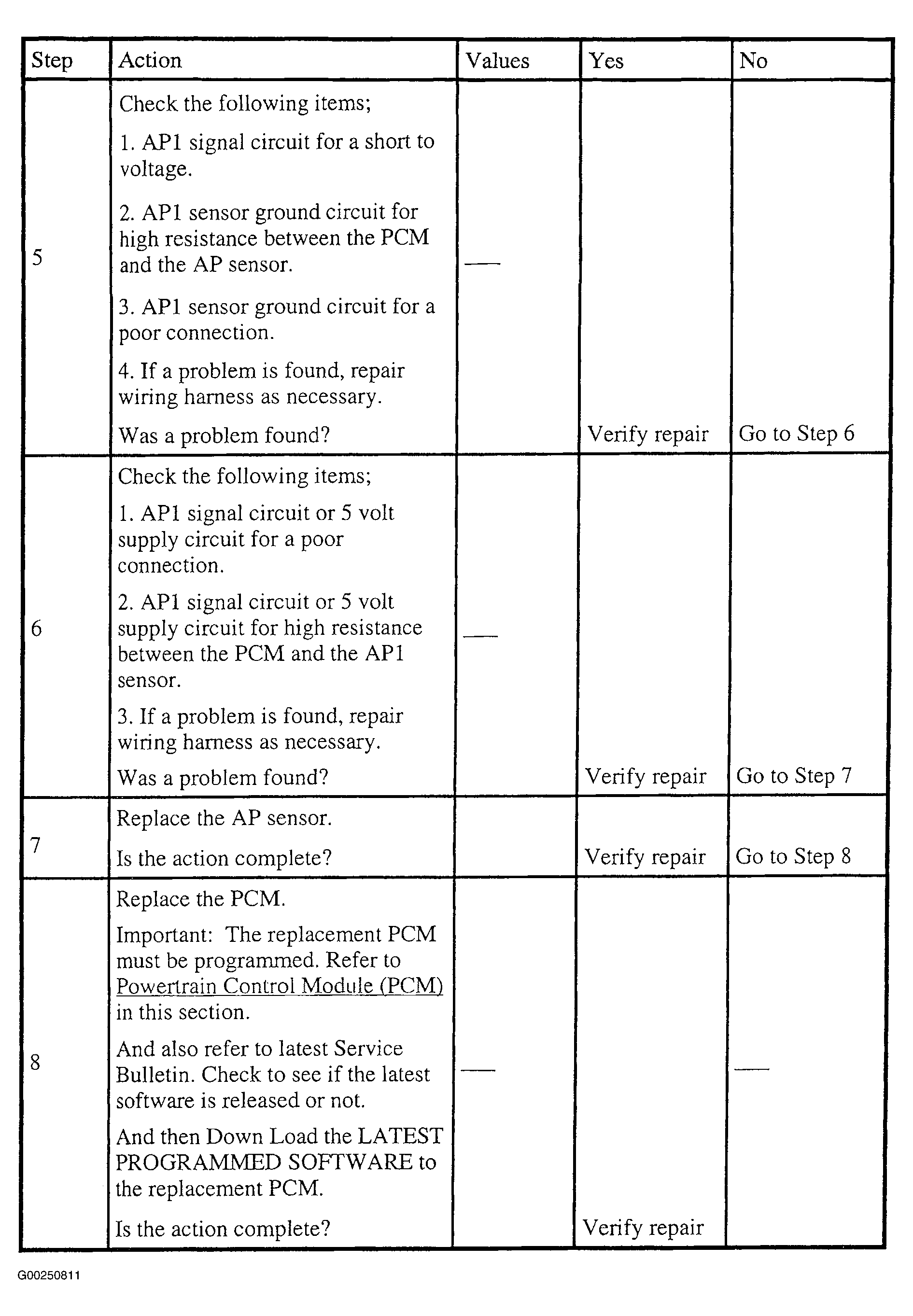

Fig 2: DTC P1275: AP Sensor 1 Circuit Fault (Steps 5-8)

G00250811

Courtesy of ISUZU MOTOR CO.
