DTC P1125: Electric Throttle Control Limit Performance Mode
>>
Diagnostic Procedure
Diagnostic Procedure

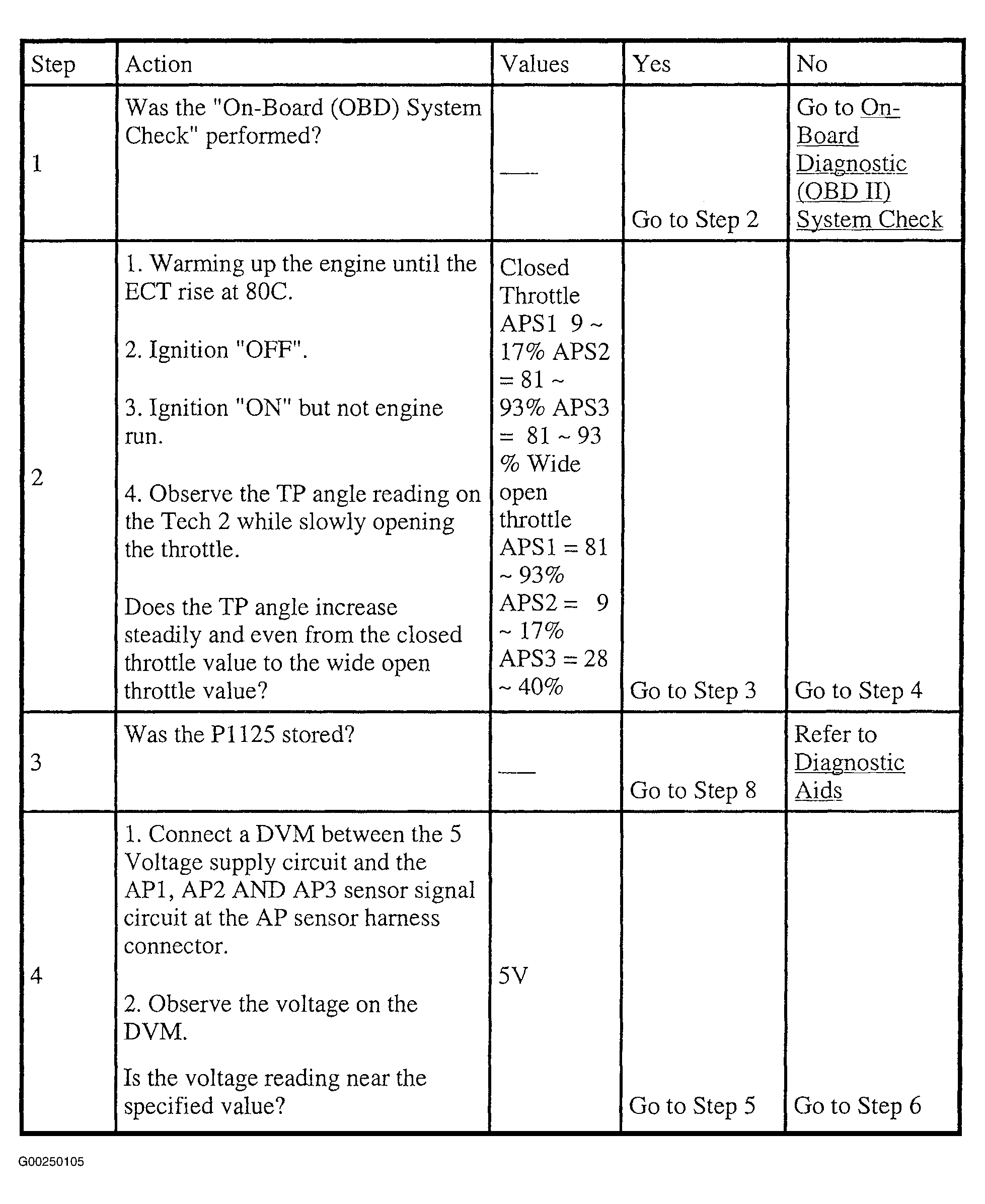

Fig 1: DTC P1125: ETC Limit Performance Mode (Steps 1-4)
Courtesy of ISUZU MOTOR CO.

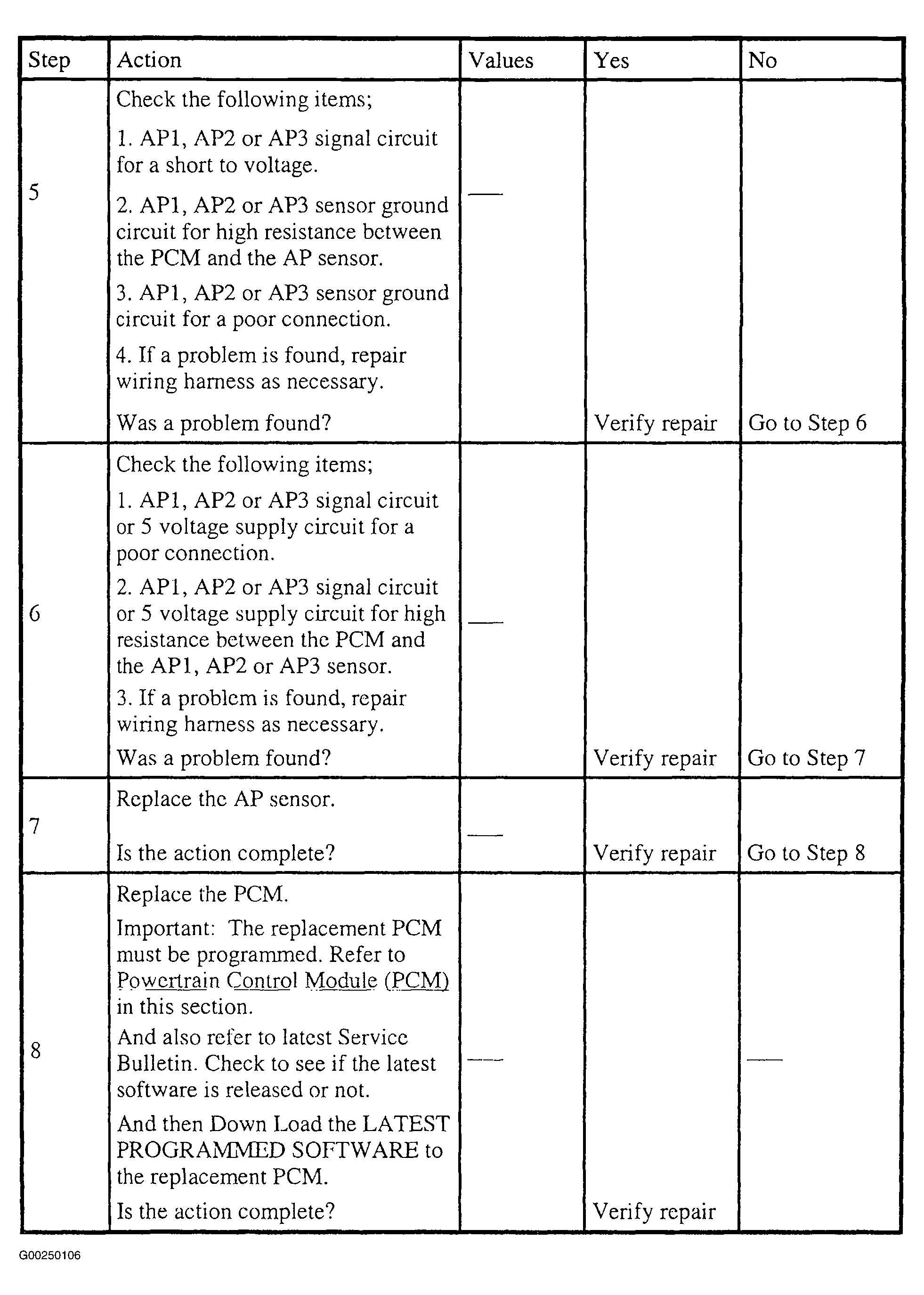

Fig 2: DTC P1125: ETC Limit Performance Mode (Steps 5-8)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
