Diagnostic Procedure

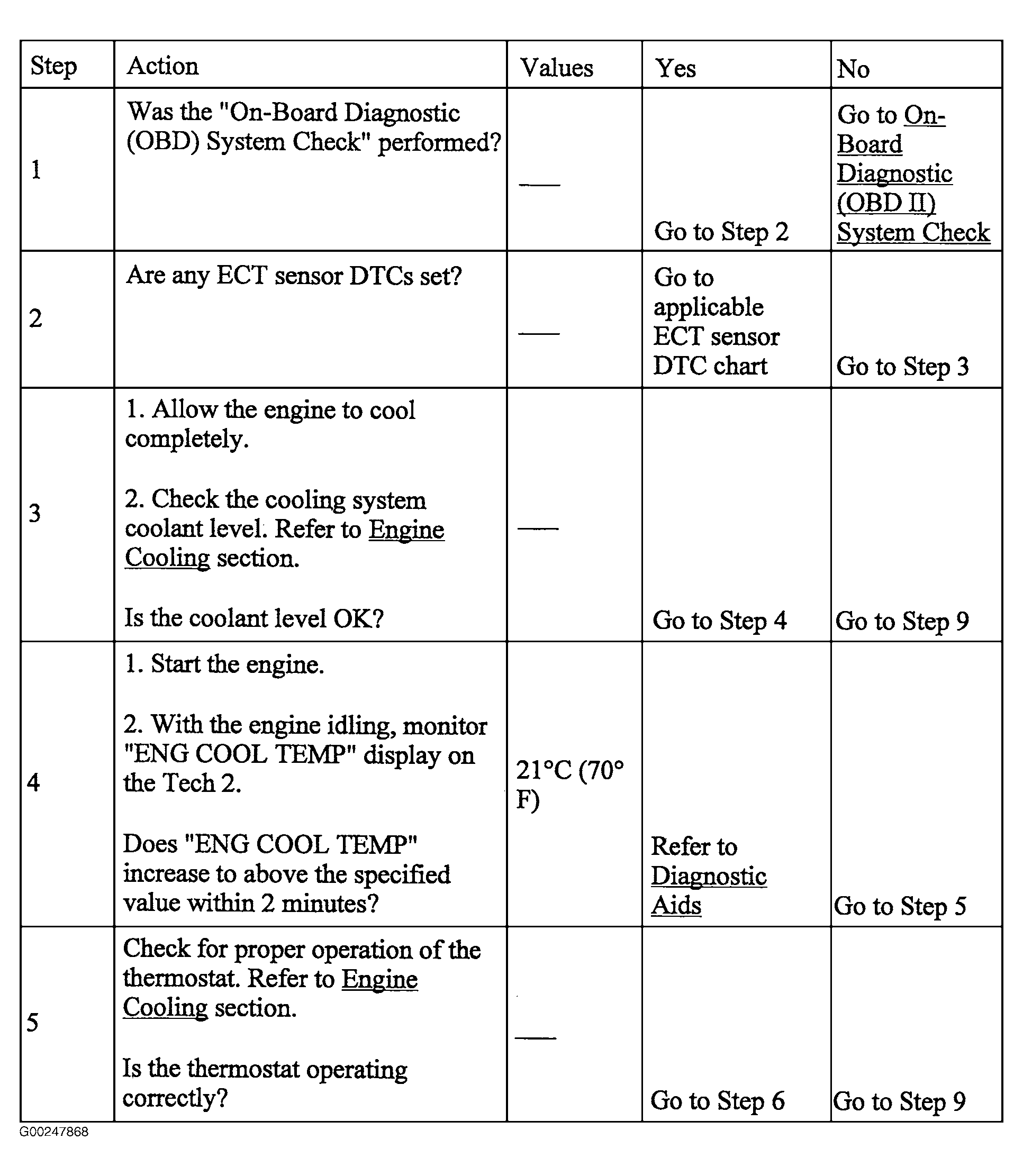

Fig 1: DTC P0125: ECT Sensor Excessive Time To Closed Loop Fuel Control (Steps 1-5)
G00247868Courtesy of ISUZU MOTOR CO.

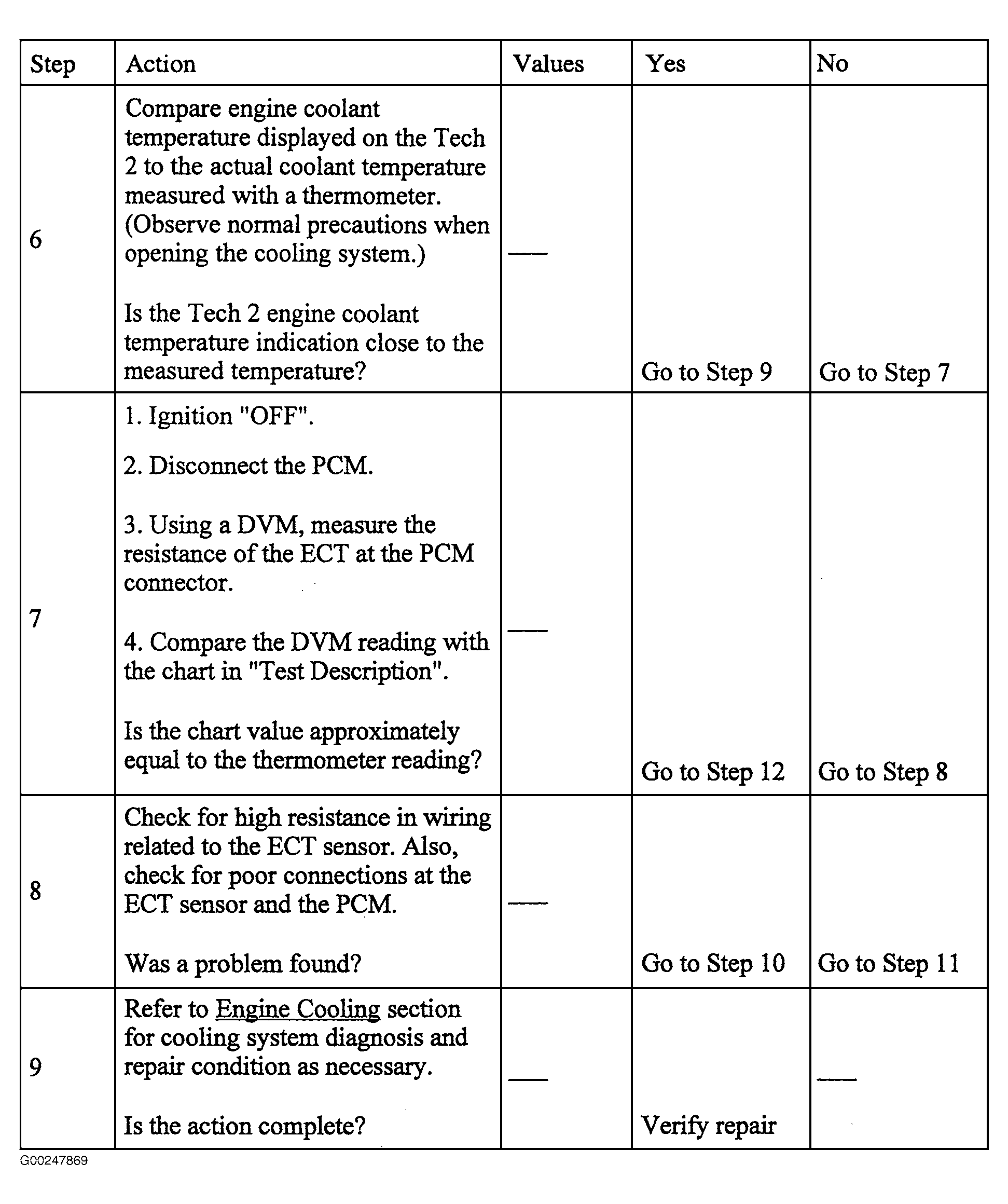

Fig 2: DTC P0125: ECT Sensor Excessive Time To Closed Loop Fuel Control (Steps 6-9)
G00247869Courtesy of ISUZU MOTOR CO.

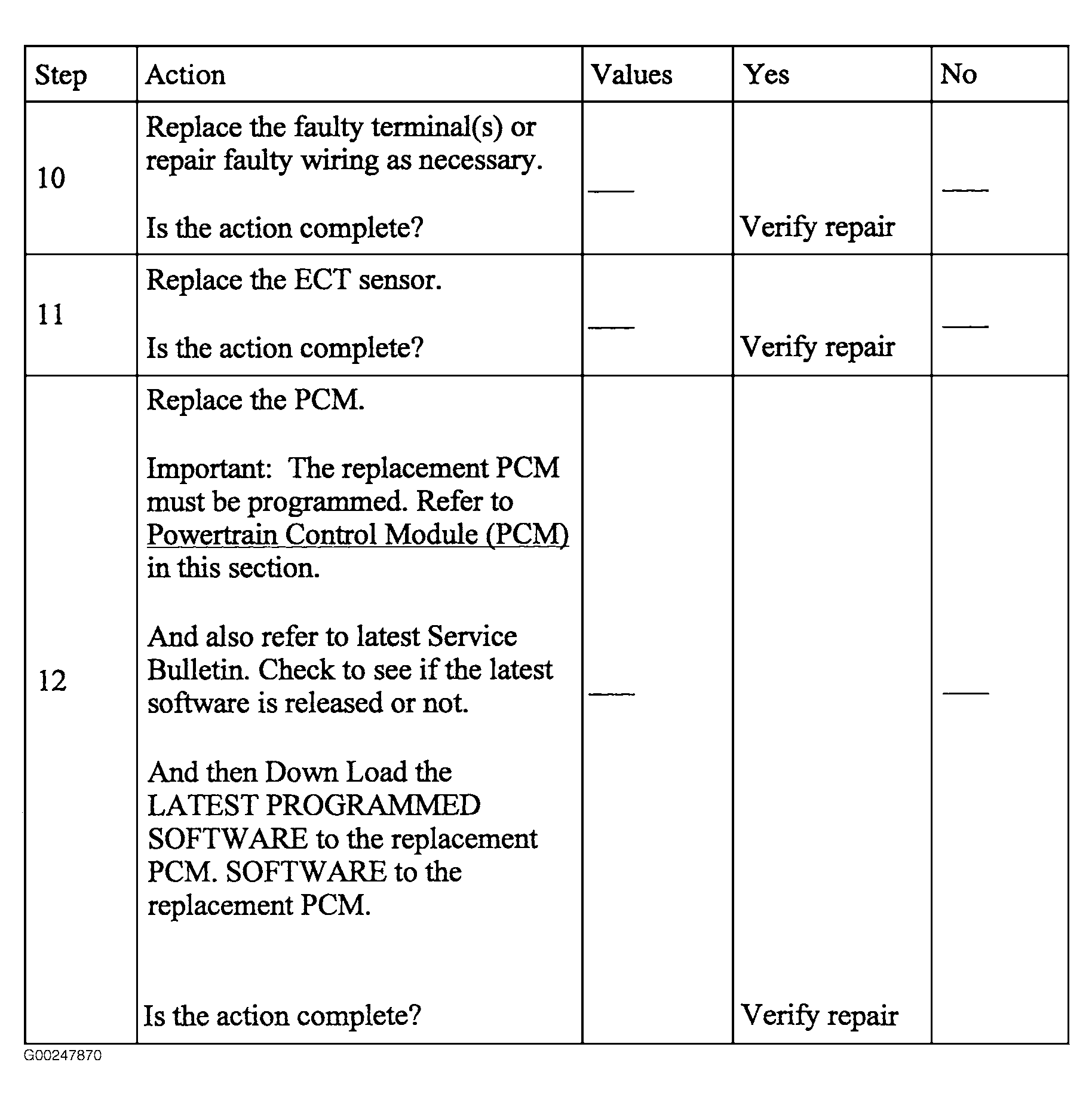

Fig 3: DTC P0125: ECT Sensor Excessive Time To Closed Loop Fuel Control (Steps 10-12)
G00247870Courtesy of ISUZU MOTOR CO.
