Engine Cooling: Radiator: Removal

Disconnect battery ground cable.
Loosen a drain plug (2) to drain EC.
Disconnect oil cooler hose (1) on automatic transmission (A/T).
Disconnect radiator inlet hose and outlet hose from the engine.

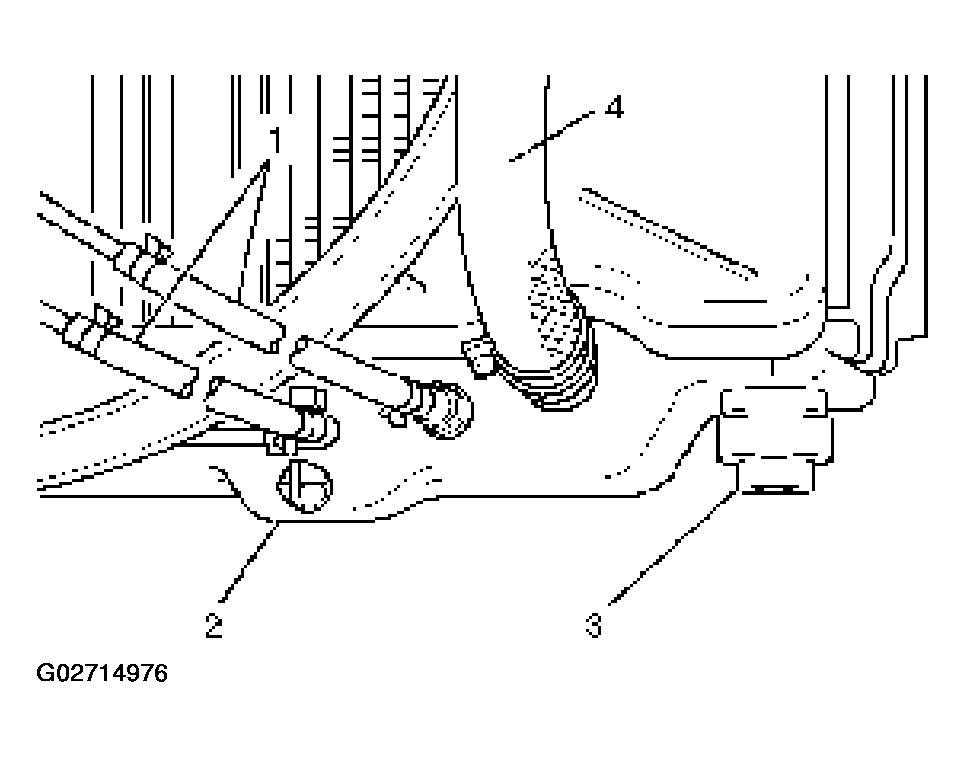

Fig 1: Disconnecting Oil Cooler Hose
Courtesy of ISUZU MOTOR CO.
Remove fan guide (1), clips (3) on both sides and the bottom lock, then remove fan guide lower (3) with fan shroud (4).

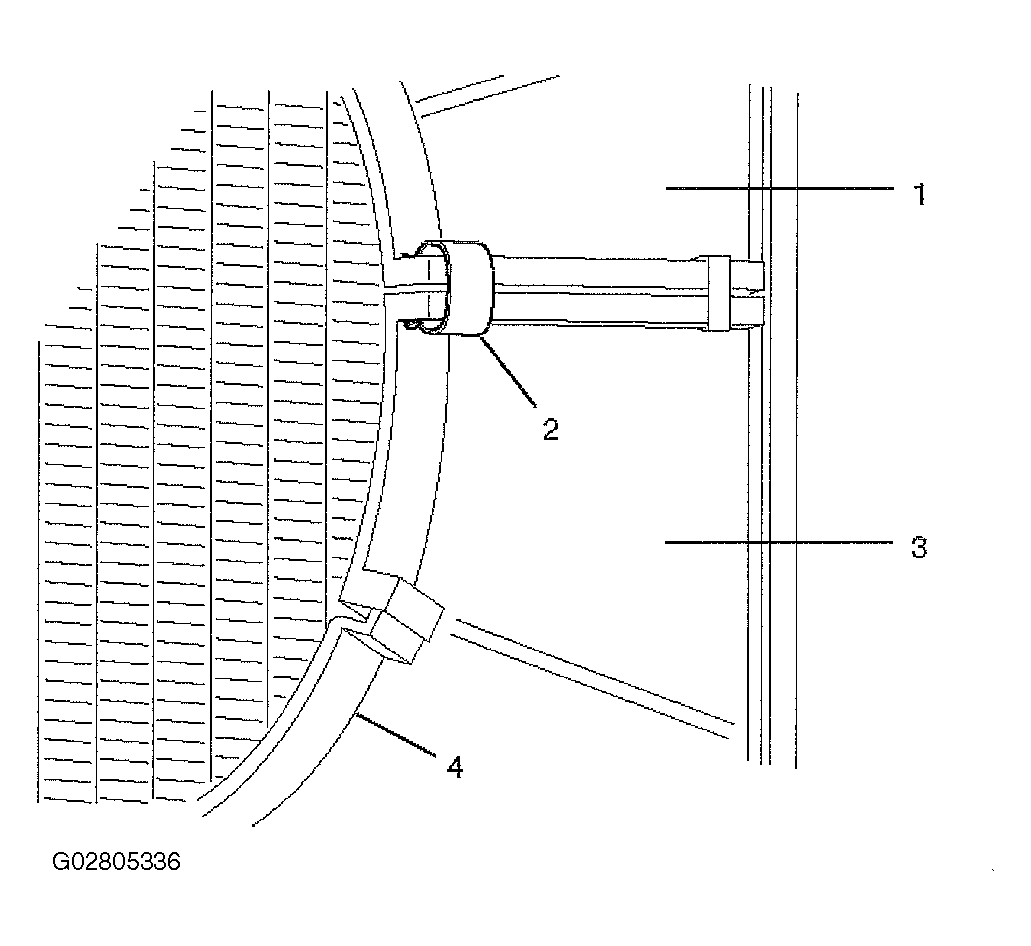

Fig 2: Removing Fan Guide, Clips On Both Sides And Bottom Lock
Courtesy of ISUZU MOTOR CO.
Disconnect the reserve tank hose (4) from radiator.

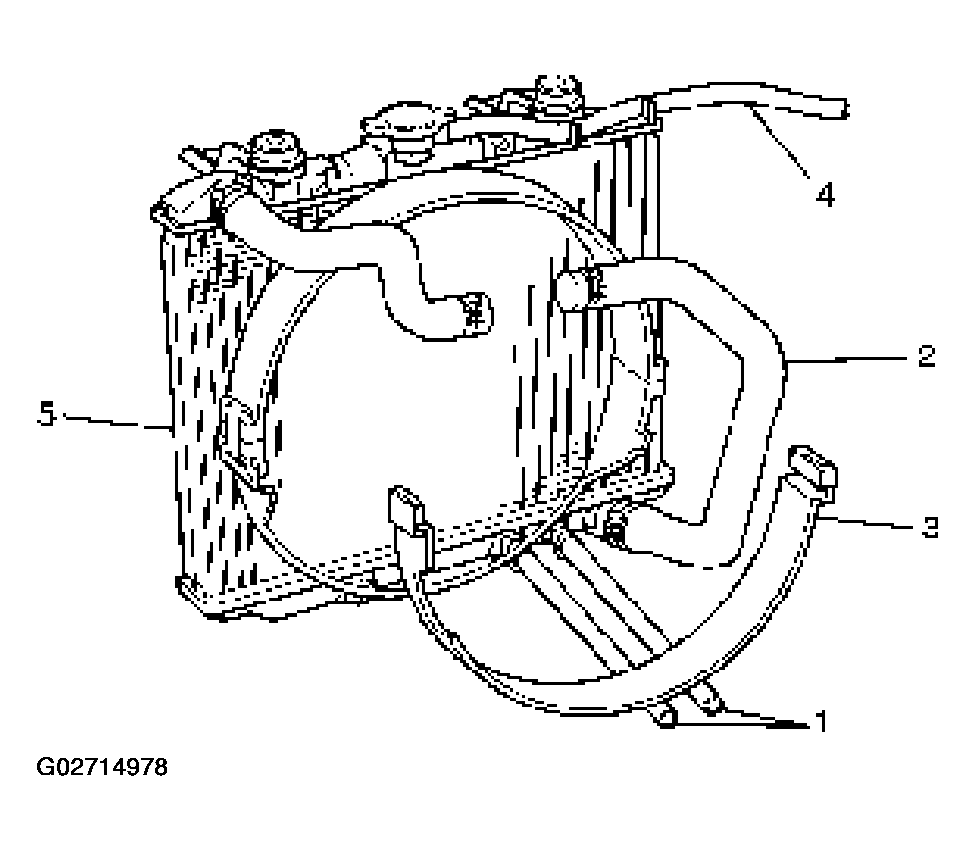

Fig 3: Disconnecting Reserve Tank Hose From Radiator
Courtesy of ISUZU MOTOR CO.
Lift up and remove the radiator assembly with hose, taking care not to damage the radiator core with a fan blade.
Remove rubber cushions on both sides at the bottom.
