Driver's Under-Dash Fuse/Relay Box

NOTE: Driver's under-dash fuse/relay box is located at left end of dash. See Fig 1 . Driver's under-dash fuse/relay box components are identified on the fuse/relay box cover.

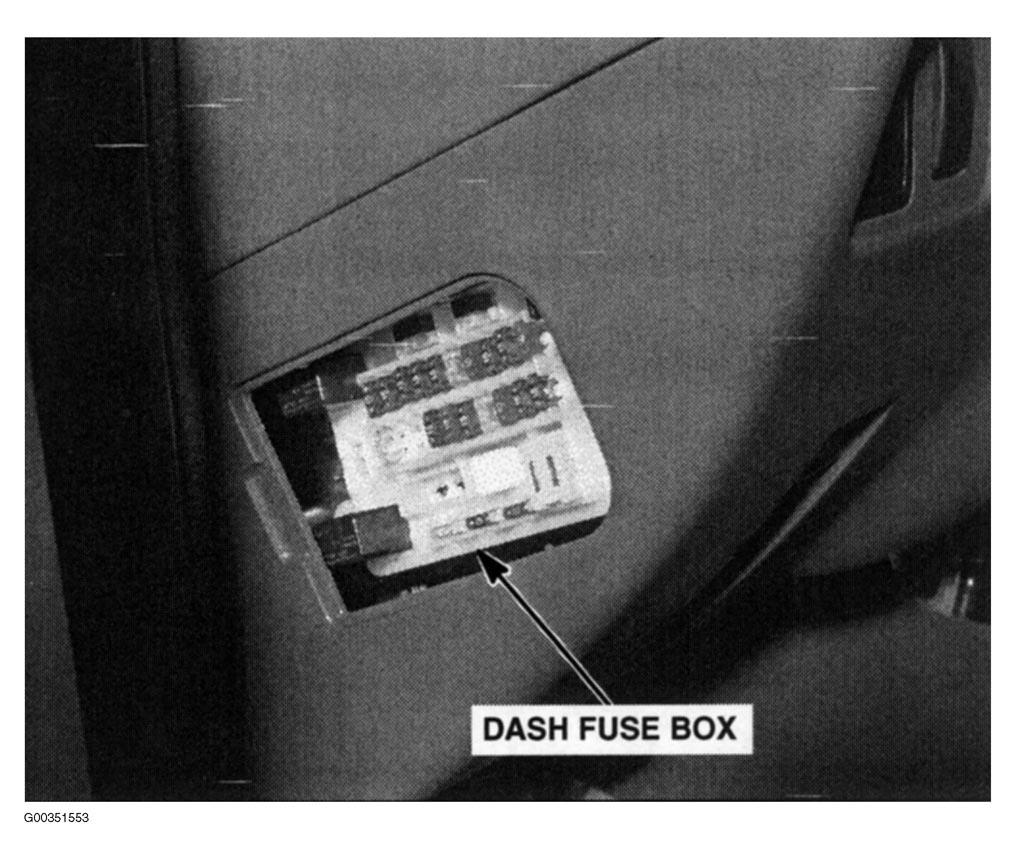

Fig 1: Locating Driver's Under Dash Fuse/Relay Box
G00351553Courtesy of ISUZU MOTOR CO.
