General Description (Frame)
>>
Frame Dimensions
Frame Dimensions

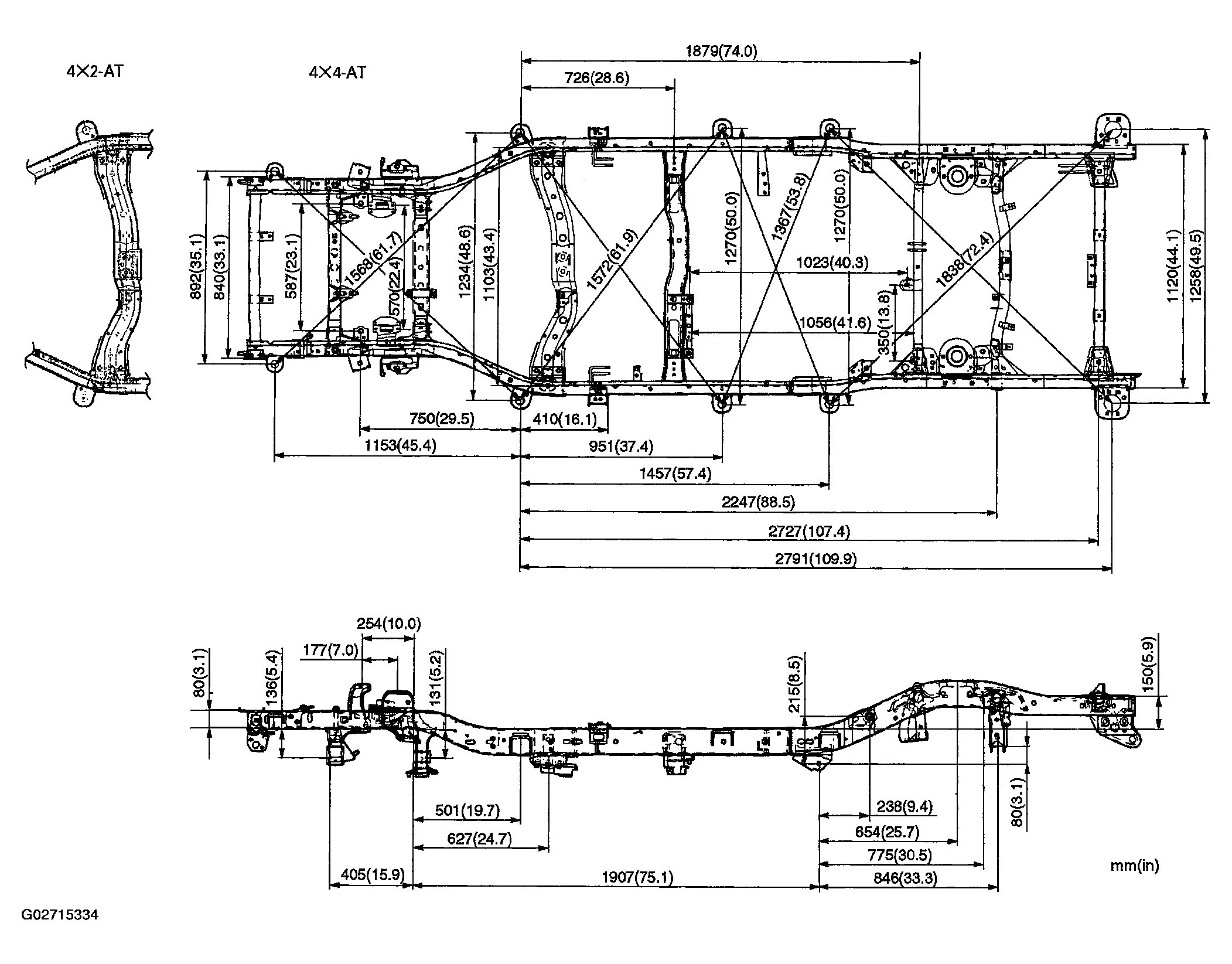

Fig 1: Identifying Frame Dimensions
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
