Front Section

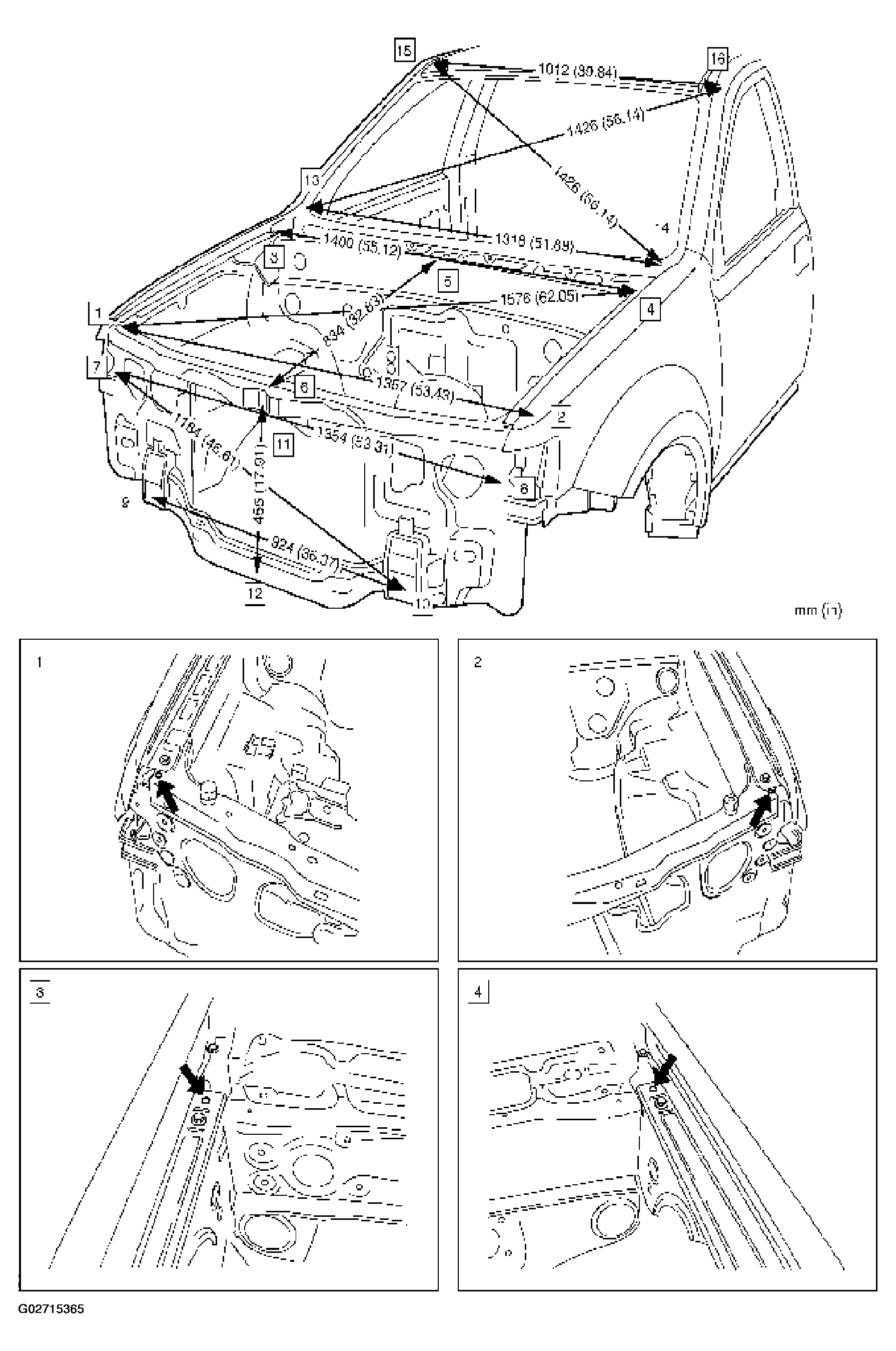

Fig 1: Identifying Body Dimension Front Section (1 Of 3)
G02715365Courtesy of ISUZU MOTOR CO.

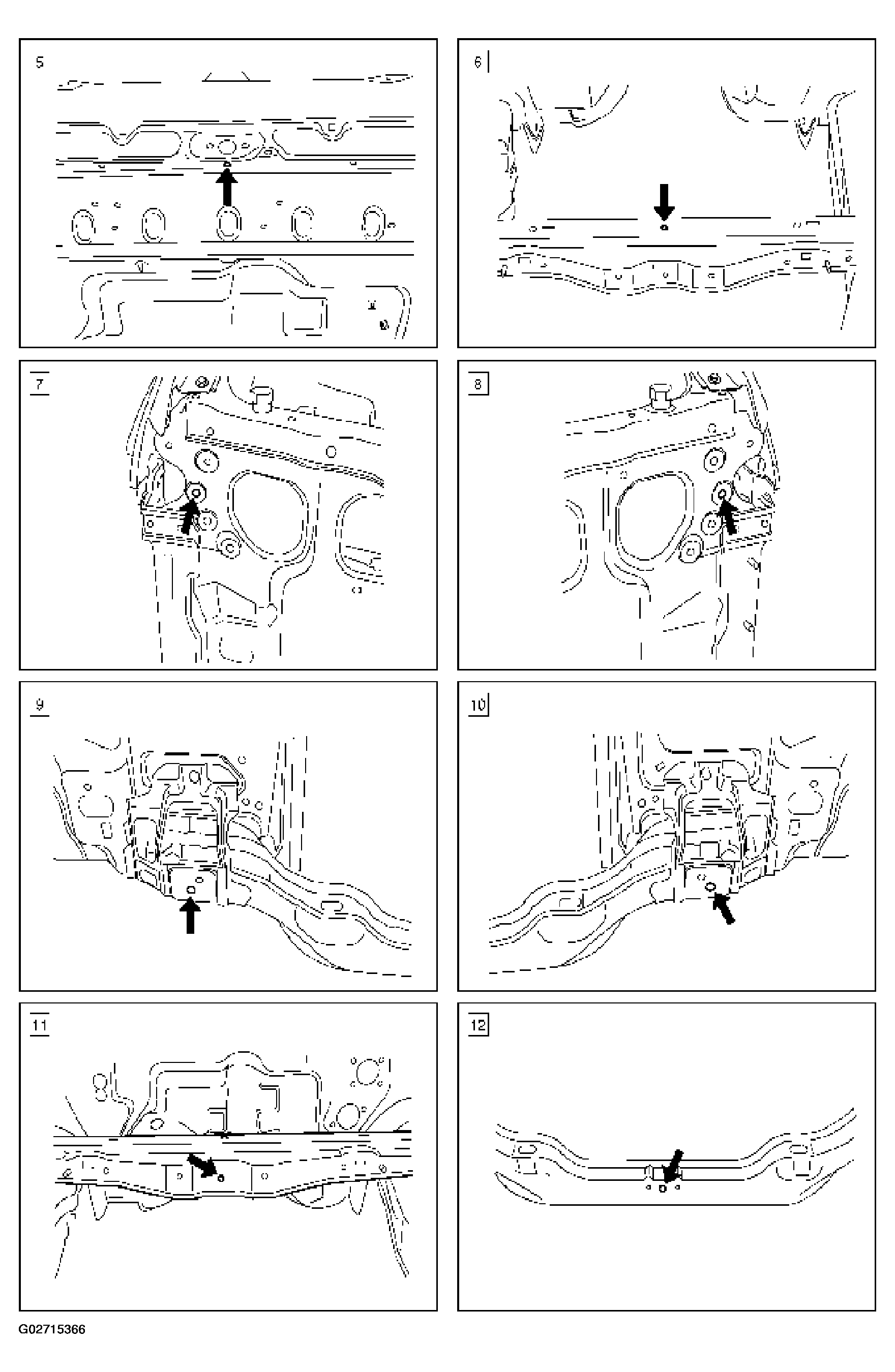

Fig 2: Identifying Body Dimension Front Section (2 Of 3)
G02715366Courtesy of ISUZU MOTOR CO.
Fig 3: Identifying Body Dimension Front Section (3 Of 3)
G02809070Courtesy of ISUZU MOTOR CO.
