Home >> Isuzu >> 2003 >> Axiom Base, RWD >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Brake Switch >> Removal

Brake Switch: Removal

  1. Disconnect connector (1). See Fig 1 .
  2. Remove lock nut (3).
  3. Remove switch (2).

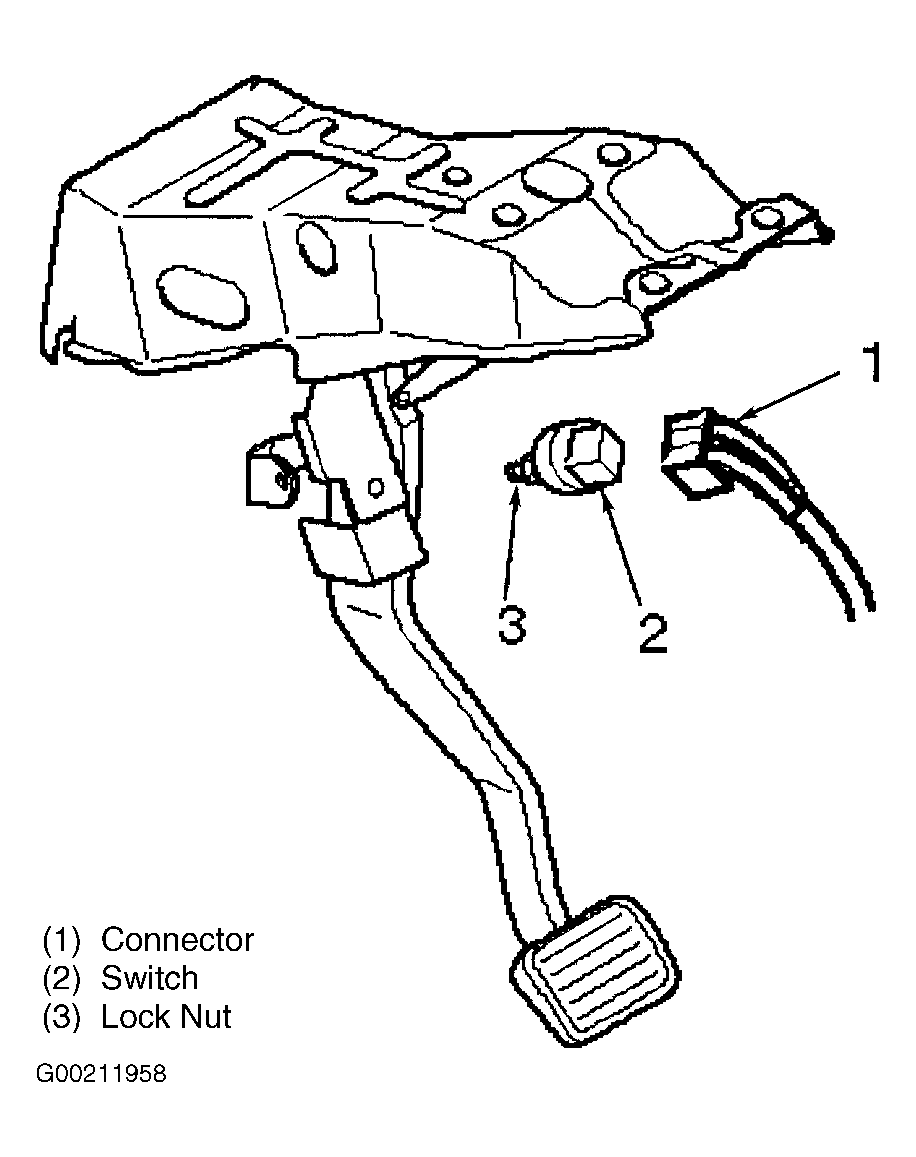

    Fig 1: Removing Brake Switch
    G00211958Courtesy of ISUZU MOTOR CO.
