Brake Switch: Adjustment

  1. Check that the brake pedal (3) is fully returned by pedal return spring.
  2. Disconnect the switch connector.
  3. Loosen the lock nut (2).
  4. Rotate the brake switch (1) by hand until push rod disappears from brake switch tip (4).

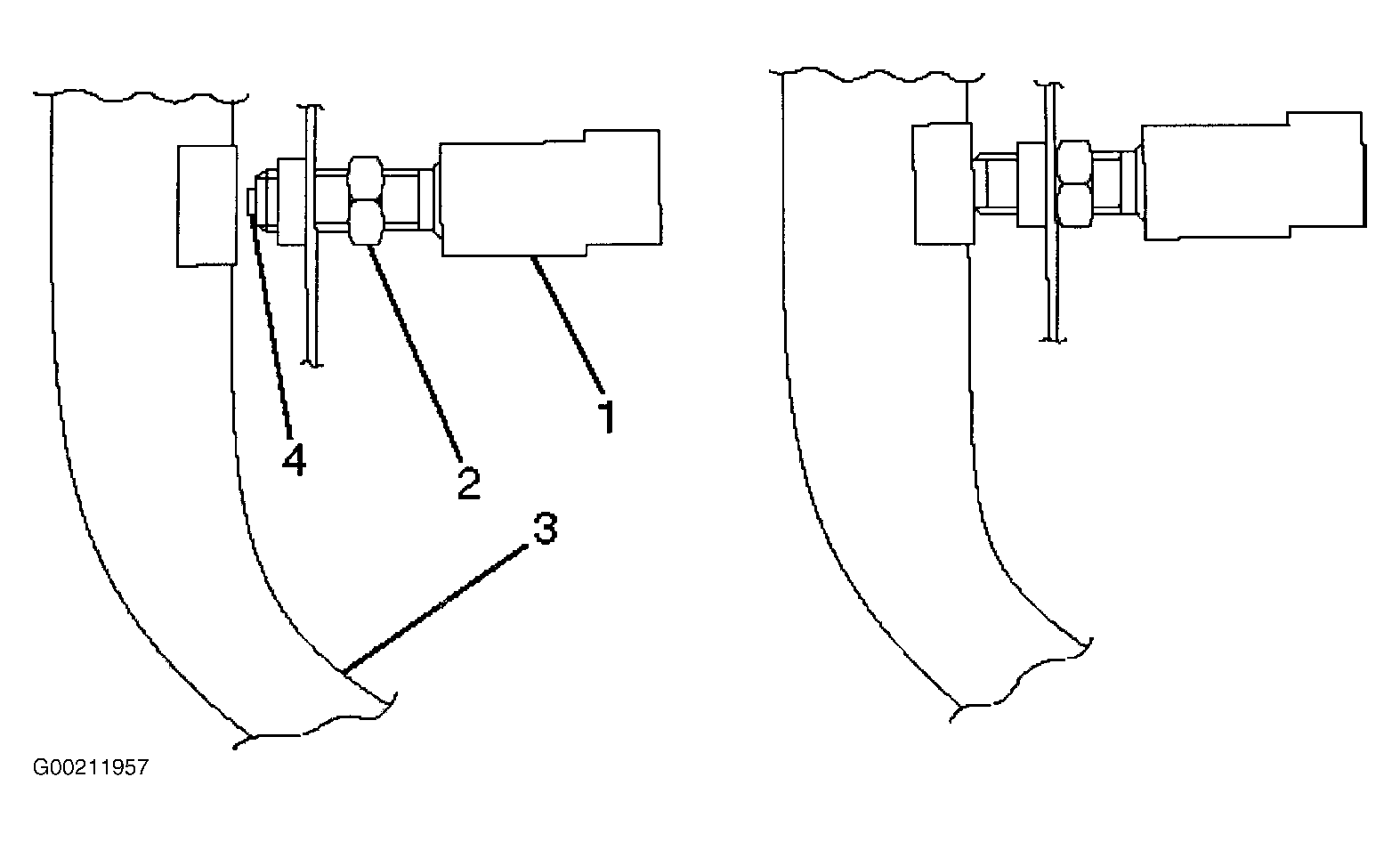

    5. Fig 1: Checking Brake Pedals Adjustment
    G00211957Courtesy of ISUZU MOTOR CO.
  5. Return the brake switch by a half turn.
  6. Tighten the lock nut.
  7. Connect the switch connector.
