Engine Cooling: Radiator: Installation: Notes

1. Install rubber cushions on both sides of radiator bottom.
2. Install radiator assembly with hose, taking care not to damage the radiator core with a fan blade.
3. Connect reserve tank hose (4).
4. Install lower fan guide (3).
5. Connect radiator inlet hose and outlet hose to the engine.
6. Connect oil cooler hose (1) to automatic transmission.

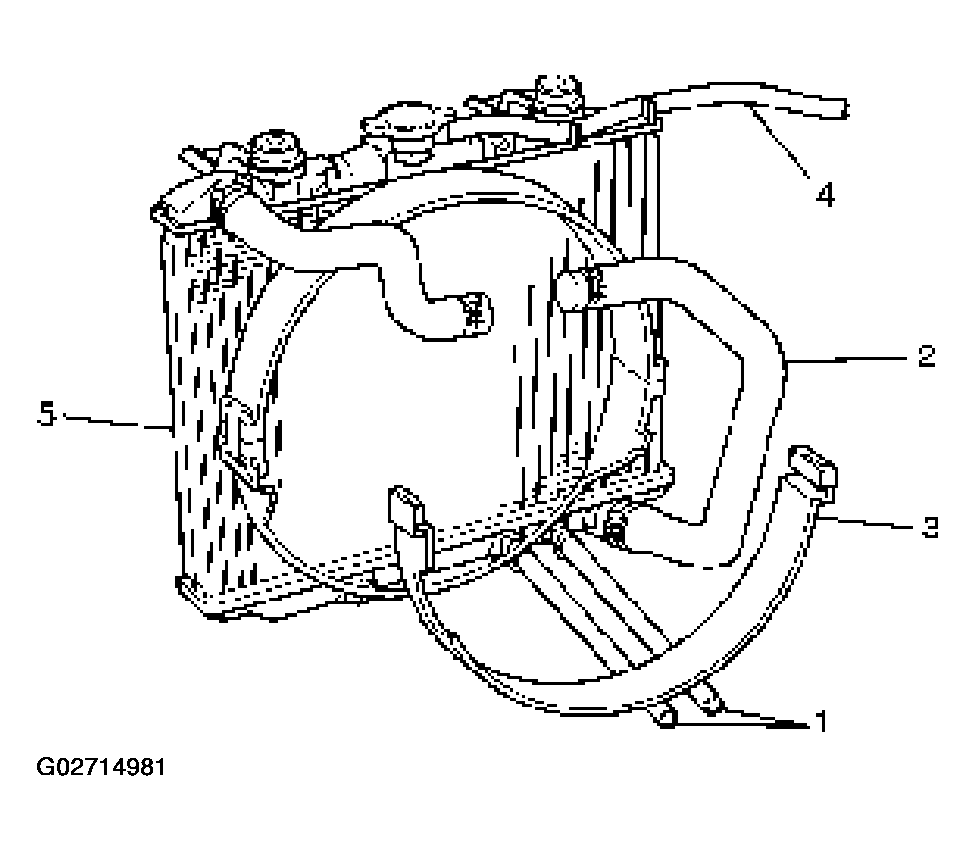

   Fig 1: Installing Radiator Assembly With Hoses

   Courtesy of ISUZU MOTOR CO.
7. Connect battery ground cable.
8. Pour engine coolant up to filler neck of radiator, and up to MAX mark of reserve tank.

Fig 2: Filling Engine Coolant To Filler Neck Of Radiator

Courtesy of ISUZU MOTOR CO.

Important operation (in case of 100% engine coolant change) procedure for filling with engine coolant.
