Trouble Diagnosis Depending On The Status Of Tod Indicator: Notes
Functional check with TOD indicator light is conducted prior to check on Charts A-H.

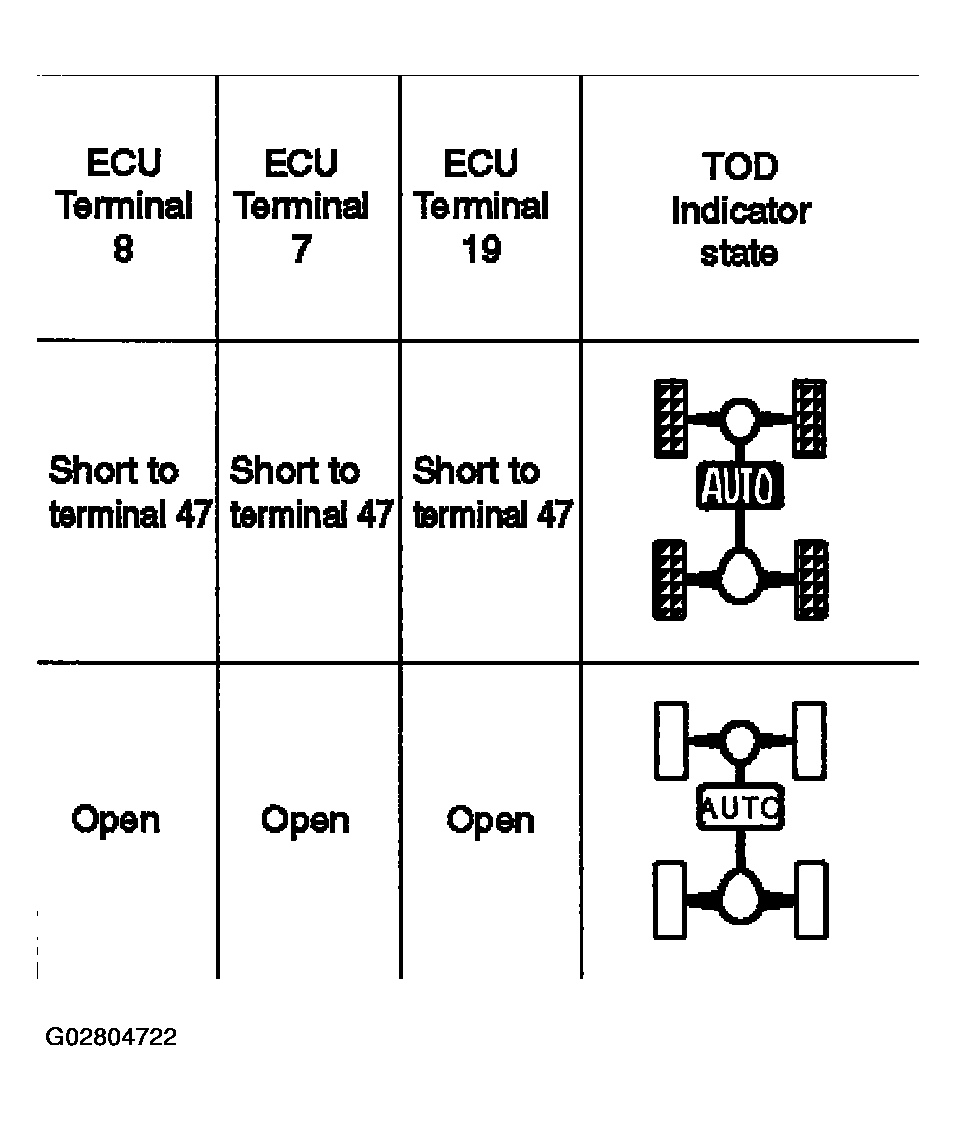

- After the starter is switched on, check and see if the status has become as tabulated below.
- If the status is as tabulated above, there is no problem. If not as tabulated above, inspect the harness.
