Chart H: Lighting Switch Circuit

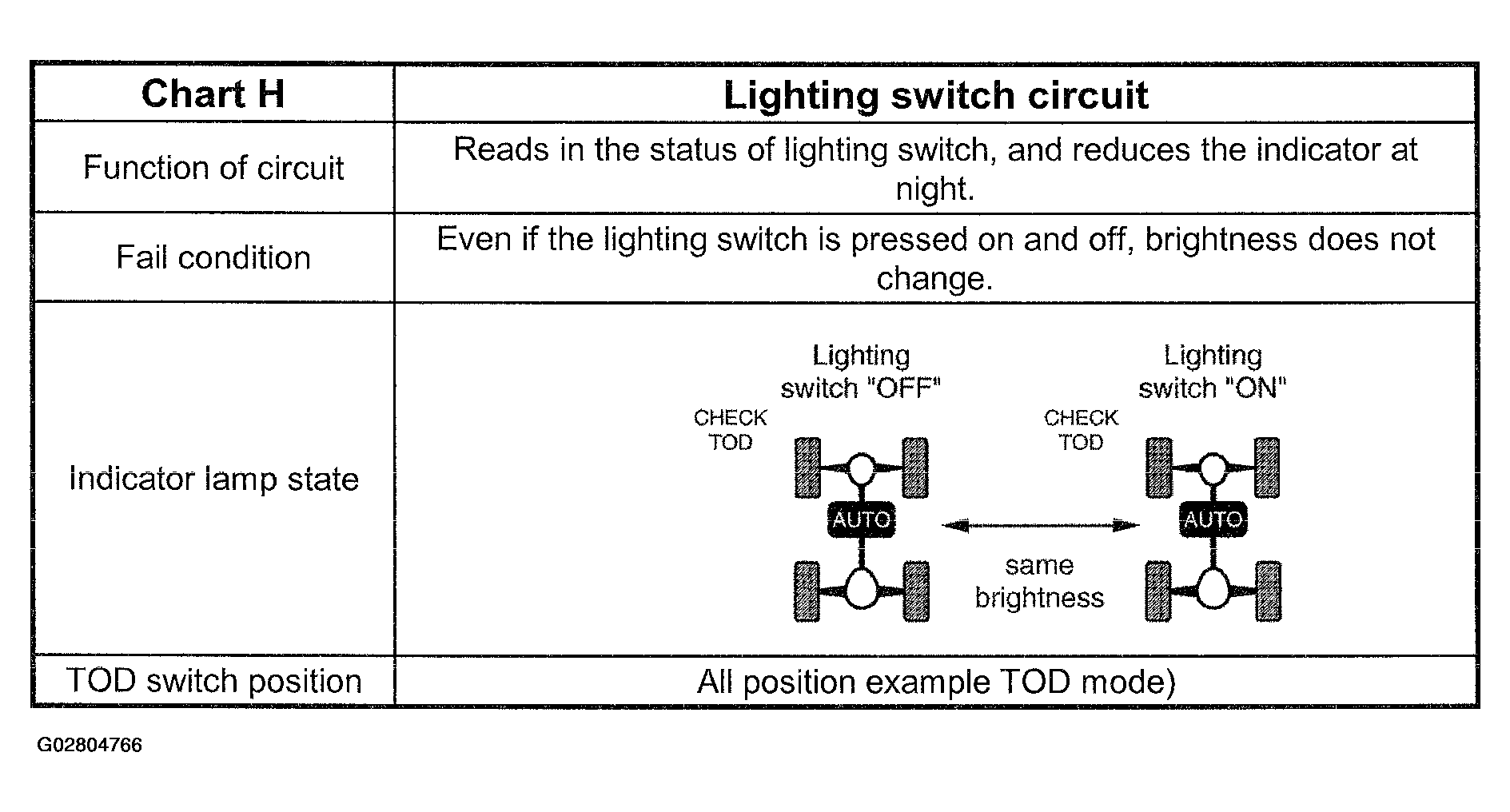

Fig 1: Describing Function Of Circuit & Failure Condition: Lighting Switch Circuit (Chart H)
G02804766Courtesy of ISUZU MOTOR CO.

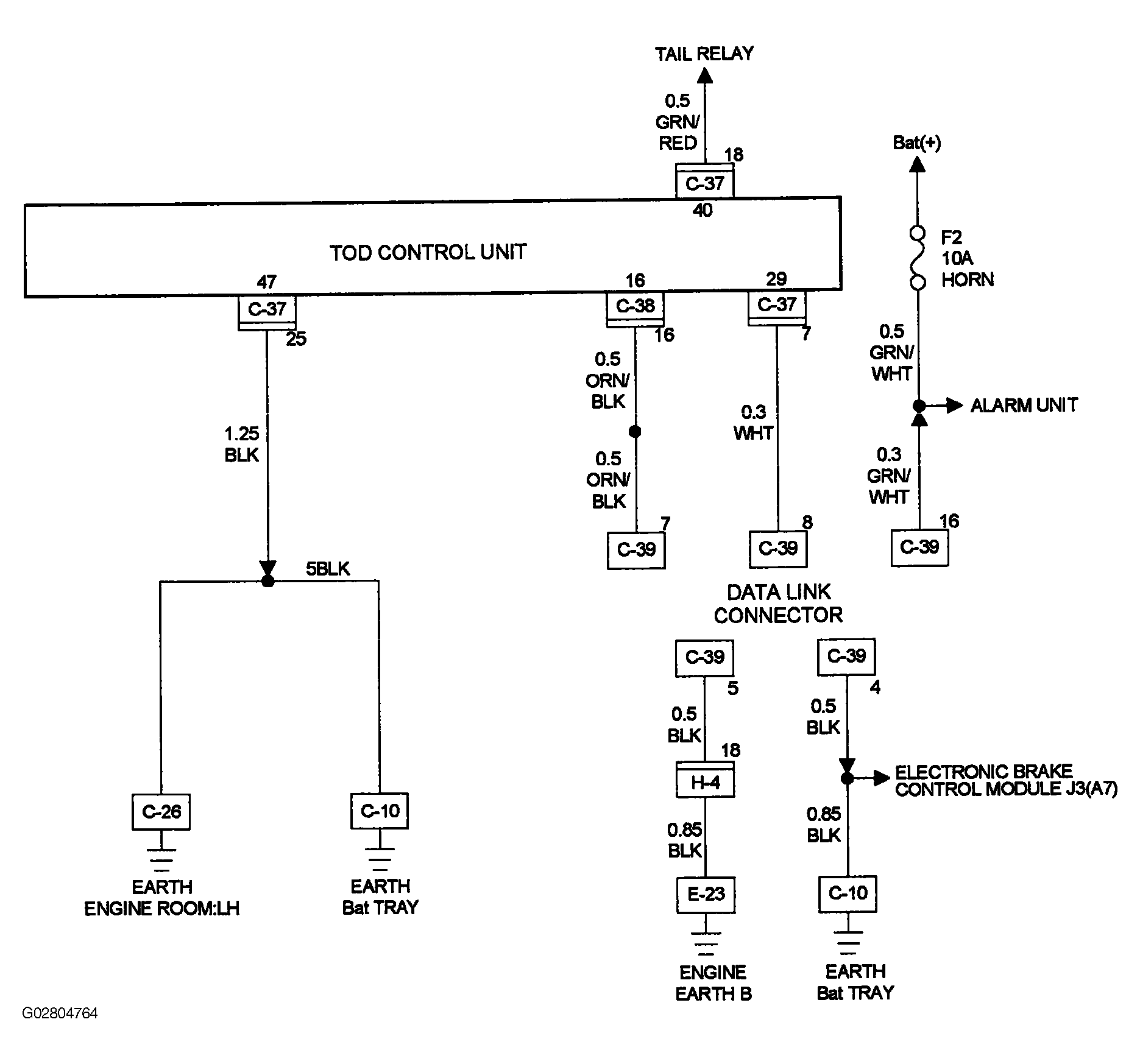

Fig 2: TOD Control Unit Circuit Diagram (Chart H)
G02804764Courtesy of ISUZU MOTOR CO.

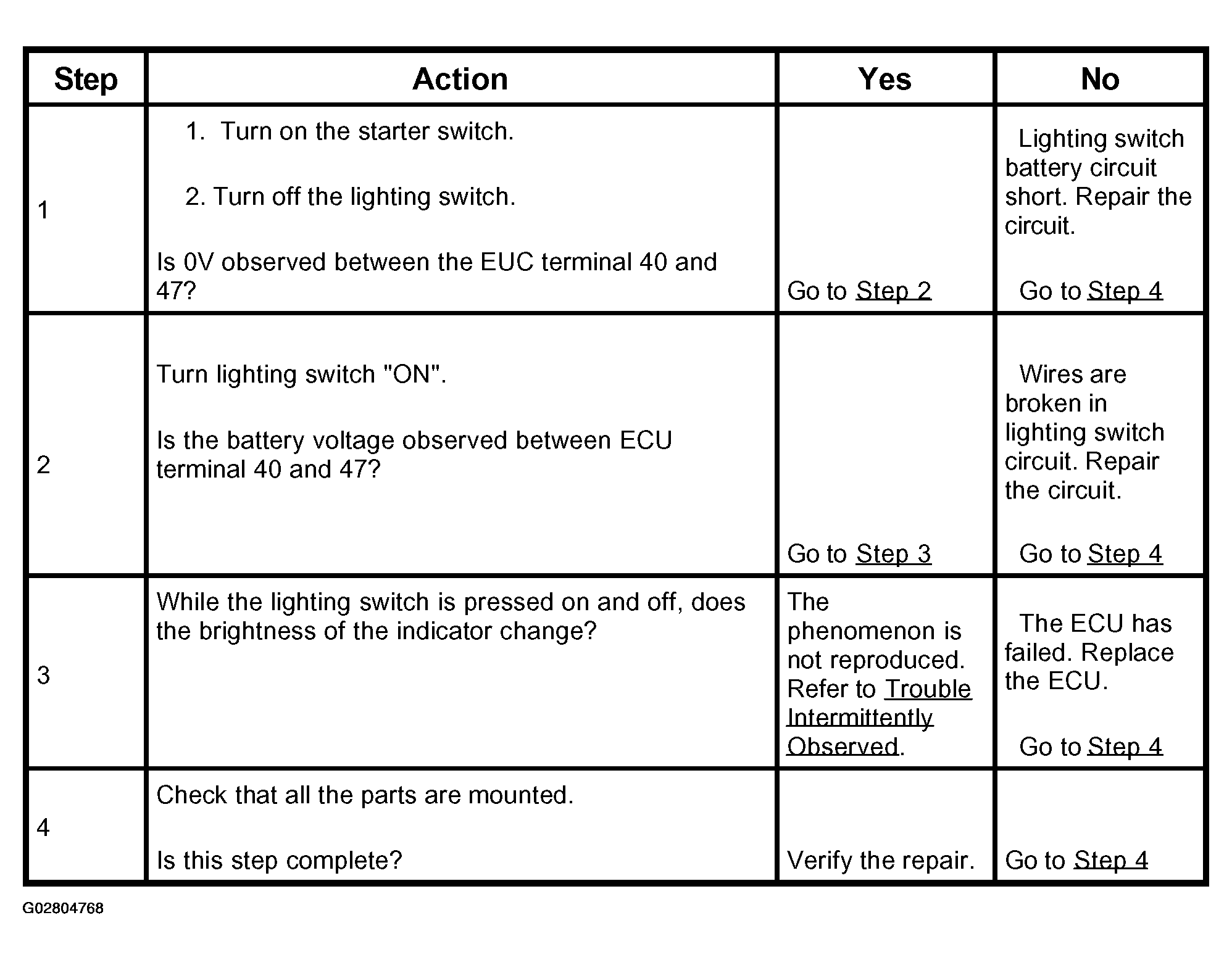

Fig 3: TOD Control Unit Voltage Diagnostic Procedure (Chart H)
G02804768Courtesy of ISUZU MOTOR CO.
