Indication During Transition of Shift Rod
When the TOD switch is turned, and the signals from the AXLE switch do not comply with the signal conditions of the 4H and 4L switch, the indicator lamp state selected on the TOD switch and light-off mode are repeatedly output at an interval of 1.0 second.
NOTE:
After the TOD switch is turned to the specified position and the AXLE switch generates compliant signals, the normal output status is returned.

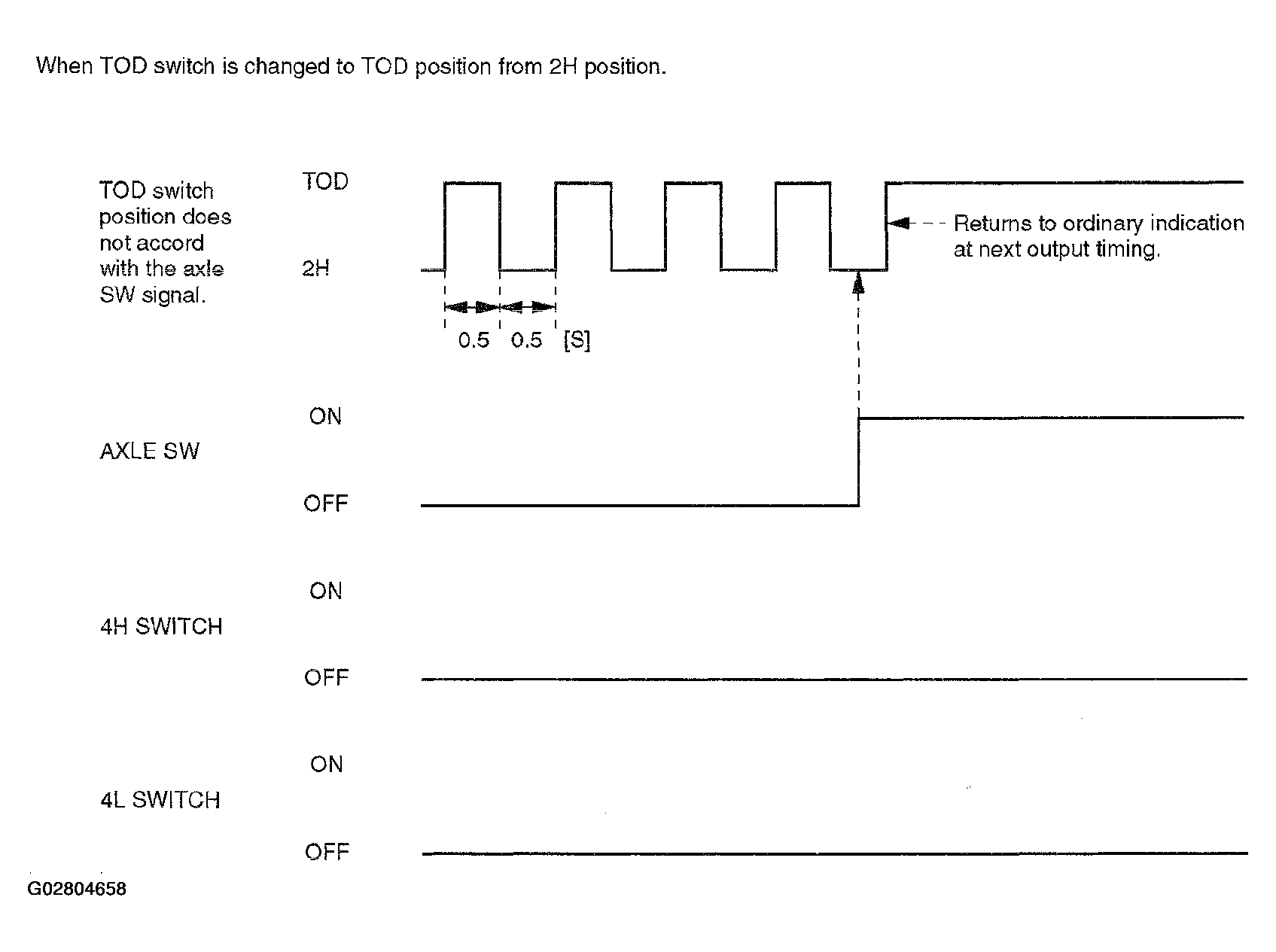

When TOD switch is changed to TOD position from 2H position.
