Trouble Code: 32 / P1761 - Check Flow 11

TROUBLE CODE: 32 / P1761 - ON/OFF LINE OF SHIFT ON FLY SYSTEM BROKEN

Check Flow Trouble Code Phenomenon Standard
11 32 (P1761) The on/off signal (ADC) line of the shift on the fly system (front axle disconnect) is broken, or the line is short - circuited to the battery. ___
NOTE: The on/off signal line of the shift on the fly system is broken, or the line is short-circuited to the battery.

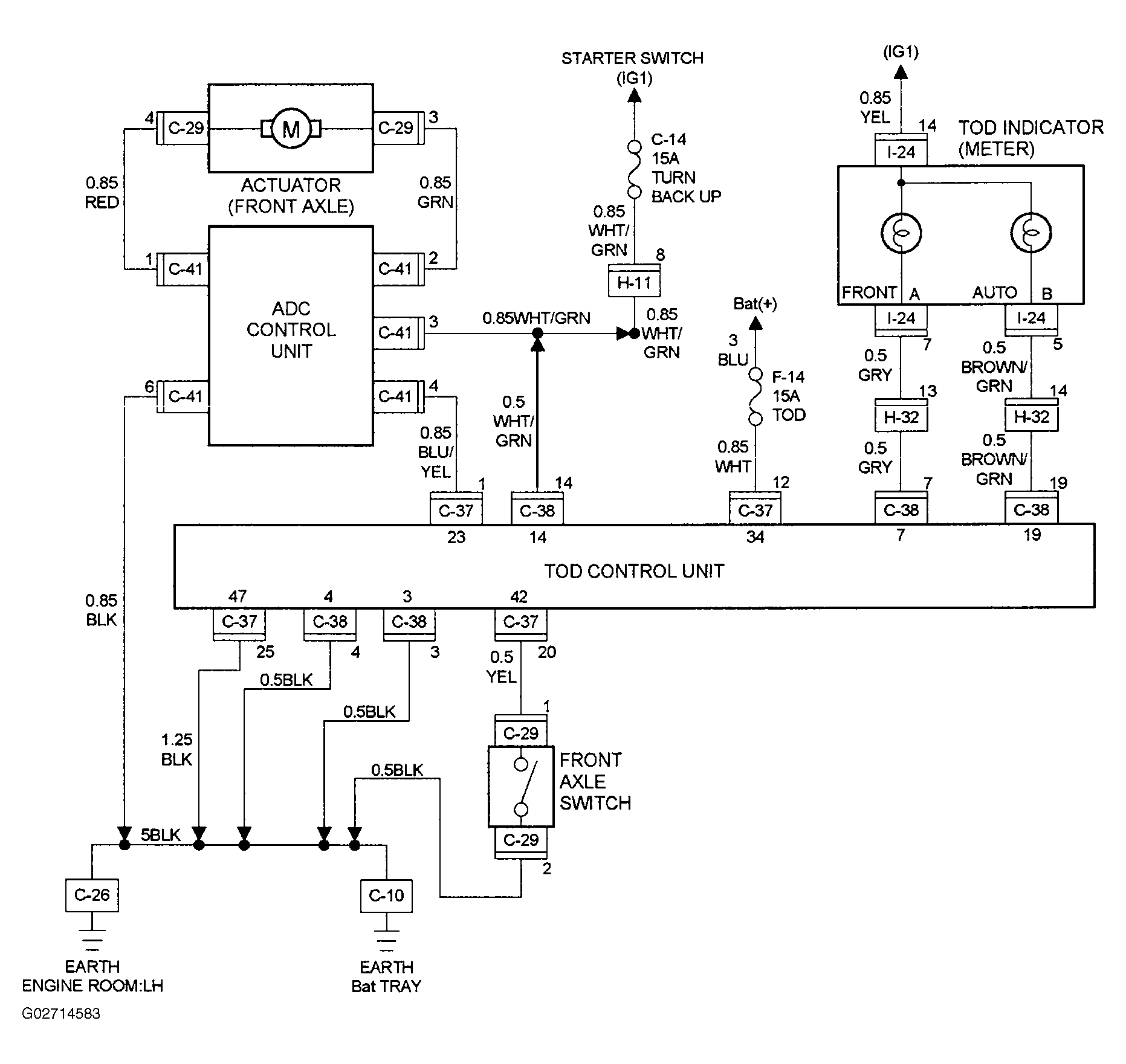

Fig 1: Trouble Code P1761, TOD Control Unit Circuit Diagram - On/Off Line Of Shift On Fly System
G02714583Courtesy of ISUZU MOTOR CO.

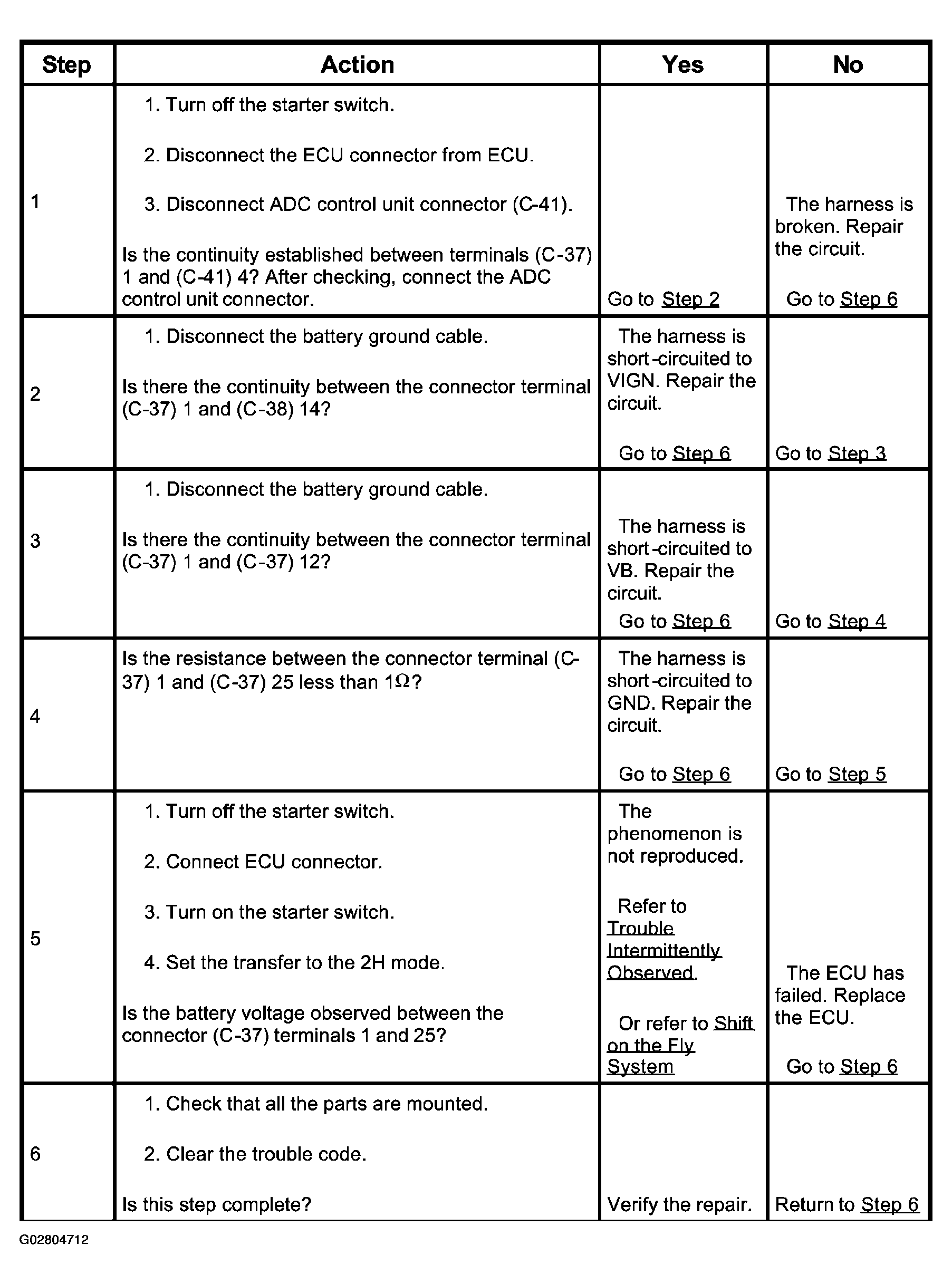

Fig 2: Trouble Code P1761, Diagnostic Procedure Chart - On/Off Line Of Shift On Fly System Broken
G02804712Courtesy of ISUZU MOTOR CO.
