Chart 4: Braking Distance Gets Long While ABS Active

BRAKING DISTANCE GETS LONG WHILE ABS ACTIVE (CHART 4)

Chart 4	Braking Distance Gets Long Even When The ABS Is Active
Function of circuit	___
Fail condition	Enough deceleration is not obtained and the braking distance gets long even when the ABS is active in the 2H mode.

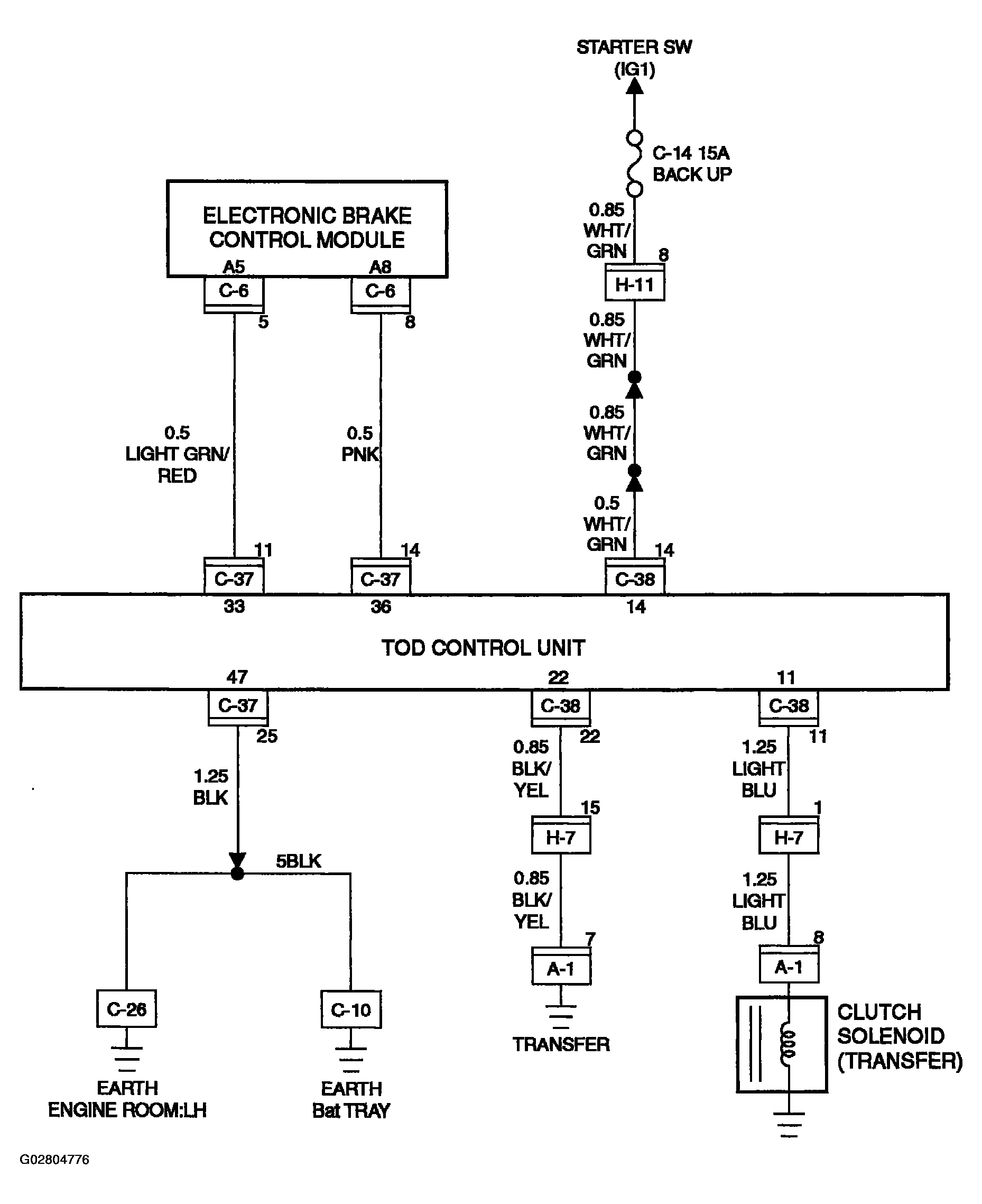

Fig 1: TOD Control Unit Circuit Diagram (Chart 4)

Courtesy of ISUZU MOTOR CO.

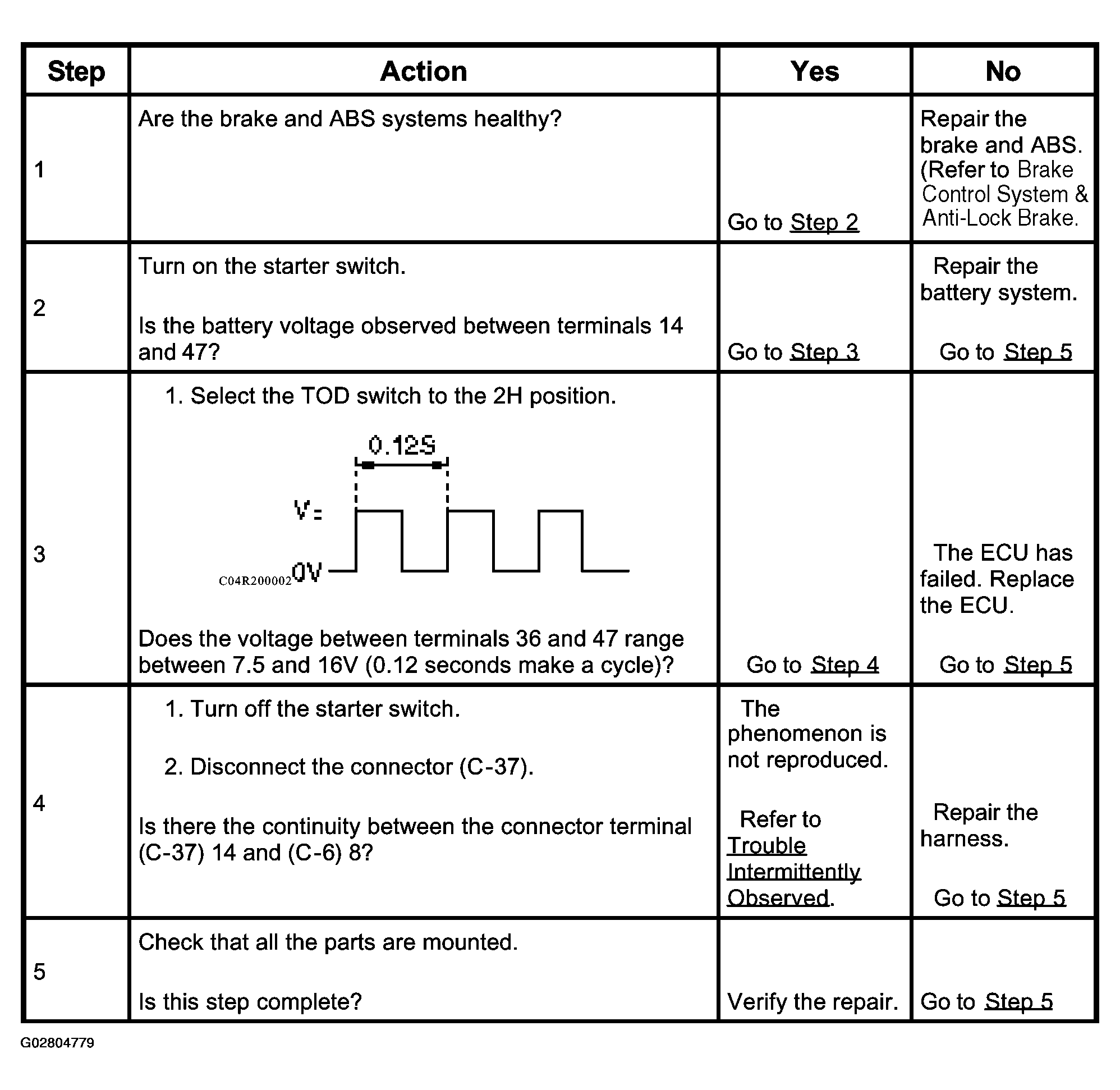

Fig 2: Symptom Diagnostic Procedure (Chart 4)

Courtesy of ISUZU MOTOR CO.
