Transmission and Associated Parts: Removal: Notes

1. Disconnect battery ground cable.
2. Remove transfer protector (4x4) and fairing plate.

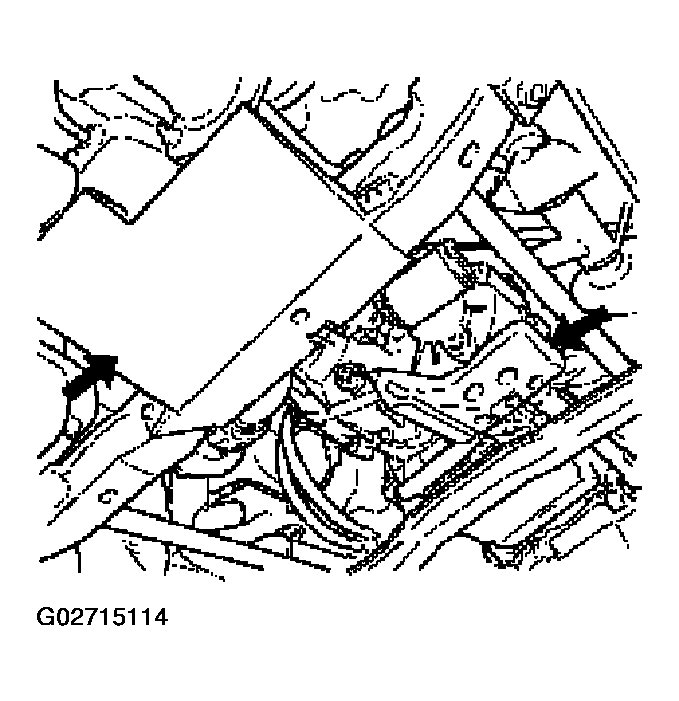

   Fig 1: Removing Transfer Protector (4X4) And Fairing Plate

   Courtesy of ISUZU MOTOR CO.
3. Remove rear propeller shaft and front propeller shaft (4x4).
   NOTE: Apply alignment marks on the flange at both front and rear sides.
   Fig 2: Removing Rear Propeller Shaft (4X4)

   Courtesy of ISUZU MOTOR CO.

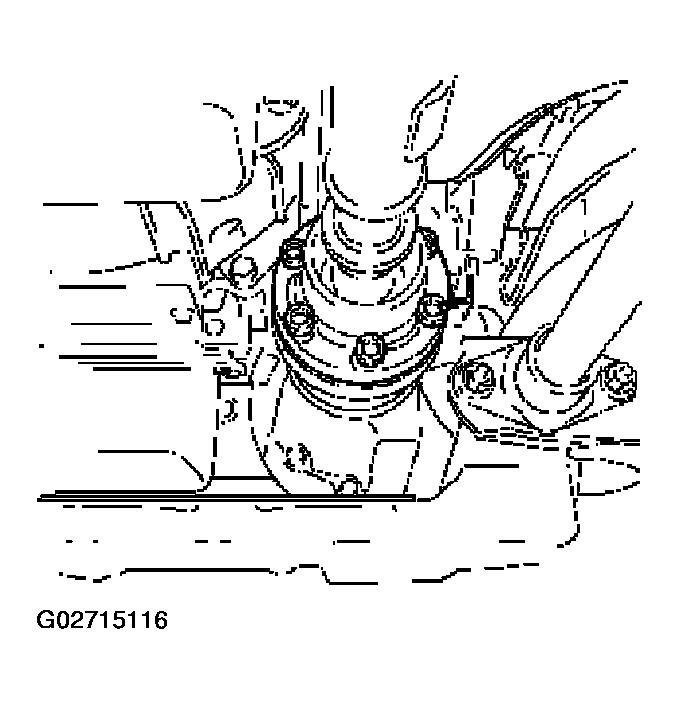

   Fig 3: Removing Front Propeller Shaft (4X4)

   Courtesy of ISUZU MOTOR CO.
4. Remove center exhaust pipe (4x4).
5. Remove fuel pipe heat protector and clip from third crossmember.
6. Disconnect fuel pipe bracket from third crossmember.
   Fig 4: Disconnecting Fuel Pipe Bracket From Third Crossmember

   Courtesy of ISUZU MOTOR CO.
7. Disconnect fuel pipe bracket from transmission side.

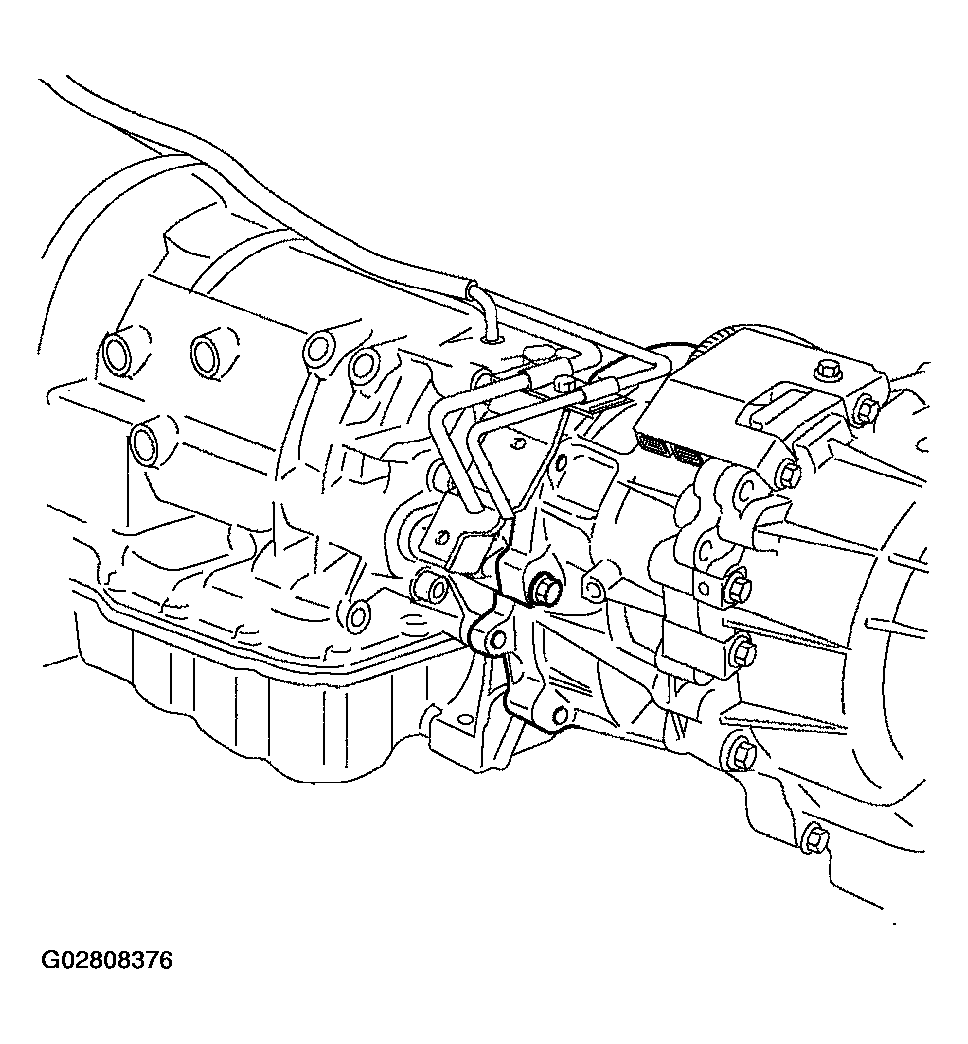

Fig 5: Disconnecting Fuel Pipe Bracket From Transmission Side (4x4)

Courtesy of ISUZU MOTOR CO.

Fig 6: Disconnecting Fuel Pipe Bracket From Transmission Side (4x4)

Courtesy of ISUZU MOTOR CO.

Fig 7: Disconnecting Fuel Pipe Bracket From Transmission Side (4x2)

Courtesy of ISUZU MOTOR CO.
