Transmission and Associated Parts: Notes

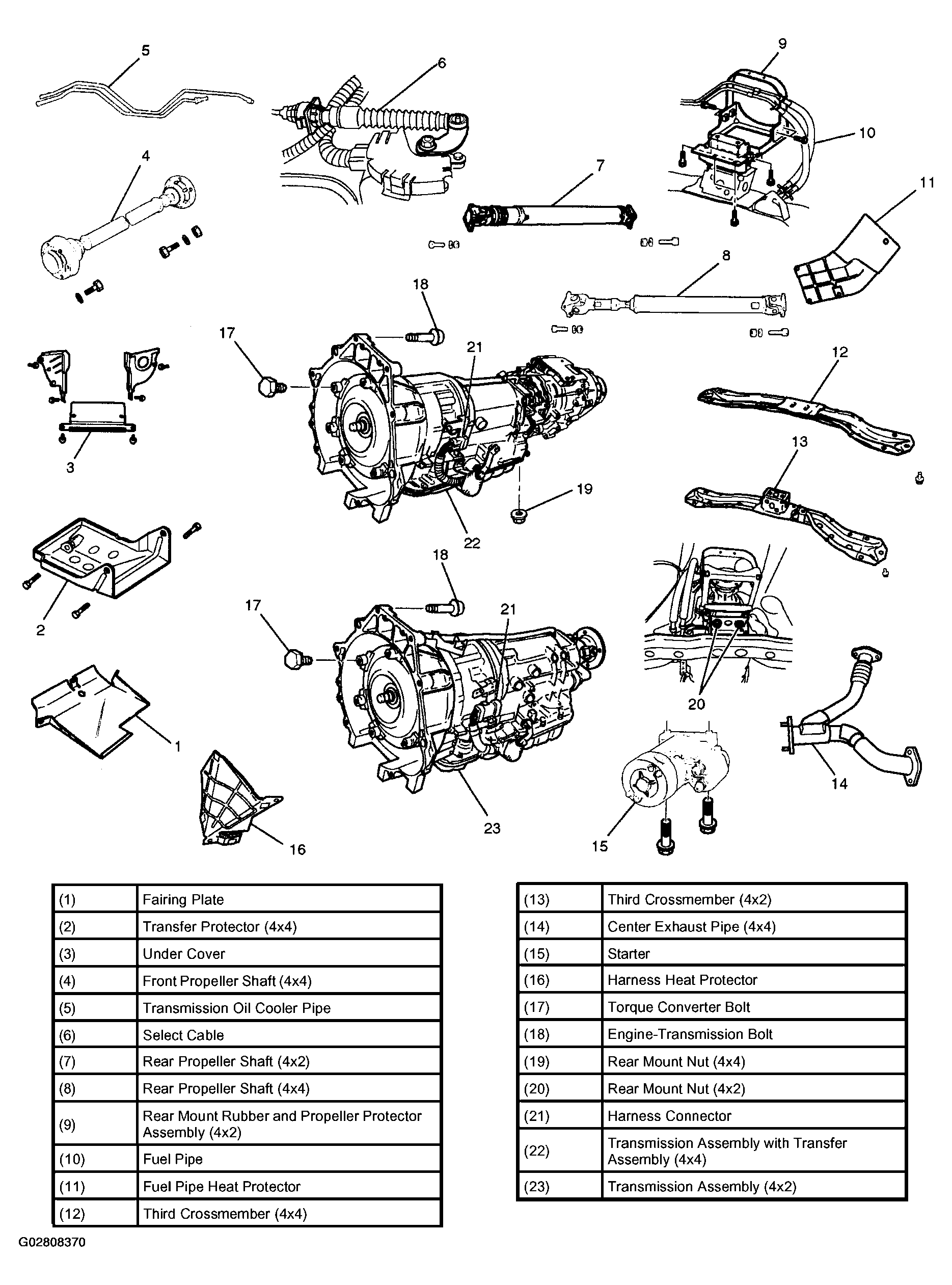

Fig 1: Identifying Transmission And Associated Parts

G02808370

Courtesy of ISUZU MOTOR CO.
