Home >> Isuzu >> 2003 >> Axiom Base, 4WD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Shift Speed Chart >> "Power mode" >> Upshift

"Power mode": Upshift

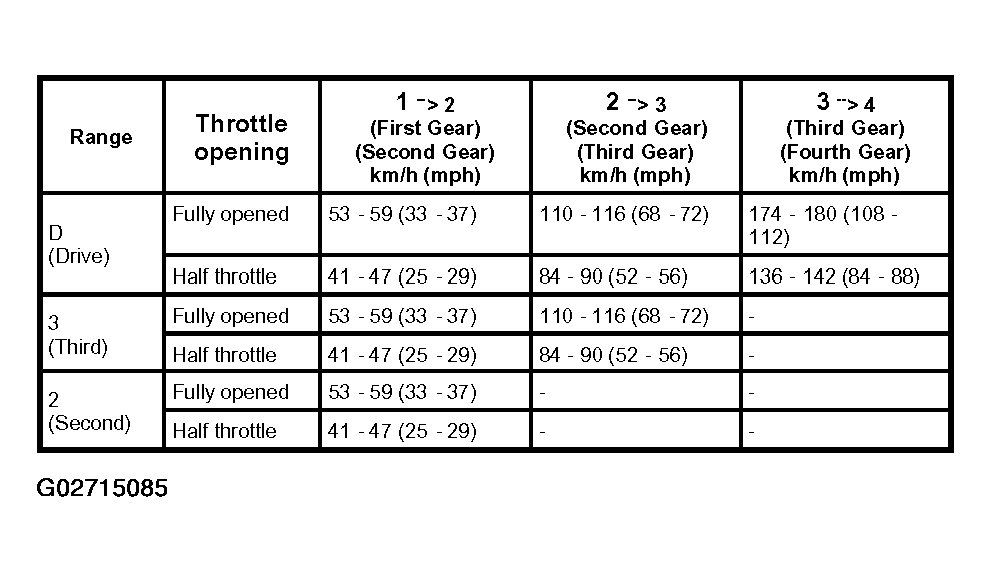

Fig 1: "Power Mode" - Upshift Chart

G02715085

Courtesy of ISUZU MOTOR CO.
