Home >> Isuzu >> 2003 >> Axiom Base, 4WD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Shift Speed Chart >> "Power mode" >> Downshift

"Power mode": Downshift

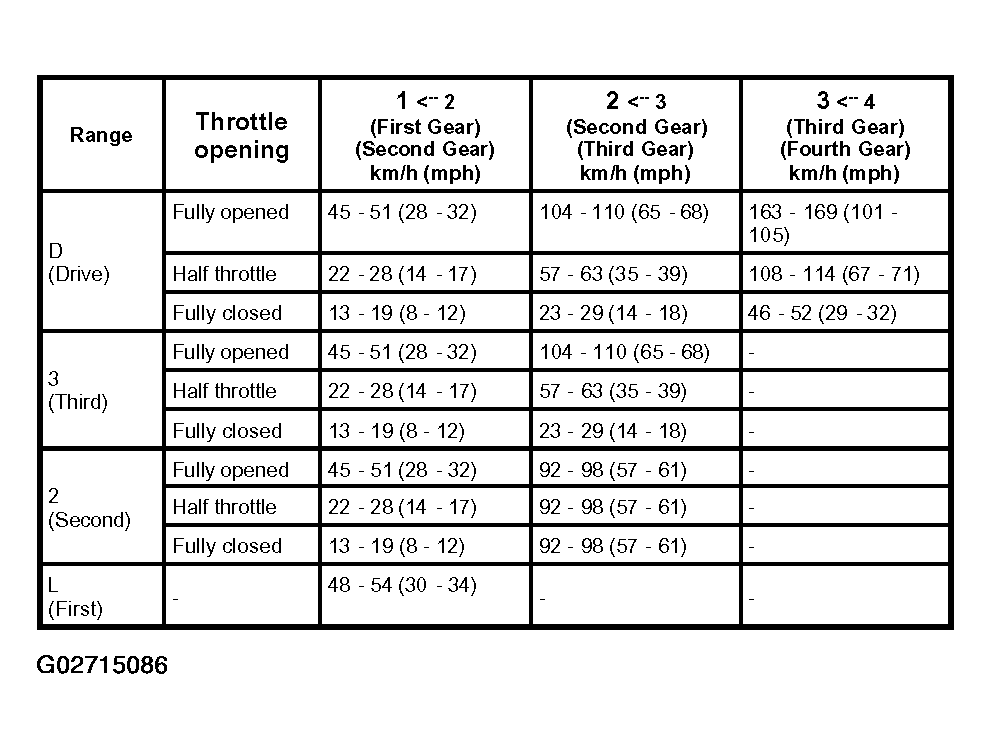

Fig 1: "Power Mode" - Downshift Chart

G02715086

Courtesy of ISUZU MOTOR CO.
