Home >> Isuzu >> 2003 >> Axiom Base, 4WD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> Second Clutch >> Disassembled View

Disassembled View

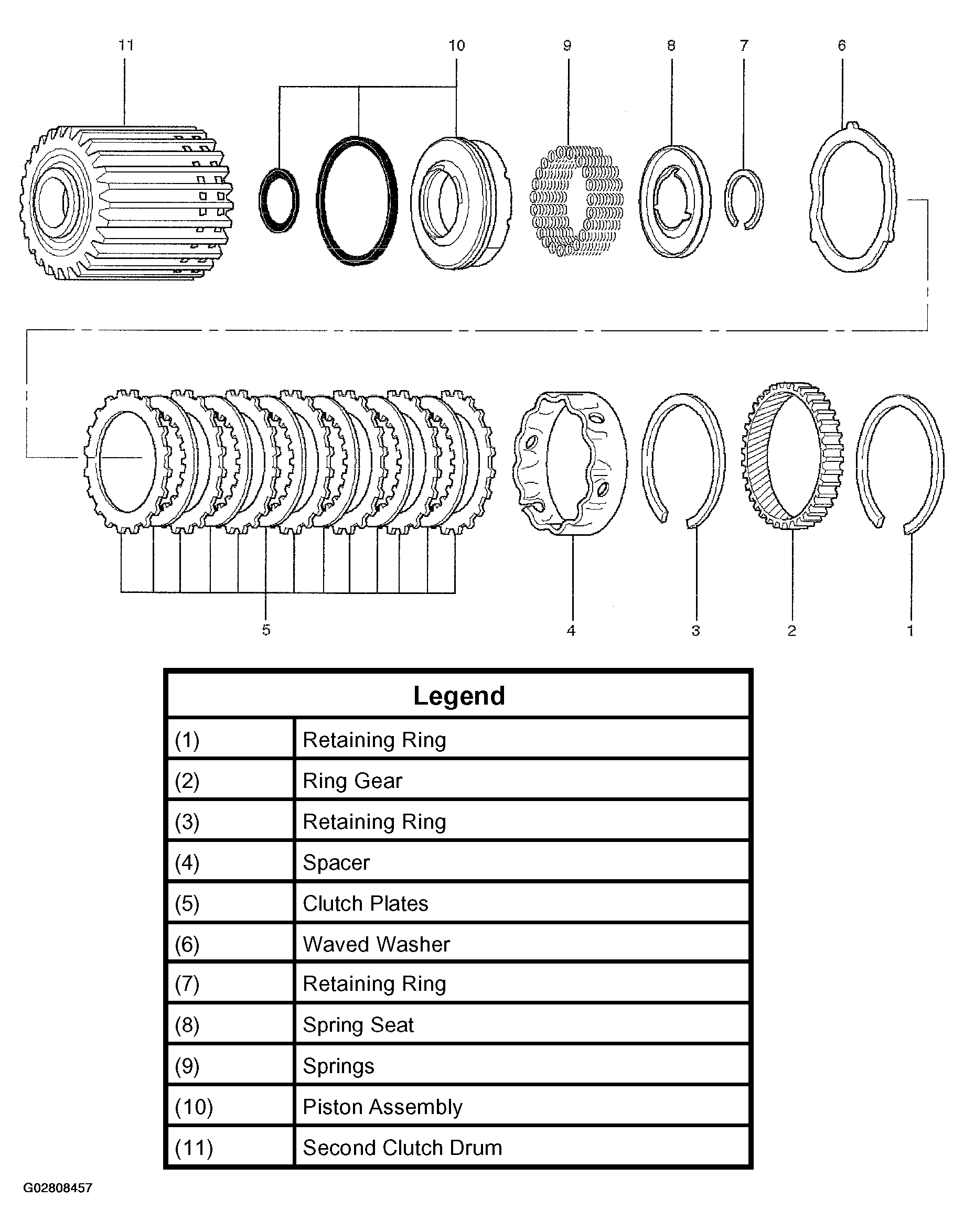

Fig 1: Disassembled View Of Second Clutch

G02808457

Courtesy of ISUZU MOTOR CO.
