Automatic Transmission
>>
4L30-E Parts List
>>
Internal Components
Internal Components

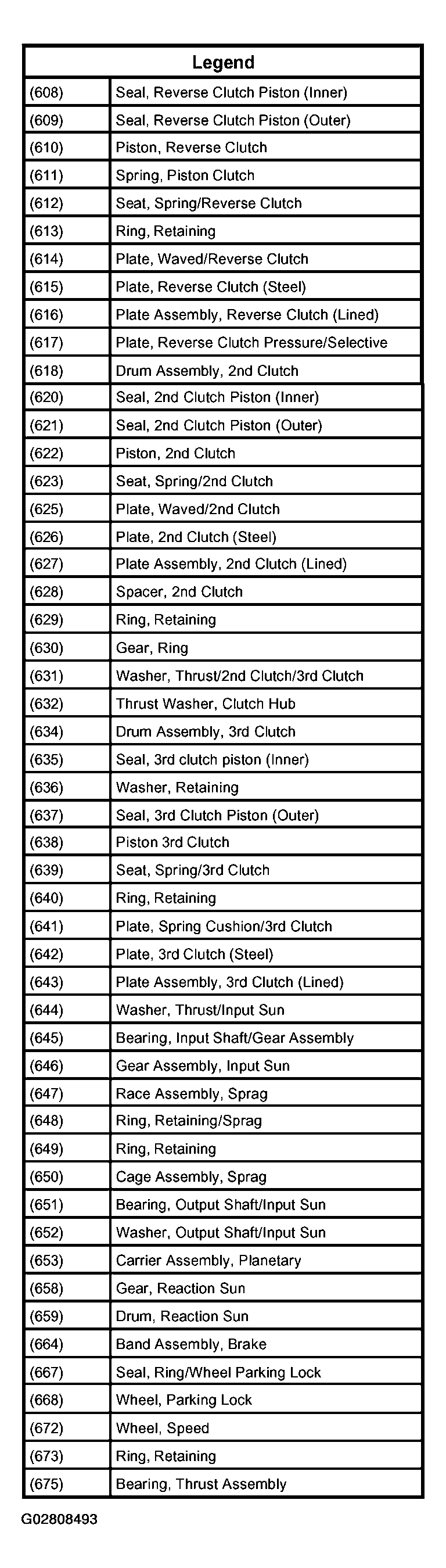

Fig 1: Internal Components (1 Of 2)
Courtesy of ISUZU MOTOR CO.

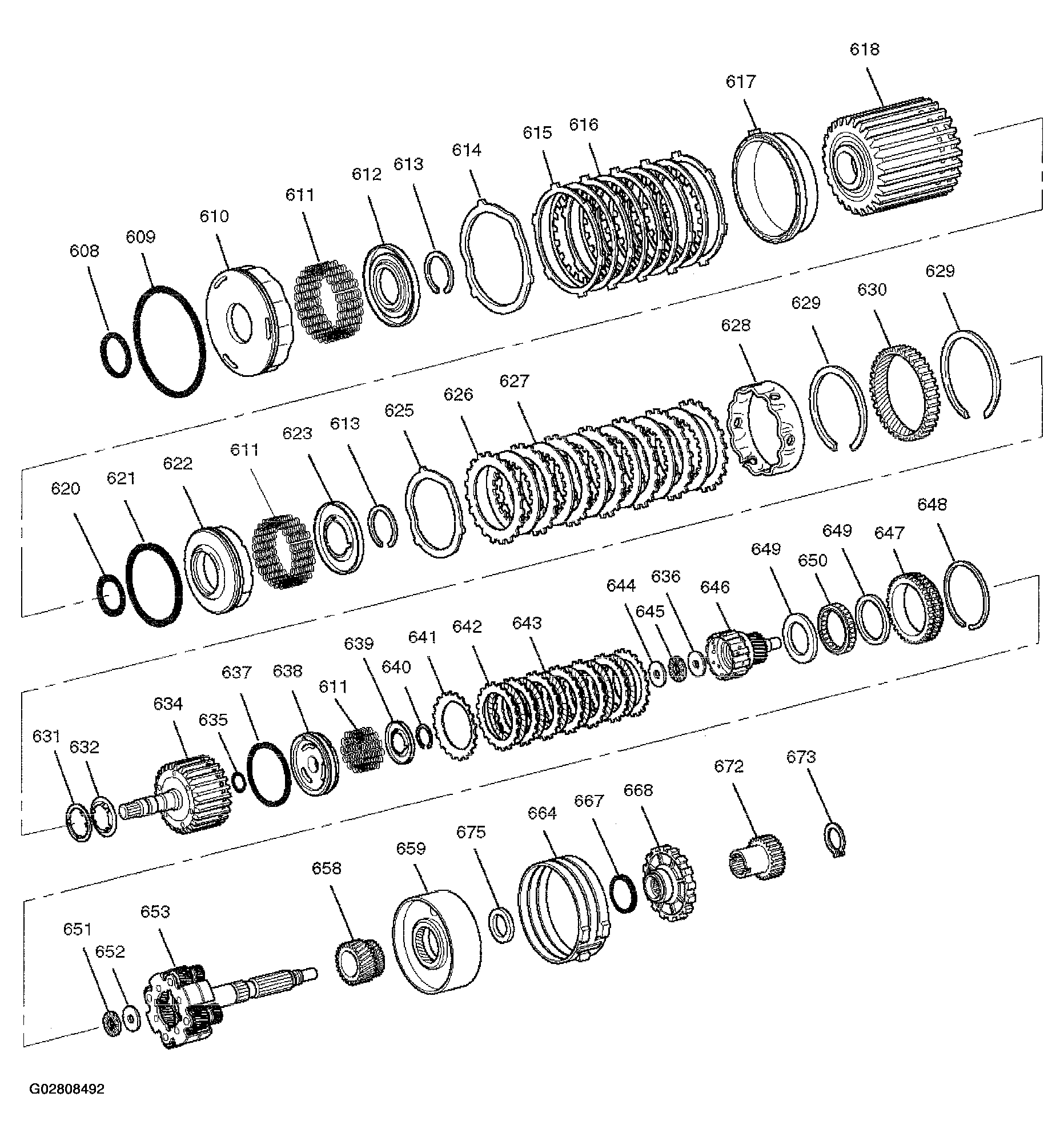

Fig 2: Internal Components (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
