3-4 Accumulator Piston: Reassembly

  1. Place the J-38553 piston fitter into adaptor case and push the piston into position, using suitable diameter tube.
    • Remove the piston fitter.

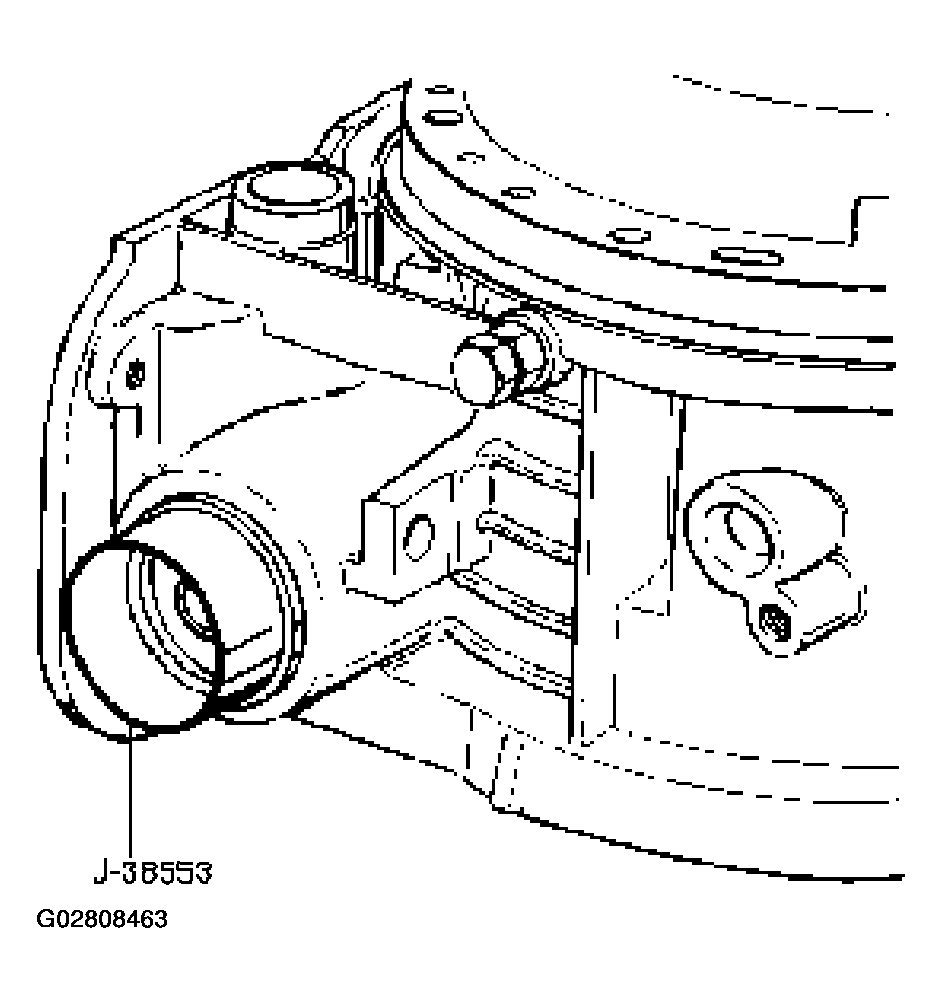

    Fig 1: Removing Piston Fitter
    G02808463Courtesy of ISUZU MOTOR CO.
  2. Install spring and cover.
  3. Install snap ring, using the J-38559-A compressor tool.
    • Install snap ring in groove.
    • Remove the compressor tool.

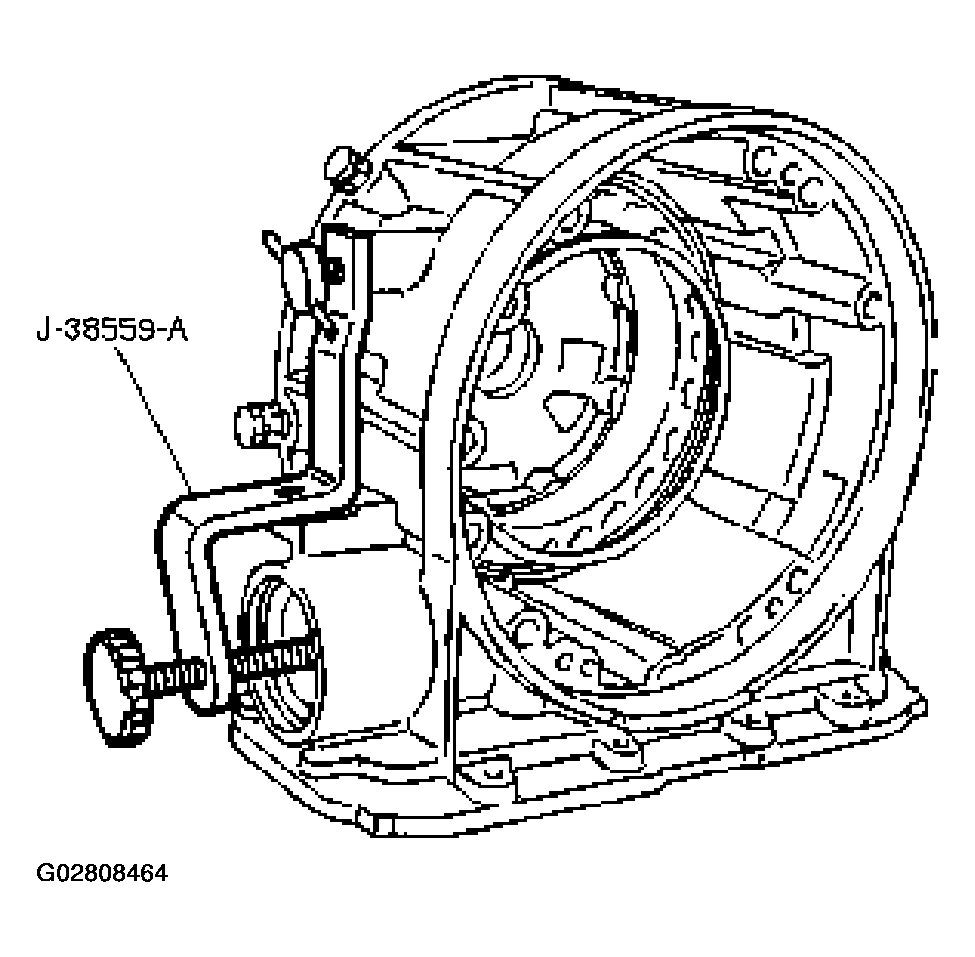

    Fig 2: Installing Snap Ring
    G02808464Courtesy of ISUZU MOTOR CO.
