Torque Specifications

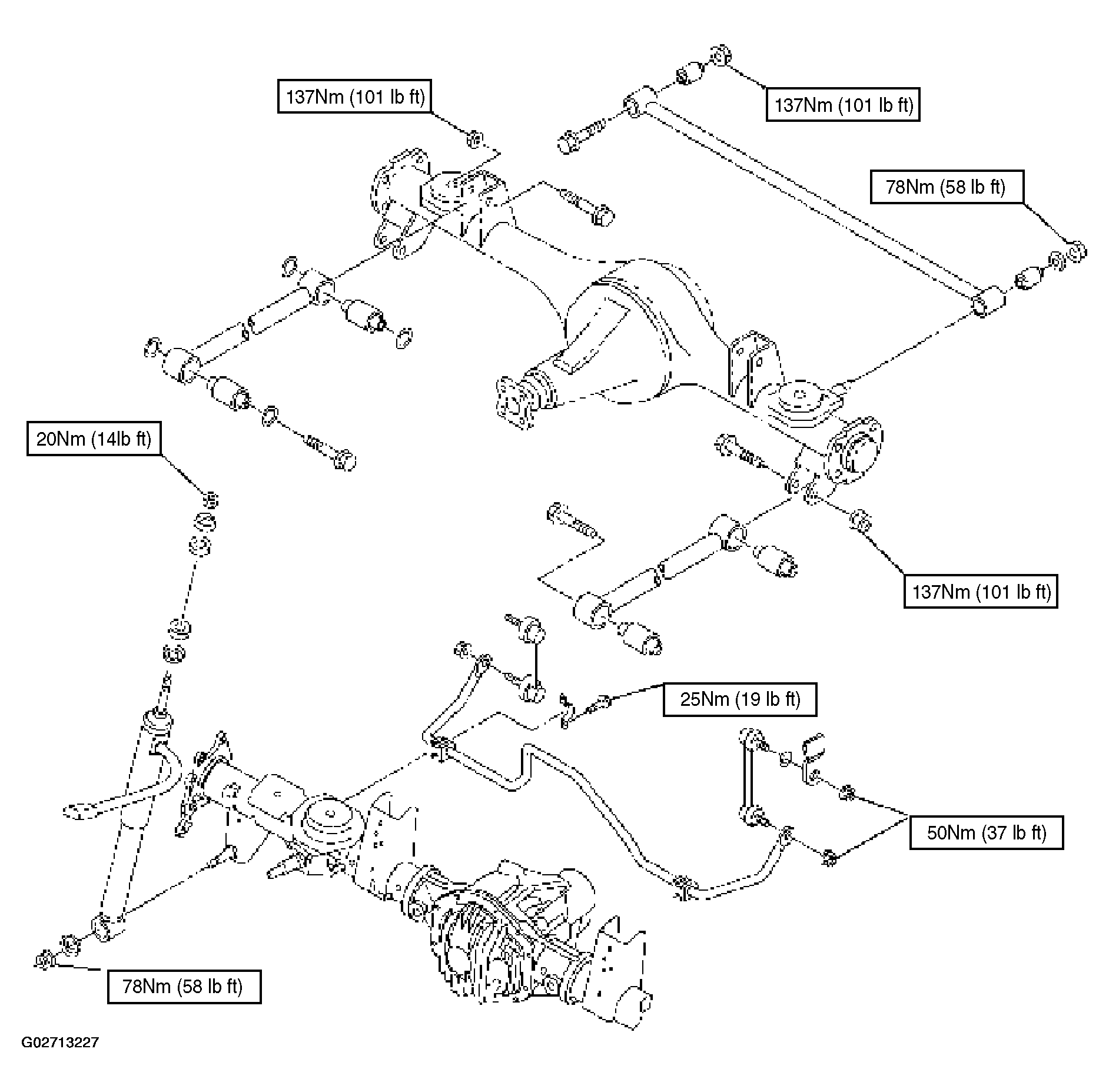

Fig 1: Rear Suspension Torque Specifications

G02713227

Courtesy of ISUZU MOTOR CO.
