General Specifications - Front End Alignment Inspection and Adjustment

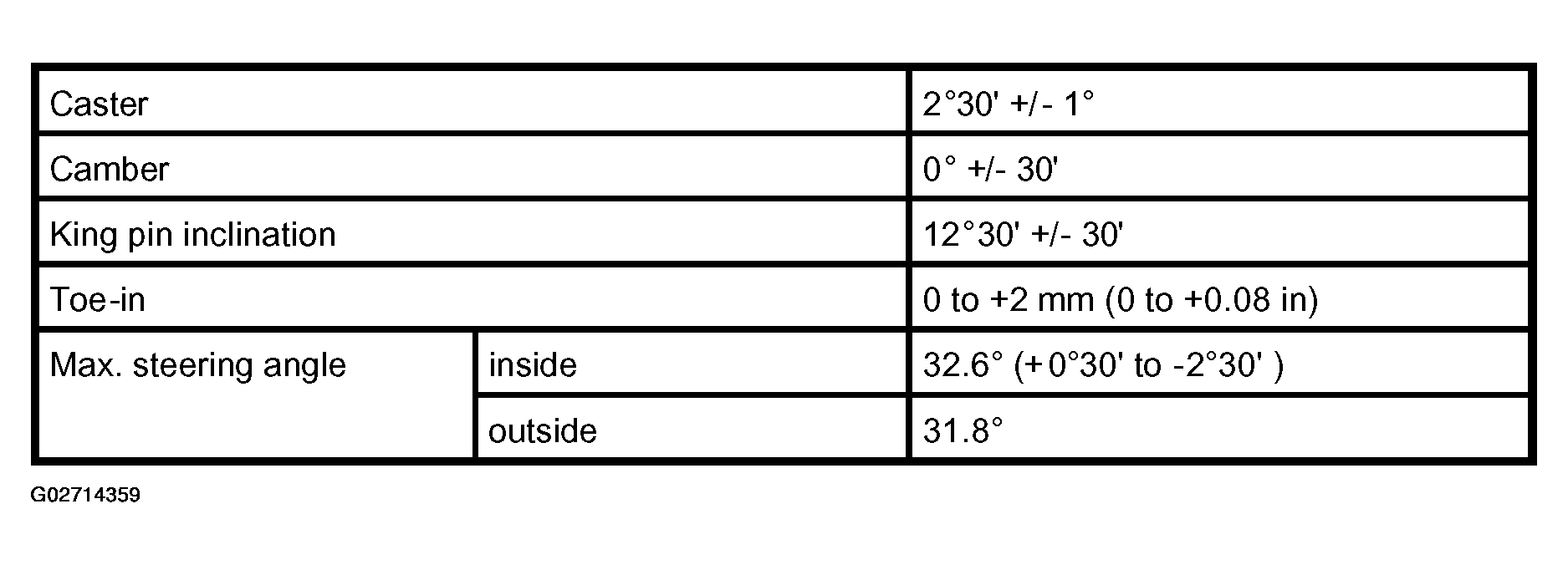

Fig 1: Specifications Chart

G02714359

Courtesy of ISUZU MOTOR CO.
