Torque Specifications

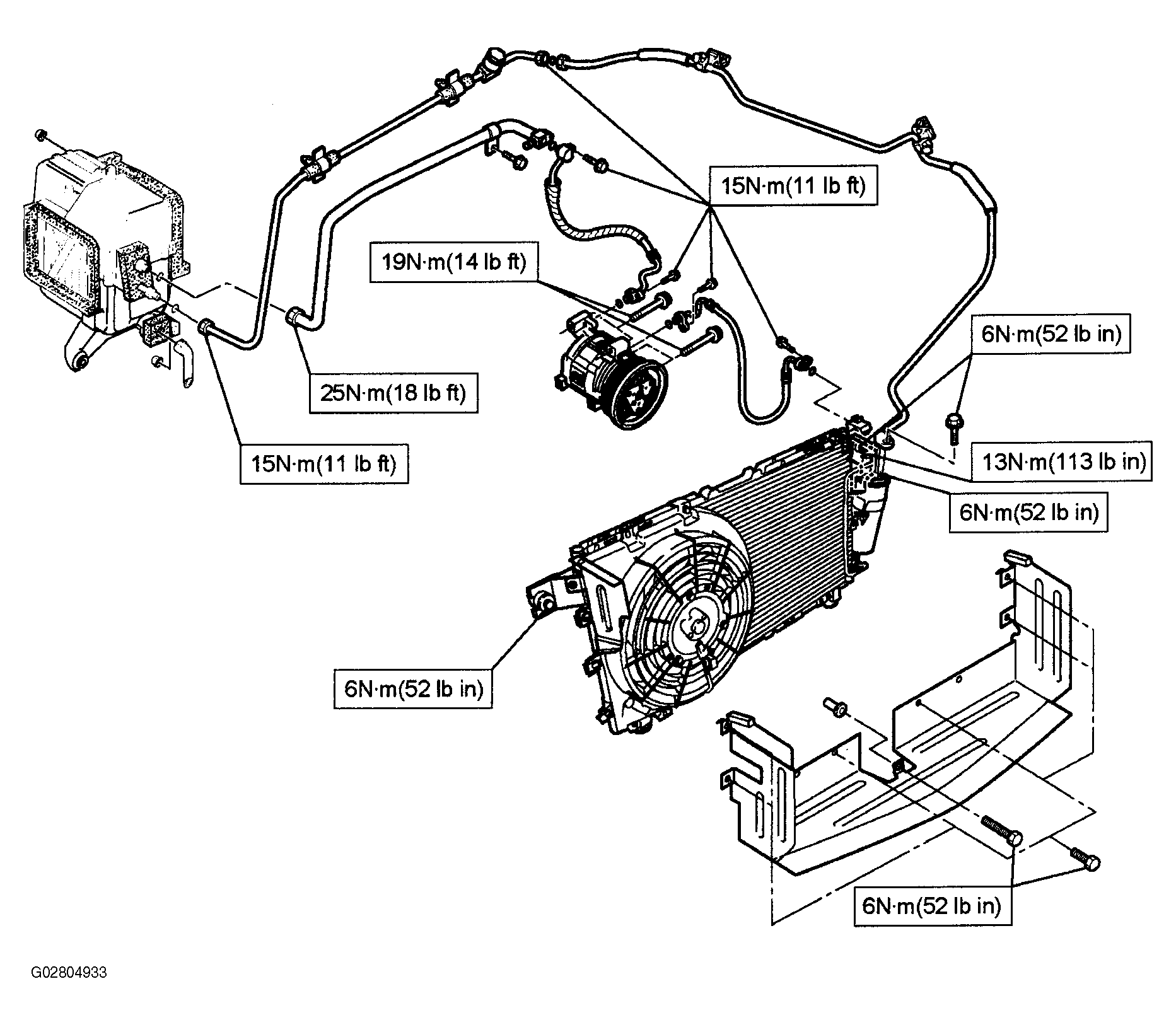

Fig 1: Refrigerant Line & Associated Parts Torque Specifications (1 Of 2)
G02804933Courtesy of ISUZU MOTOR CO.
Fig 2: Refrigerant Line & Associated Parts Torque Specifications (2 Of 2)
G02804934Courtesy of ISUZU MOTOR CO.

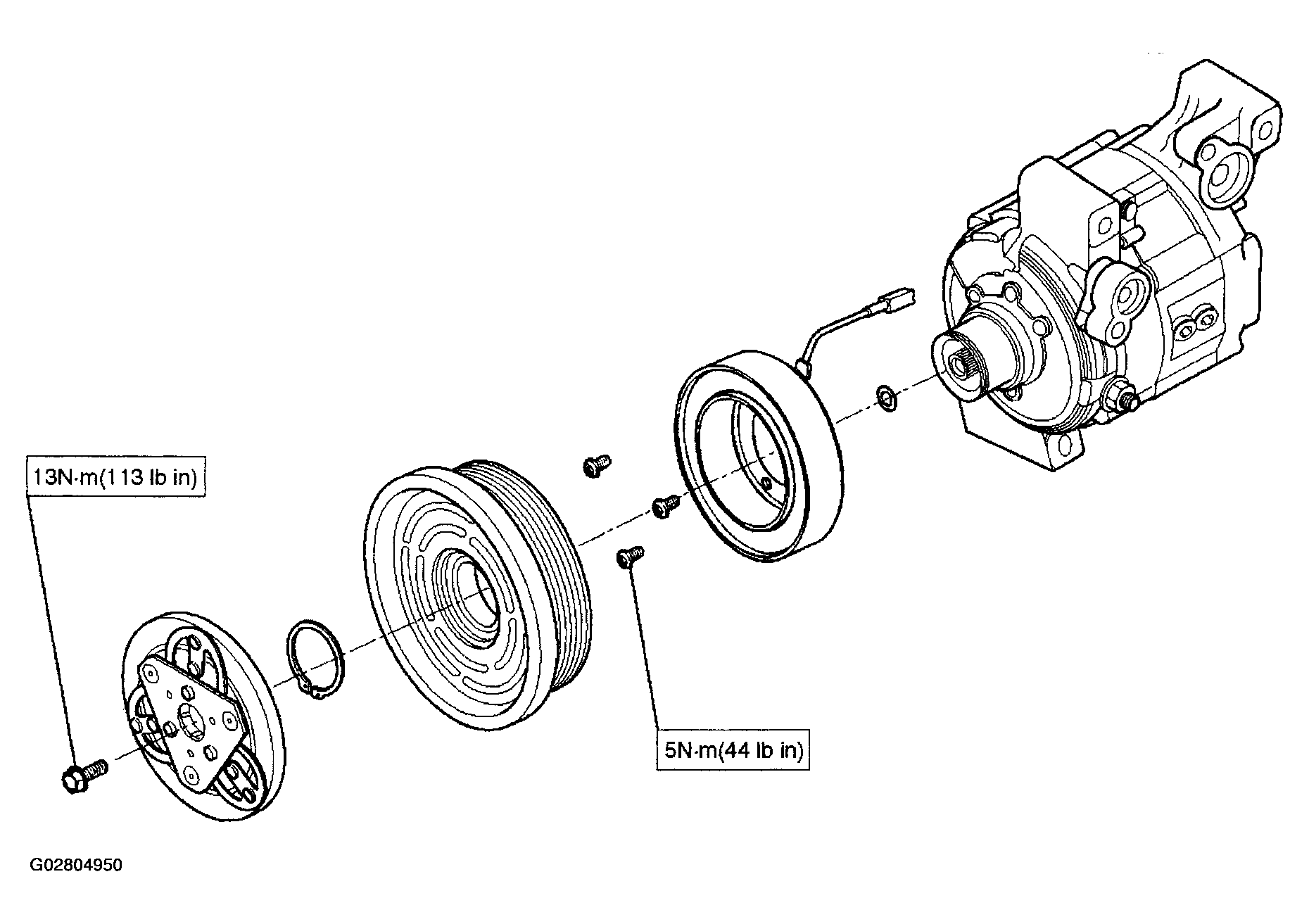

Fig 1: Compressor Magnetic Clutch Torque Specifications
G02804950Courtesy of ISUZU MOTOR CO.
