Lifting Points and Supportable Point Locations: Notes

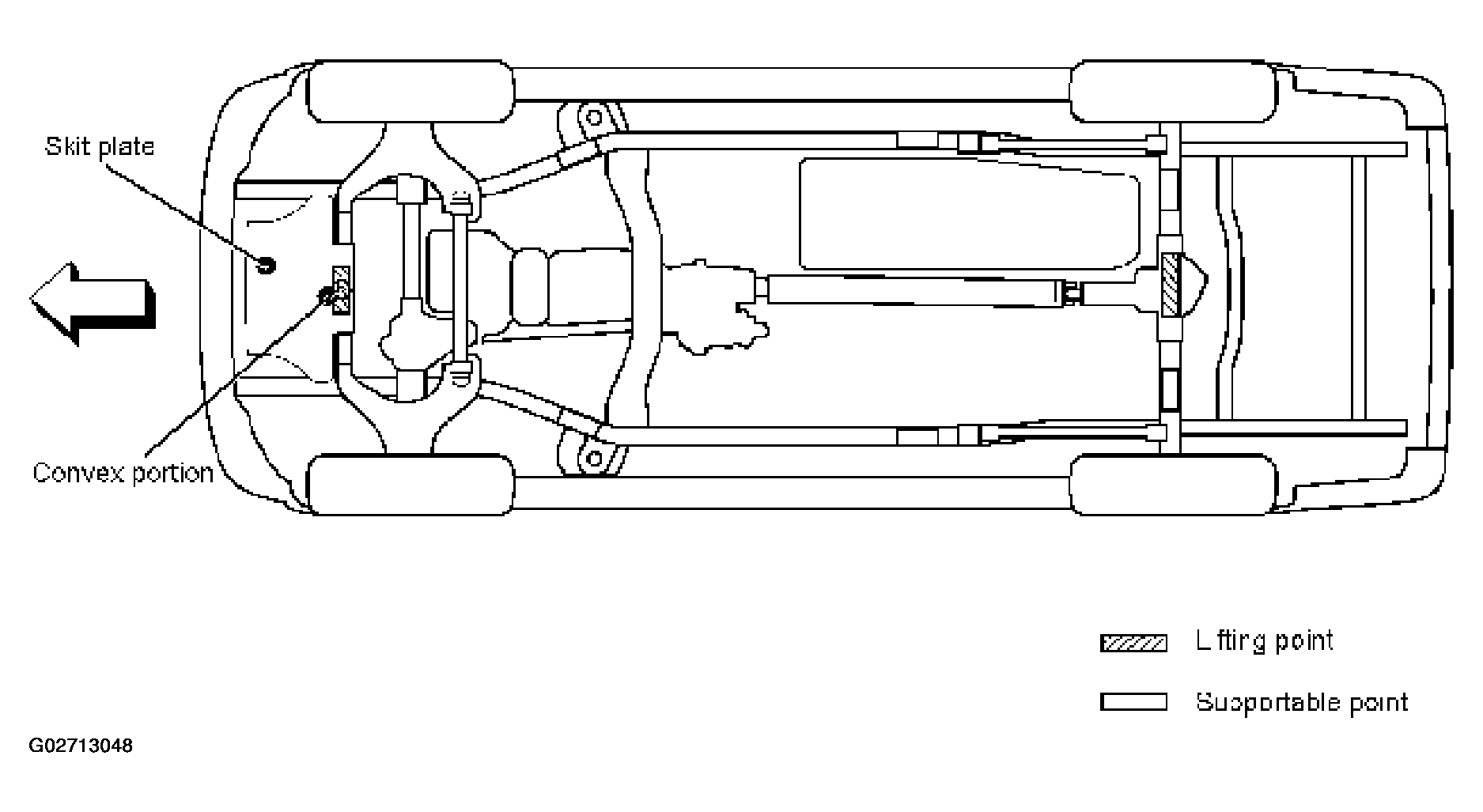

Fig 1: Identifying Lifting Points And Supportable Point Locations

G02713048

Courtesy of ISUZU MOTOR CO.
