Home >> Isuzu >> 2003 >> Axiom Base, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> Transmission Control System >> Diagnostic Trouble Codes >> DTC P0730: Gear Error Without Input Speed >> Notes

DTC P0730: Gear Error Without Input Speed: Notes

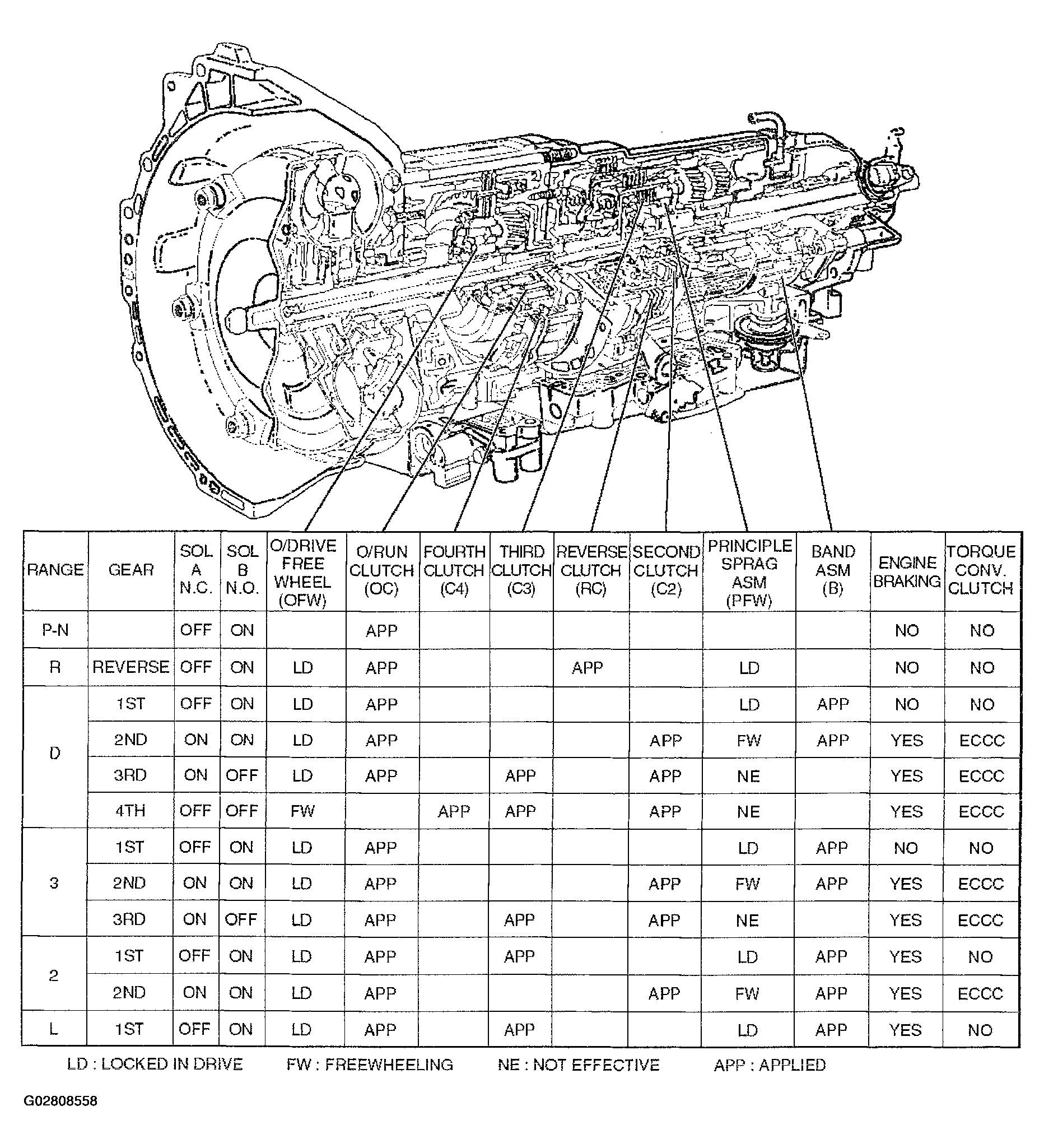

Fig 1: DTC P0730 Gear Error Without Input Speed (Sectional View Of Automatic Transmission)

G02808558

Courtesy of ISUZU MOTOR CO.
