DTC P0723: Automatic Transmission Output Speed Sensor (OSS) Intermittent

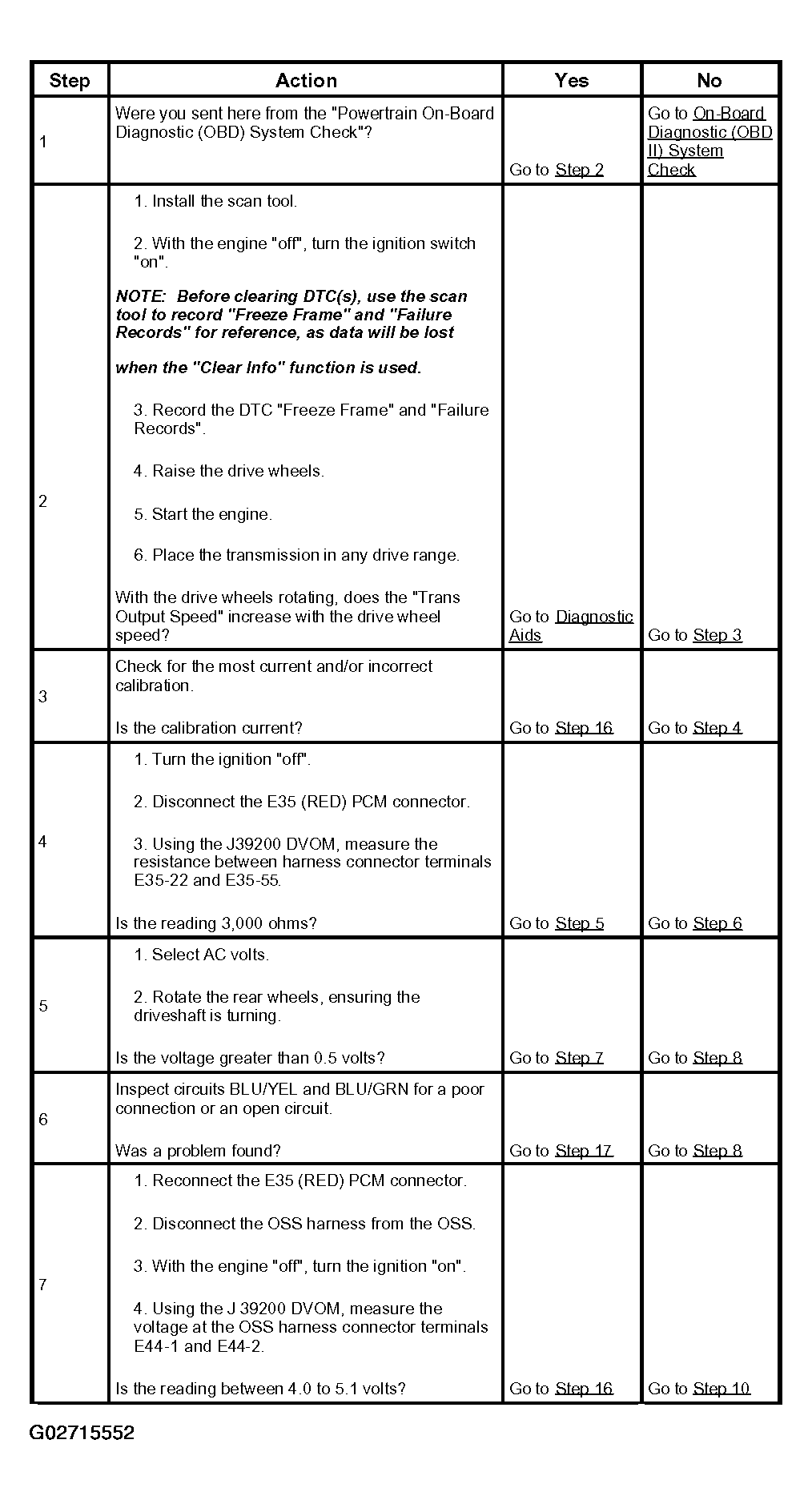

Fig 1: DTC P0723 Automatic Transmission Output Speed Sensor (OSS) Intermittent Diagnostic Chart (Steps 1-7)
G02715552Courtesy of ISUZU MOTOR CO.

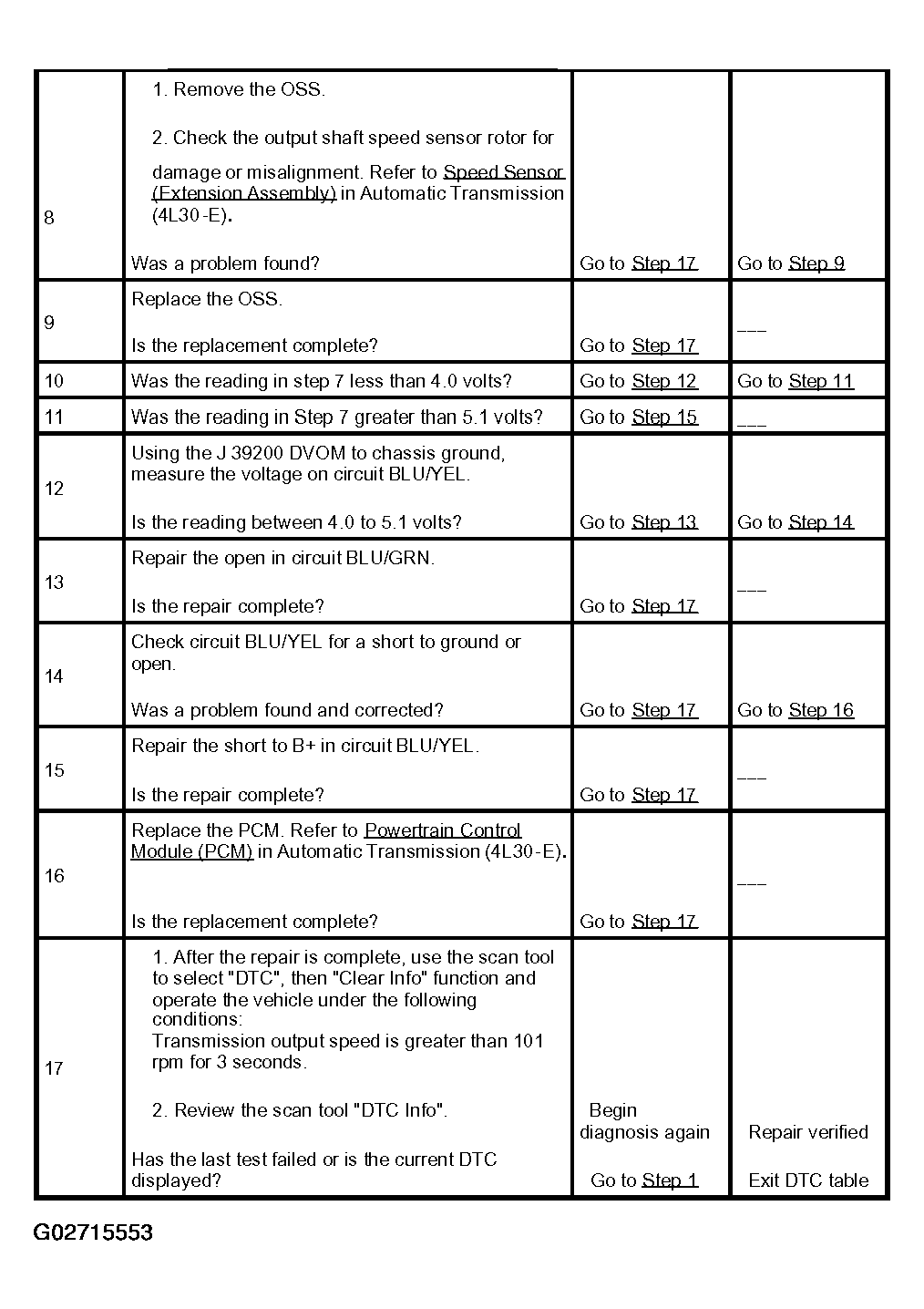

Fig 2: DTC P0723 Automatic Transmission Output Speed Sensor (OSS) Intermittent Diagnostic Chart (Steps 8-17)
G02715553Courtesy of ISUZU MOTOR CO.
