DTC P0713 Transmission Fluid Temperature (TFT) Sensor Circuit High Input

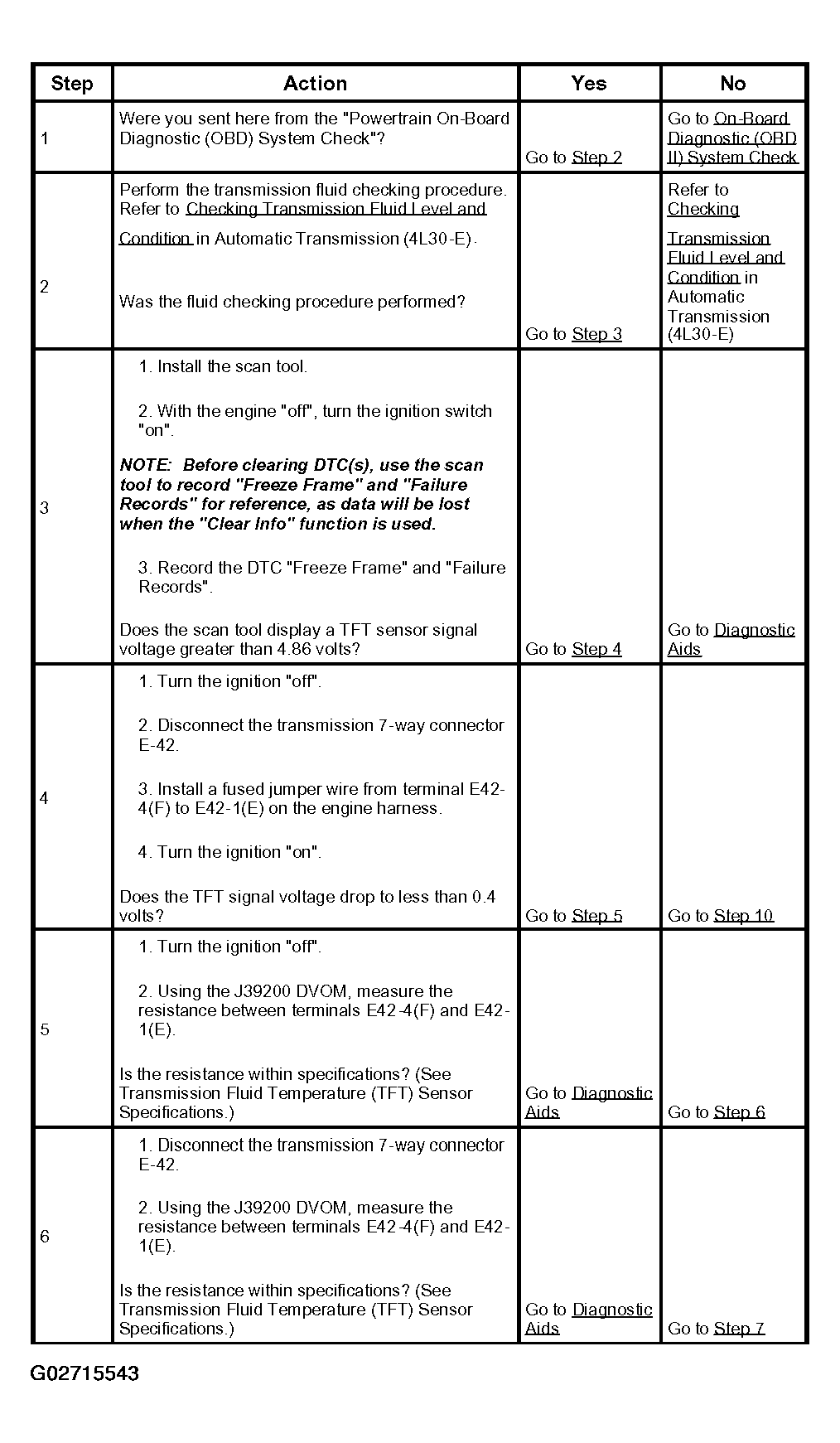

Fig 1: DTC P0713 Transmission Fluid Temperature (TFT) Sensor Circuit High Input Diagnostic Chart (Steps 1-6)
G02715543Courtesy of ISUZU MOTOR CO.

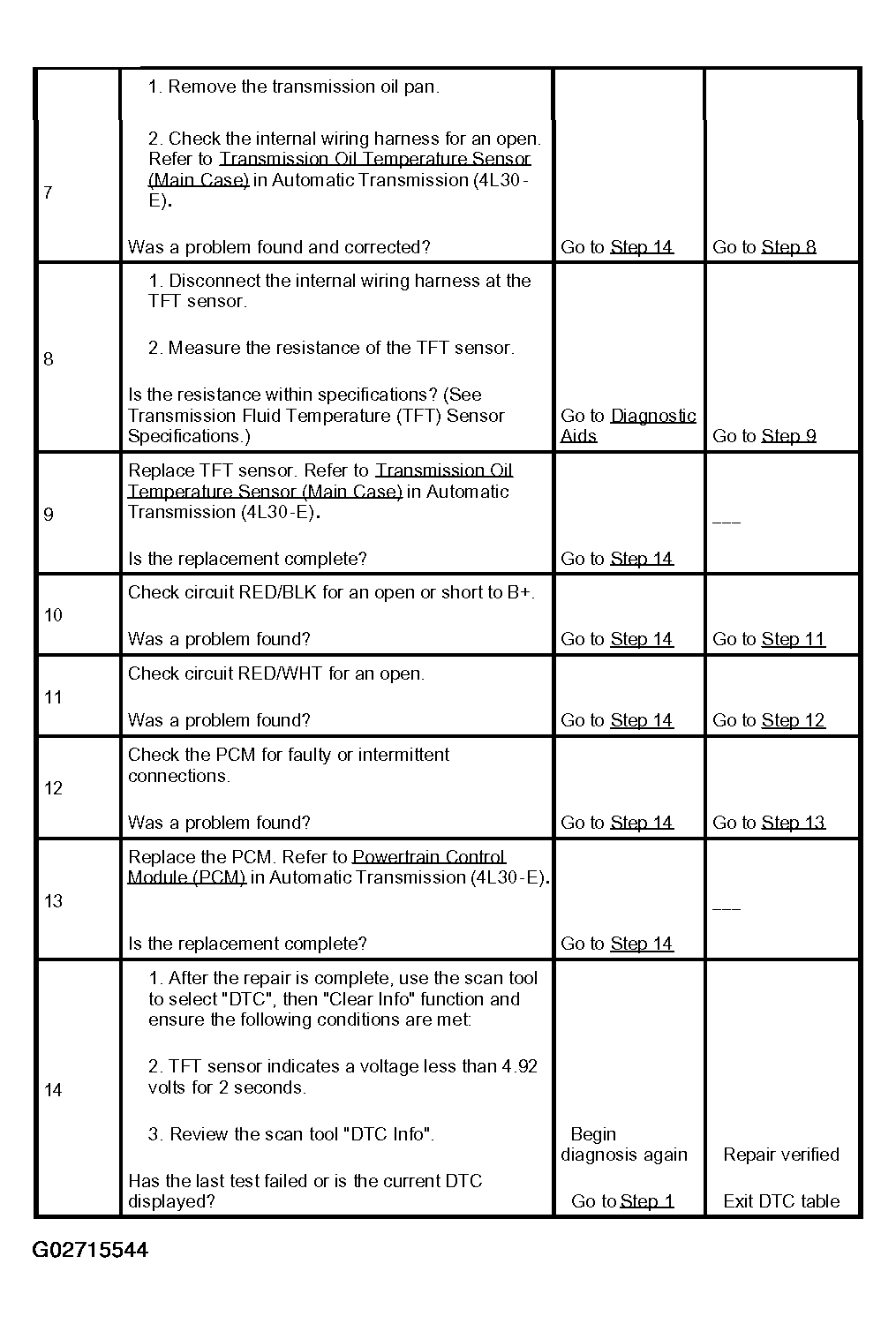

Fig 2: DTC P0713 Transmission Fluid Temperature (TFT) Sensor Circuit High Input Diagnostic Chart (Steps 7-14)
G02715544Courtesy of ISUZU MOTOR CO.
