DTC P0706: Transmission Range Switch (Mode Switch) Performance
>>
Range Switch Logic Table
Range Switch Logic Table

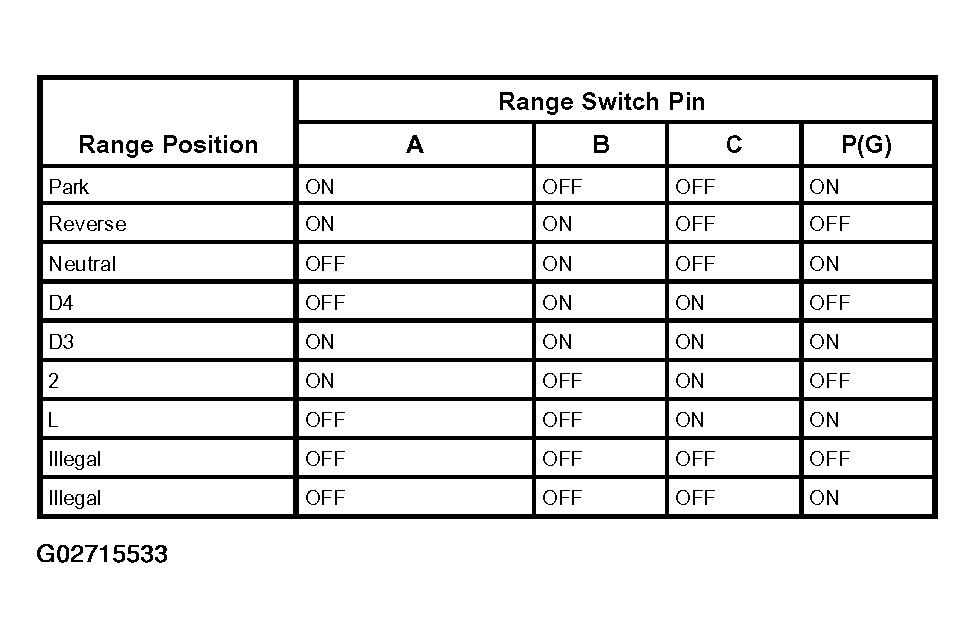

Fig 1: Range Switch Logic Table
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
