DTC P0706: Transmission Range Switch (Mode Switch) Performance
>>
DTC P0706 Transmission Range Switch (Mode Switch) Performance
DTC P0706 Transmission Range Switch (Mode Switch) Performance

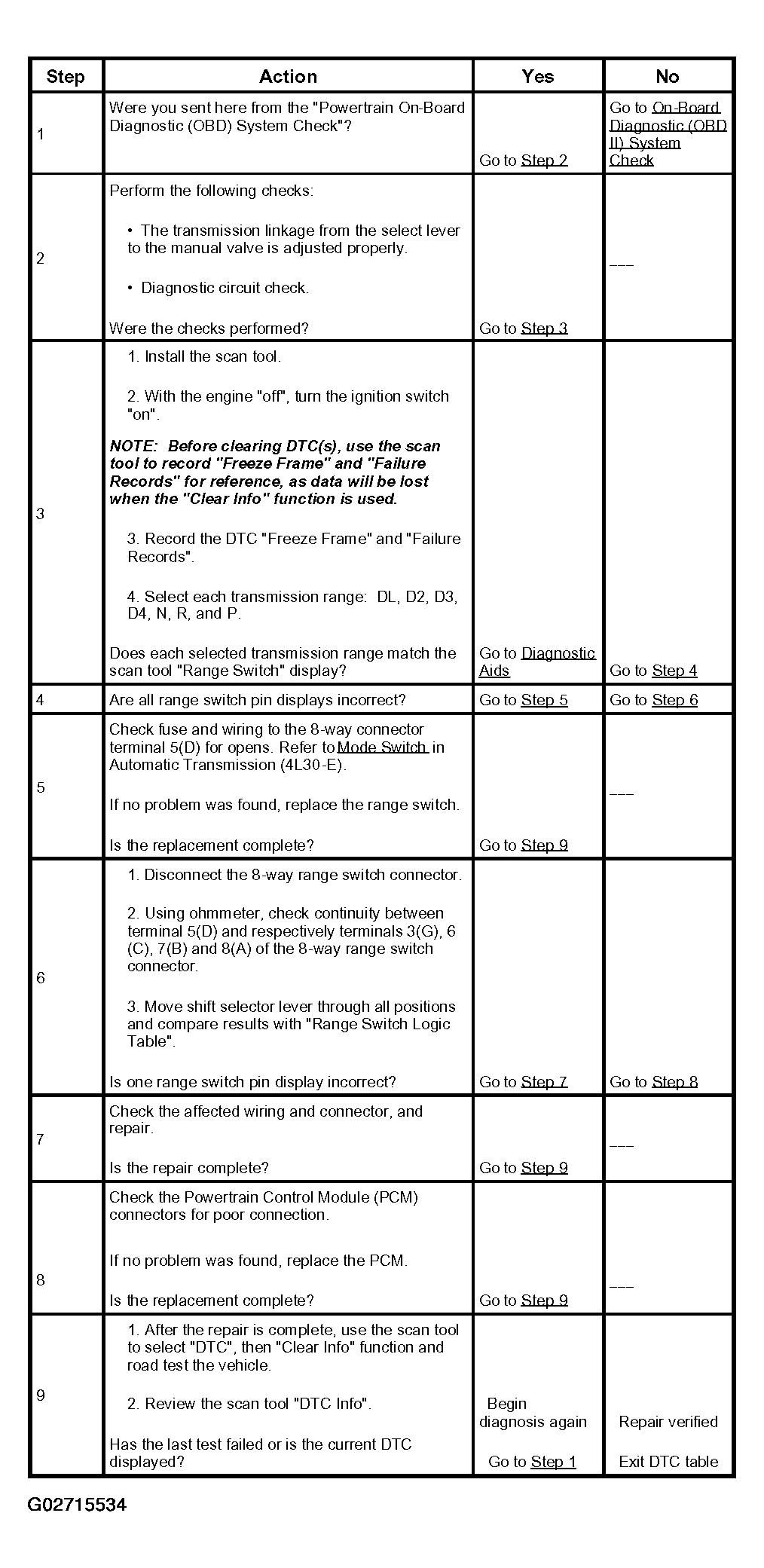

Fig 1: DTC P0706 Transmission Range Switch (Mode Switch) Performance Diagnostic Chart
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
