DTC P0705: Transmission Range Switch (Mode Switch) Illegal Position
>>
Notes
DTC P0705: Transmission Range Switch (Mode Switch) Illegal Position: Notes

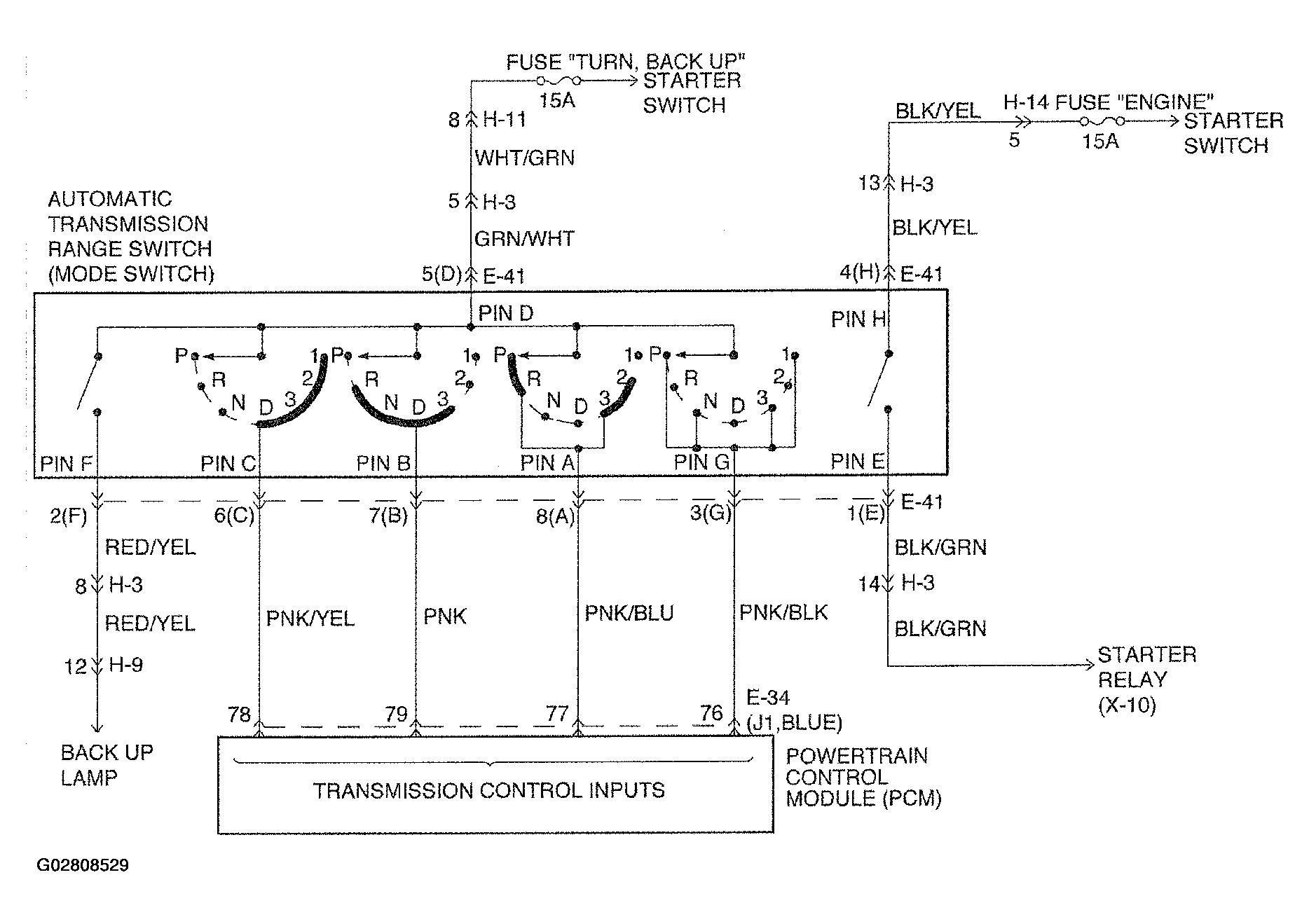

Fig 1: DTC P0705 Transmission Range Switch (Mode Switch) Illegal Position Circuit Diagram
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
