Diagnostic Procedure

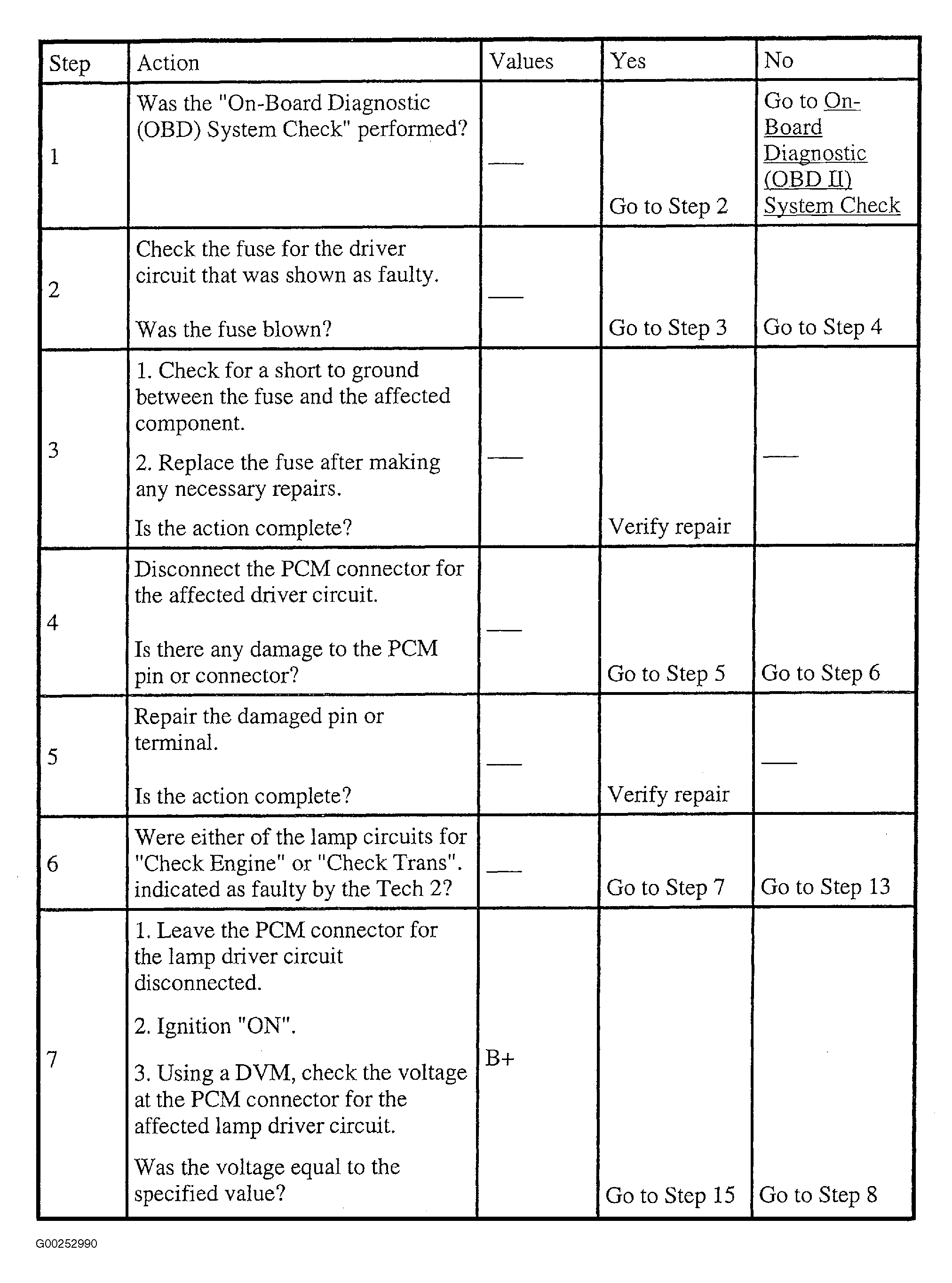

Fig 1: DTC P1650: Quad Driver Module "A" Fault (Steps 1-7)
G00252990Courtesy of ISUZU MOTOR CO.

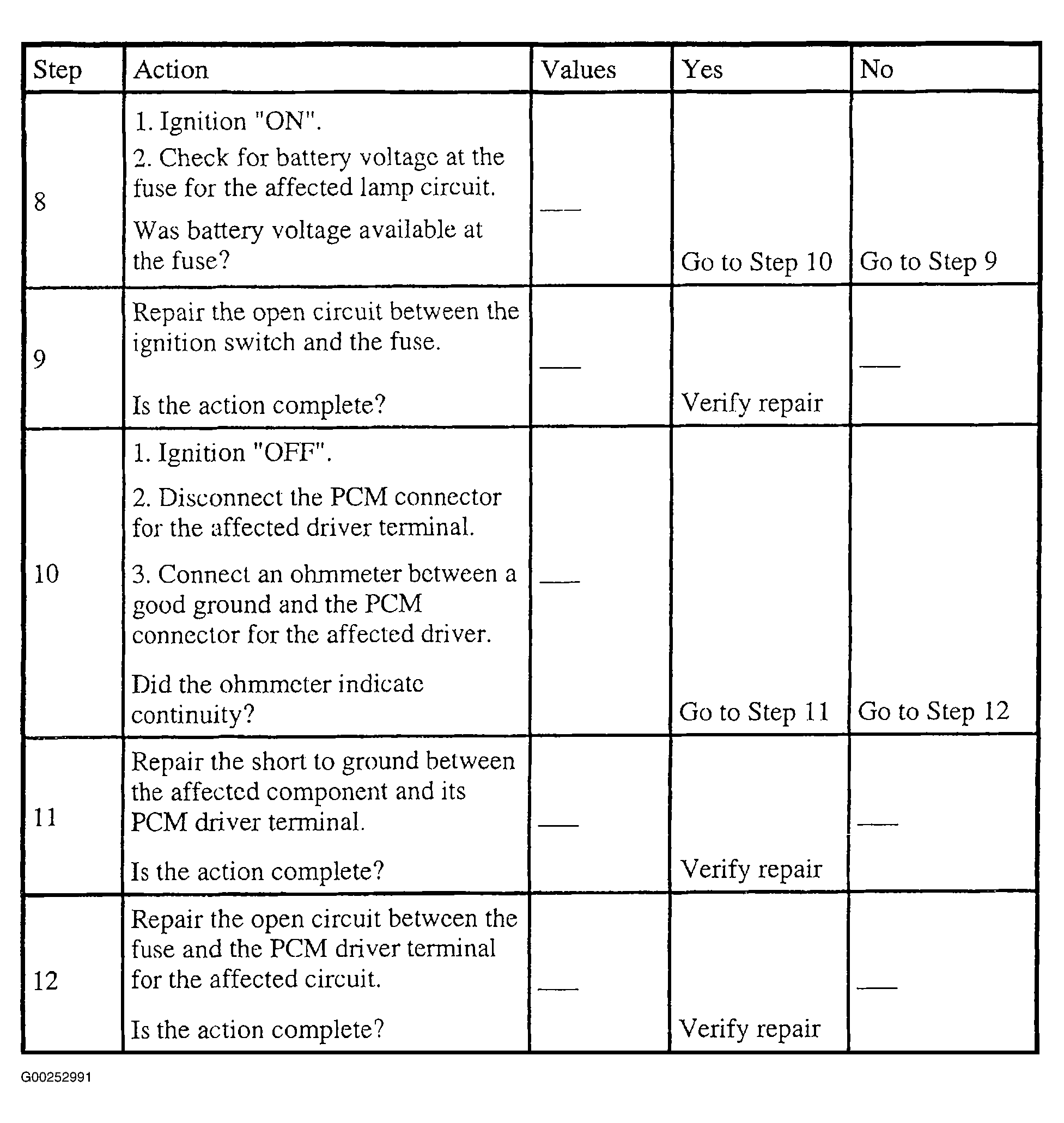

Fig 2: DTC P1650: Quad Driver Module "A" Fault (Steps 8-12)
G00252991Courtesy of ISUZU MOTOR CO.

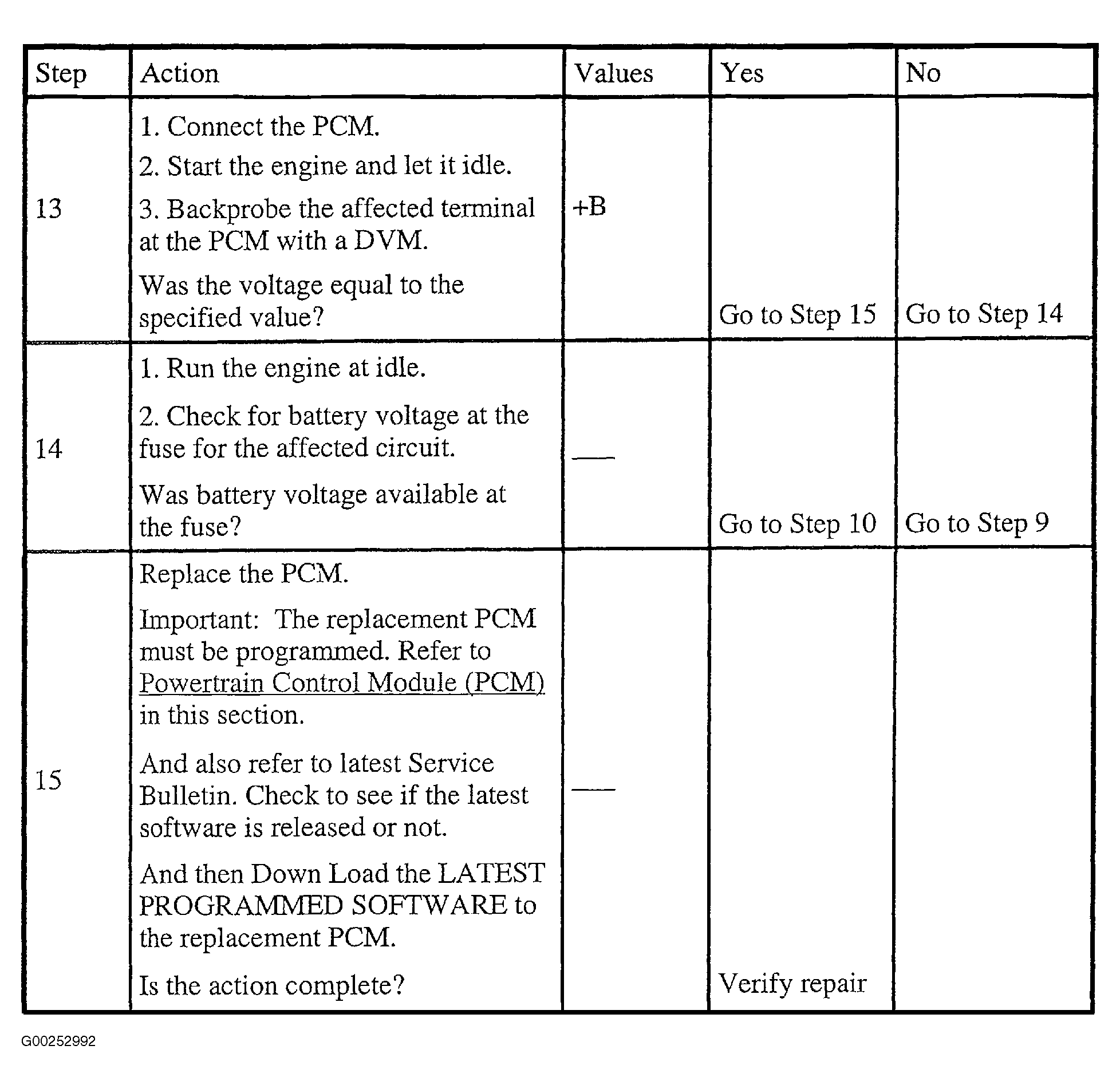

Fig 3: DTC P1650: Quad Driver Module "A" Fault (Steps 13-15)
G00252992Courtesy of ISUZU MOTOR CO.
