Diagnostic Procedure

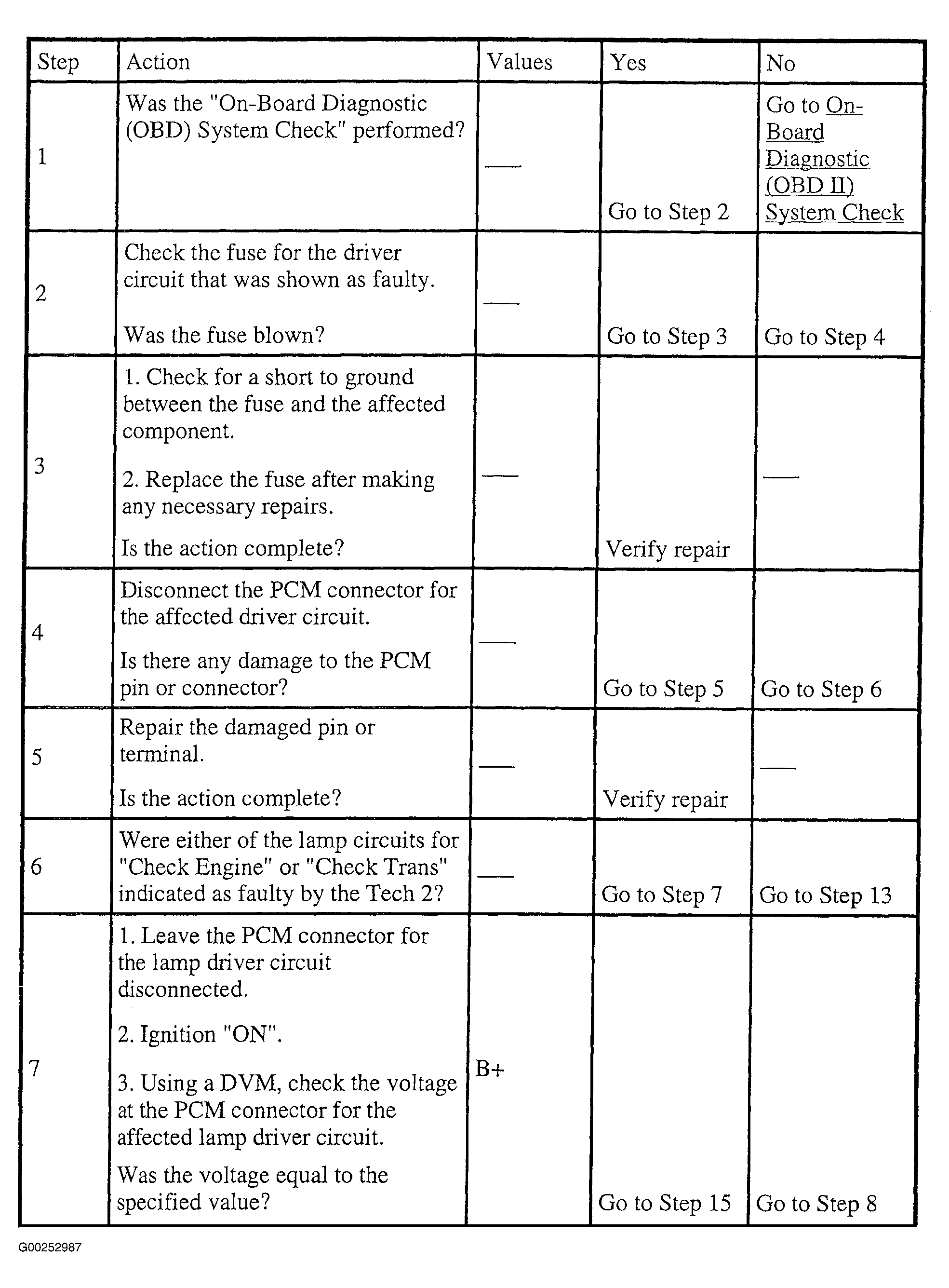

Fig 1: DTC P1640: Output Driver Module No. 1 Circuit Fault (Steps 1-7)
G00252987Courtesy of ISUZU MOTOR CO.

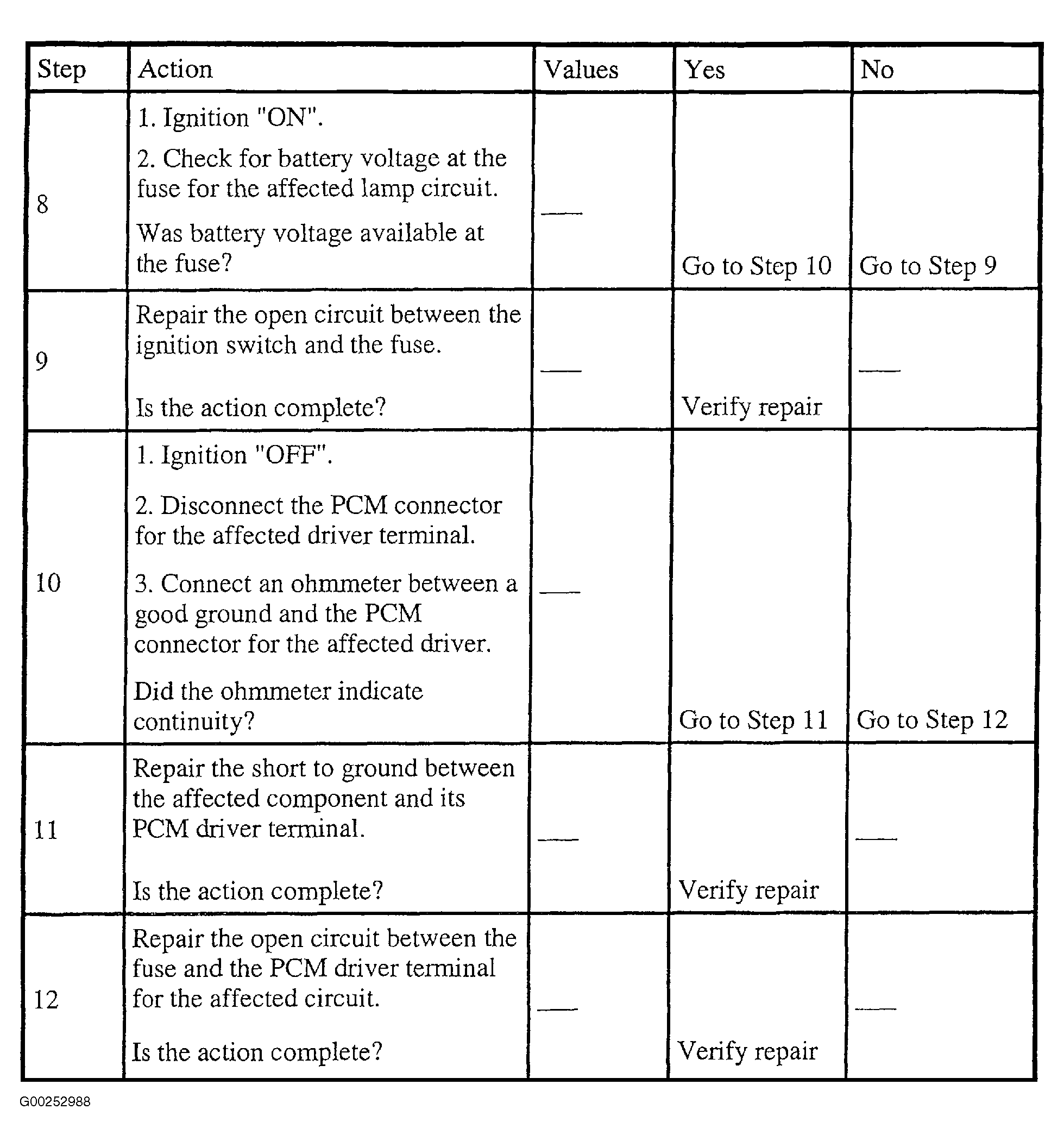

Fig 2: DTC P1640: Output Driver Module No. 1 Circuit Fault (Steps 8-12)
G00252988Courtesy of ISUZU MOTOR CO.

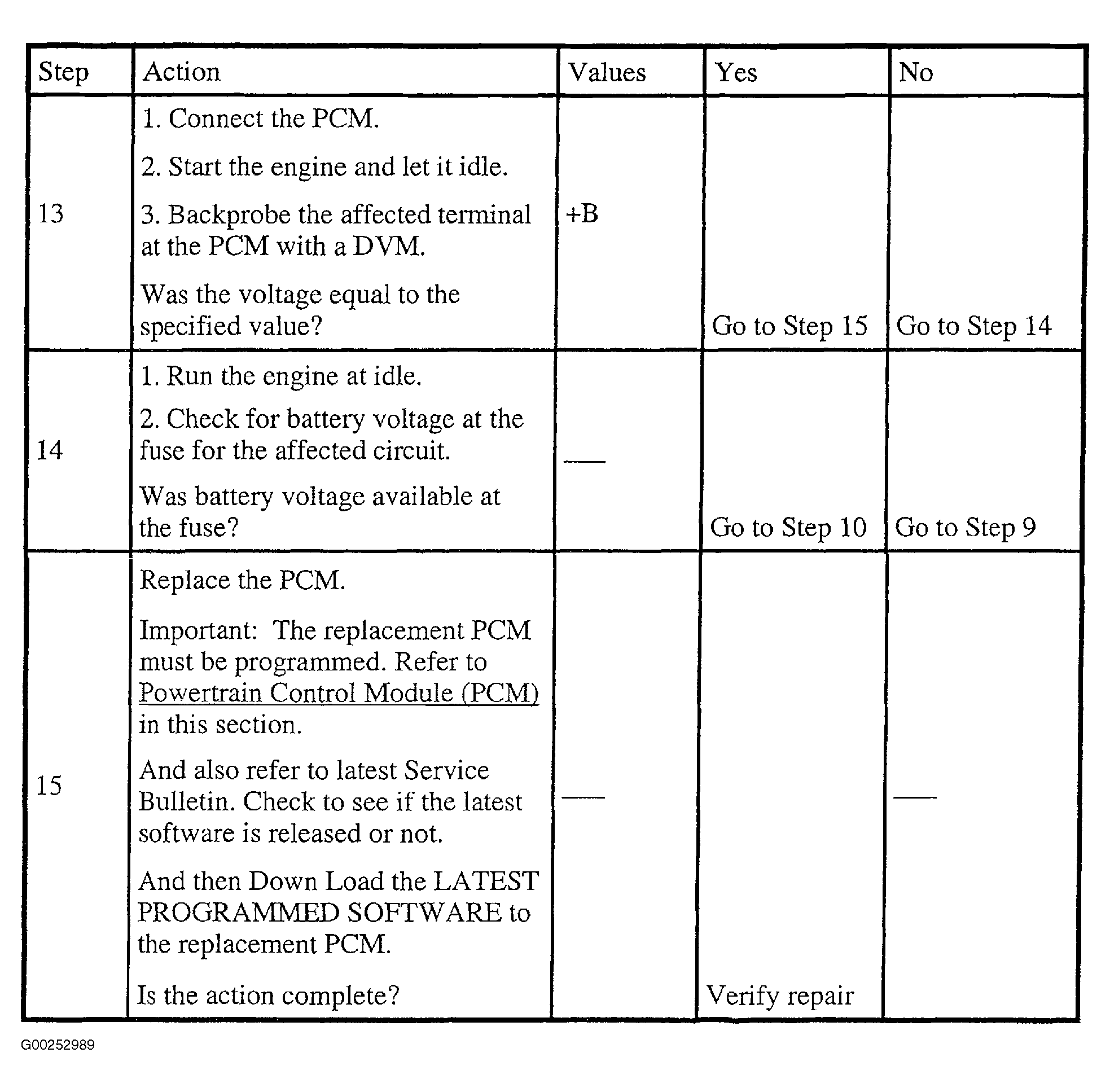

Fig 3: DTC P1640: Output Driver Module No. 1 Circuit Fault (Steps 13-15)
G00252989Courtesy of ISUZU MOTOR CO.
