Diagnostic Procedure

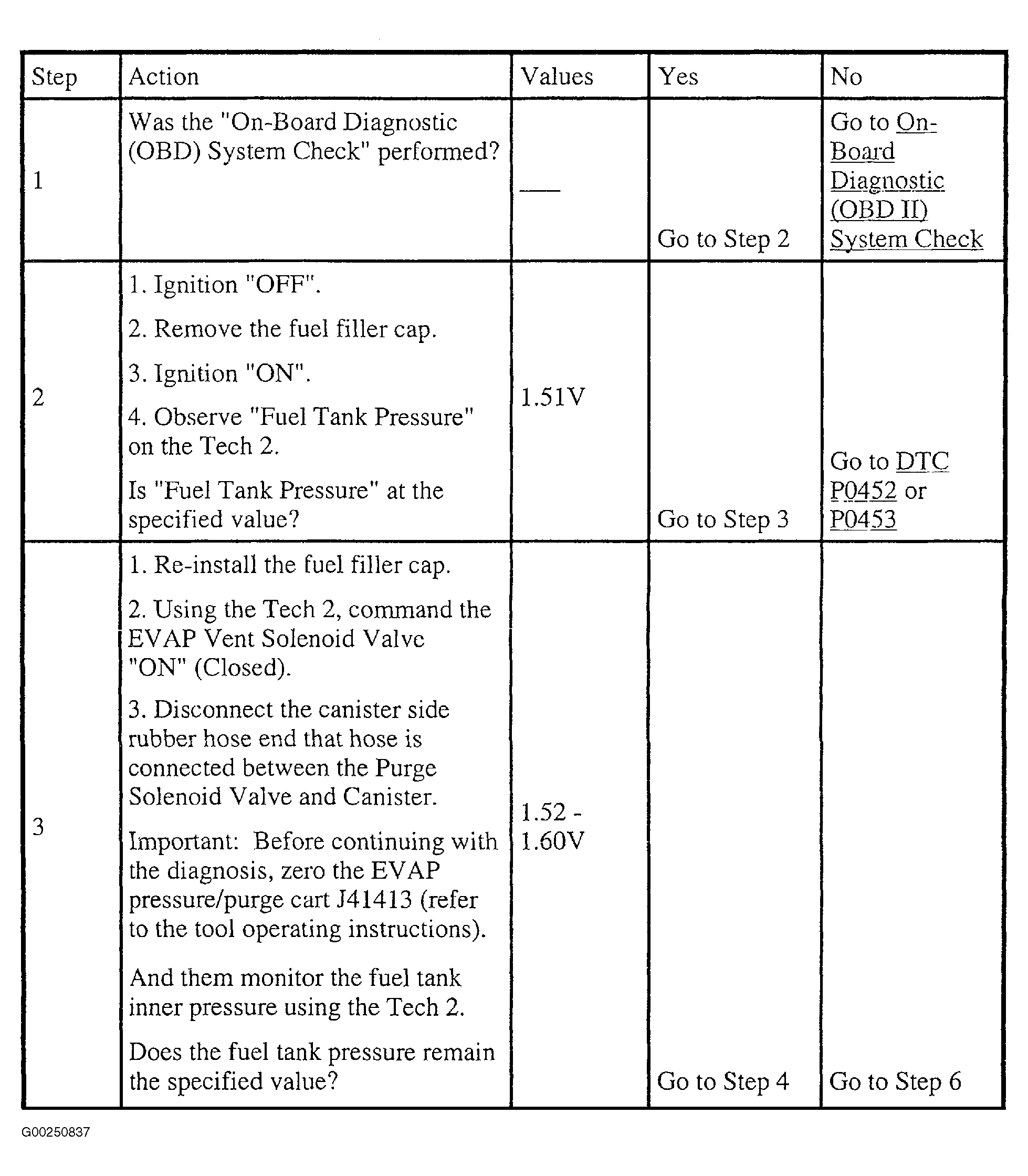

Fig 1: DTC P1441: EVAP Control System - Continuous Open Purge Flow (Steps 1-3)
G00250837Courtesy of ISUZU MOTOR CO.

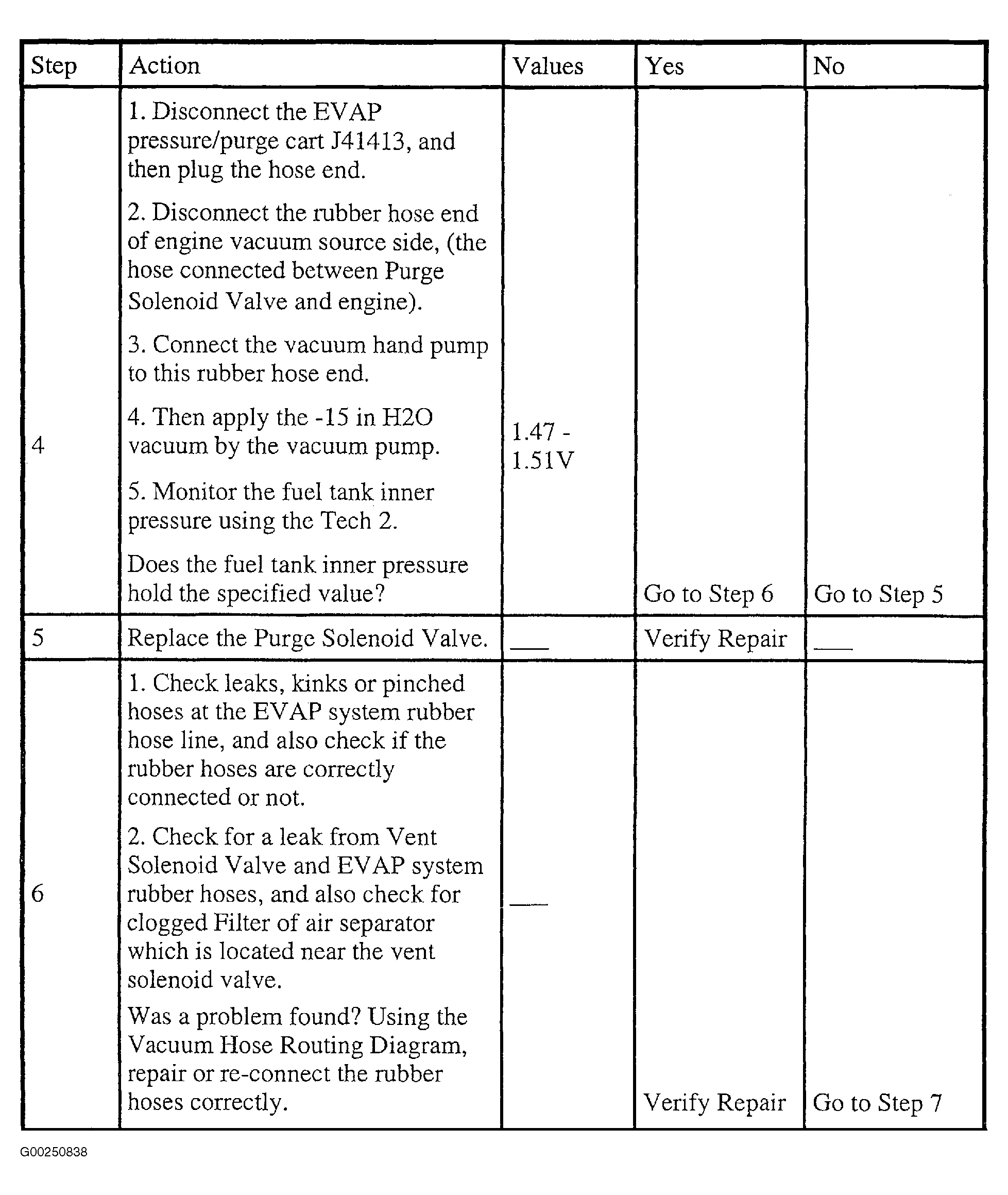

Fig 2: DTC P1441: EVAP Control System - Continuous Open Purge Flow (Steps 4-6)
G00250838Courtesy of ISUZU MOTOR CO.

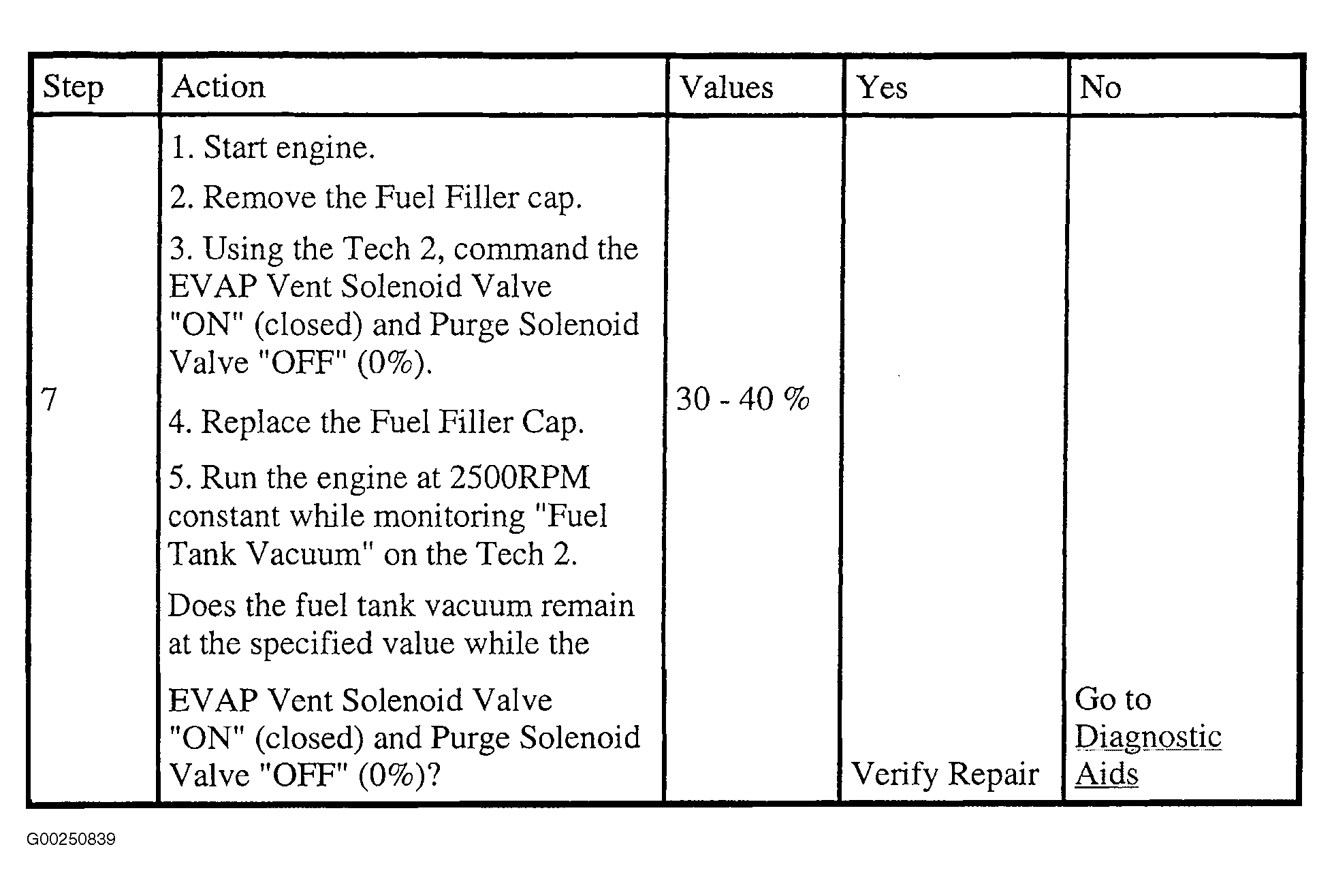

Fig 3: DTC P1441: EVAP Control System - Continuous Open Purge Flow (Step 7)
G00250839Courtesy of ISUZU MOTOR CO.
