Diagnostic Procedure

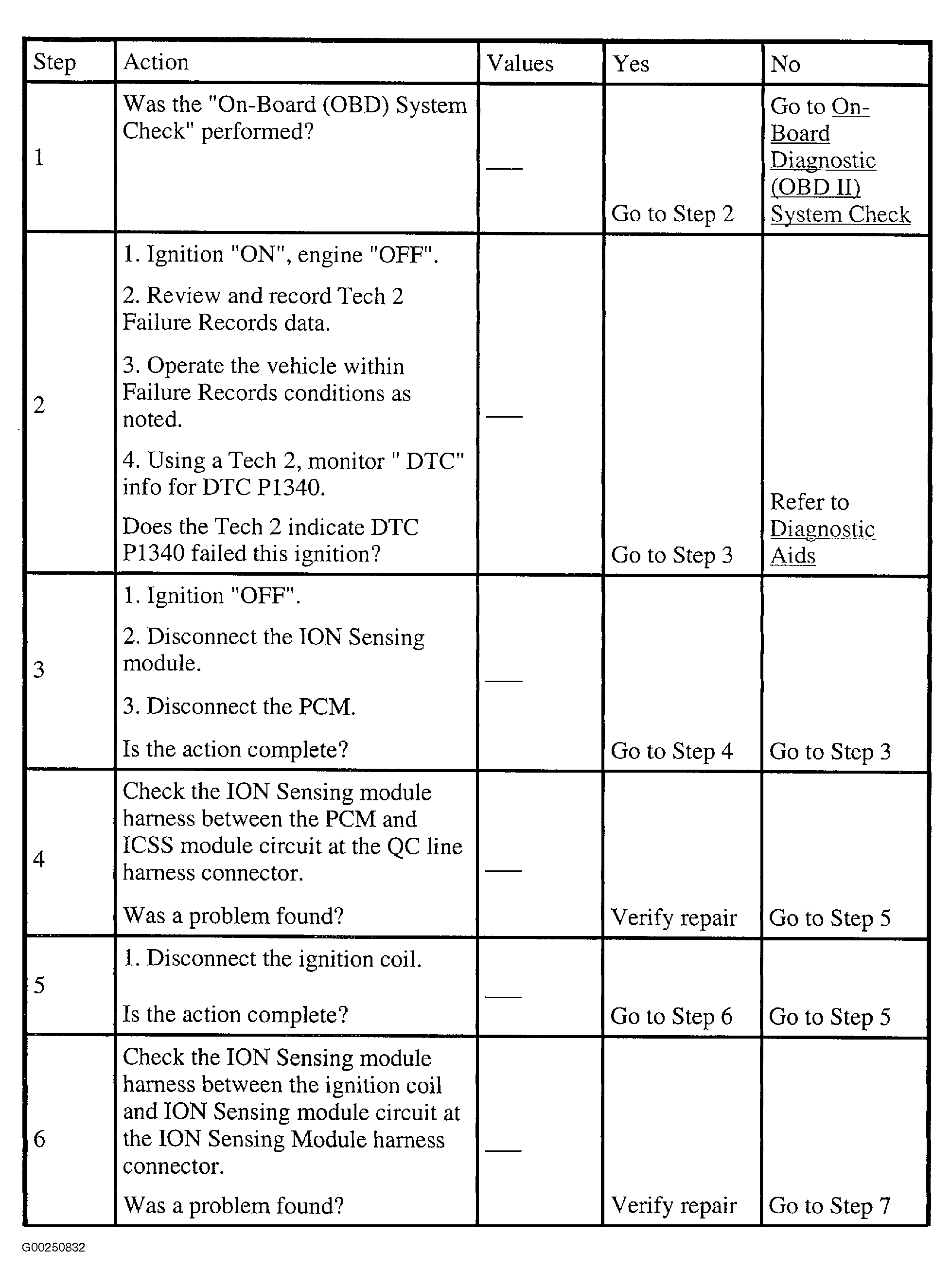

Fig 1: DTC P1340: ION Sensing Module - Cylinder Synchronization Failure (Steps 1-6)
G00250832Courtesy of ISUZU MOTOR CO.

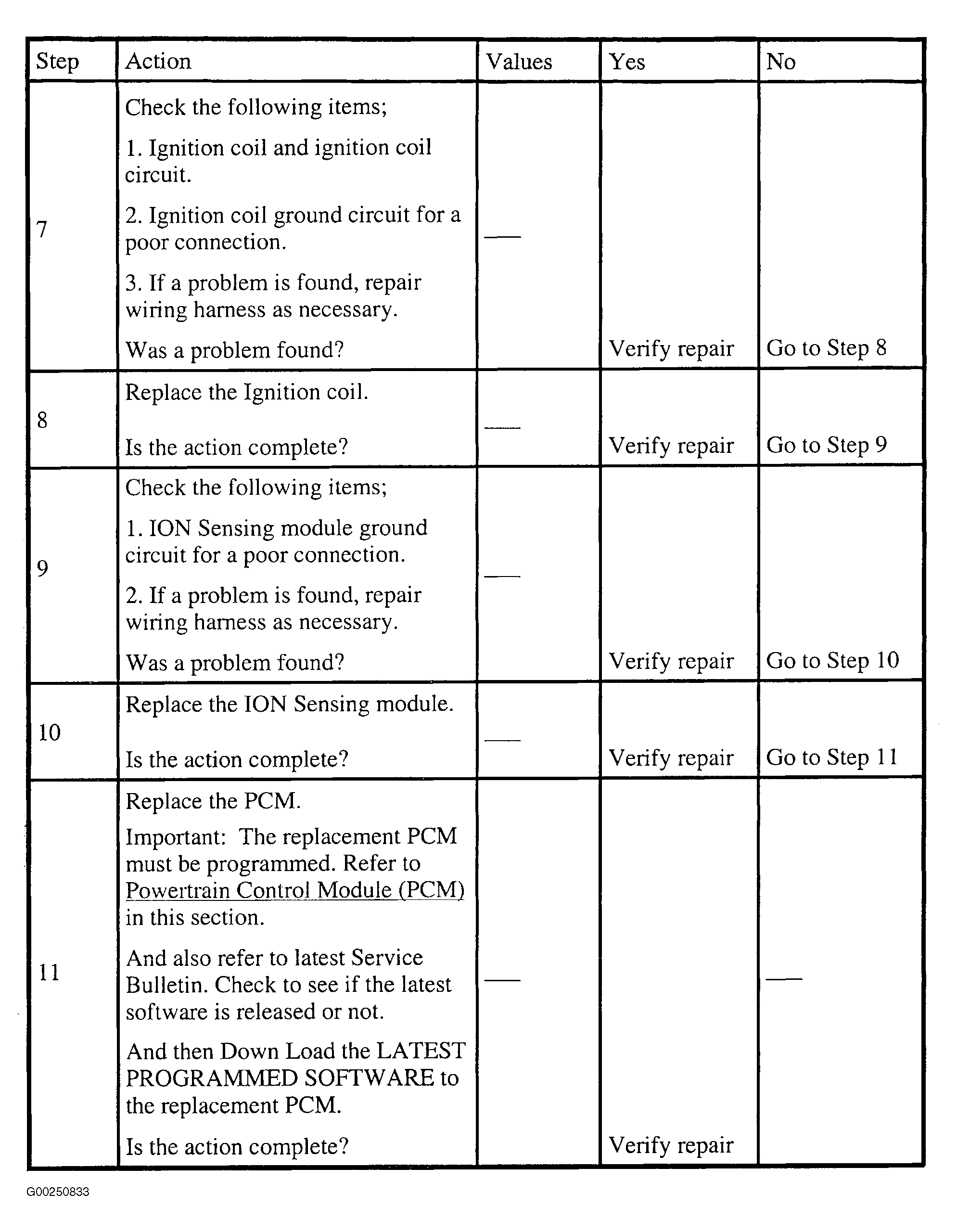

Fig 2: DTC P1340: ION Sensing Module - Cylinder Synchronization Failure (Steps 7-11)
G00250833Courtesy of ISUZU MOTOR CO.
