Diagnostic Procedure

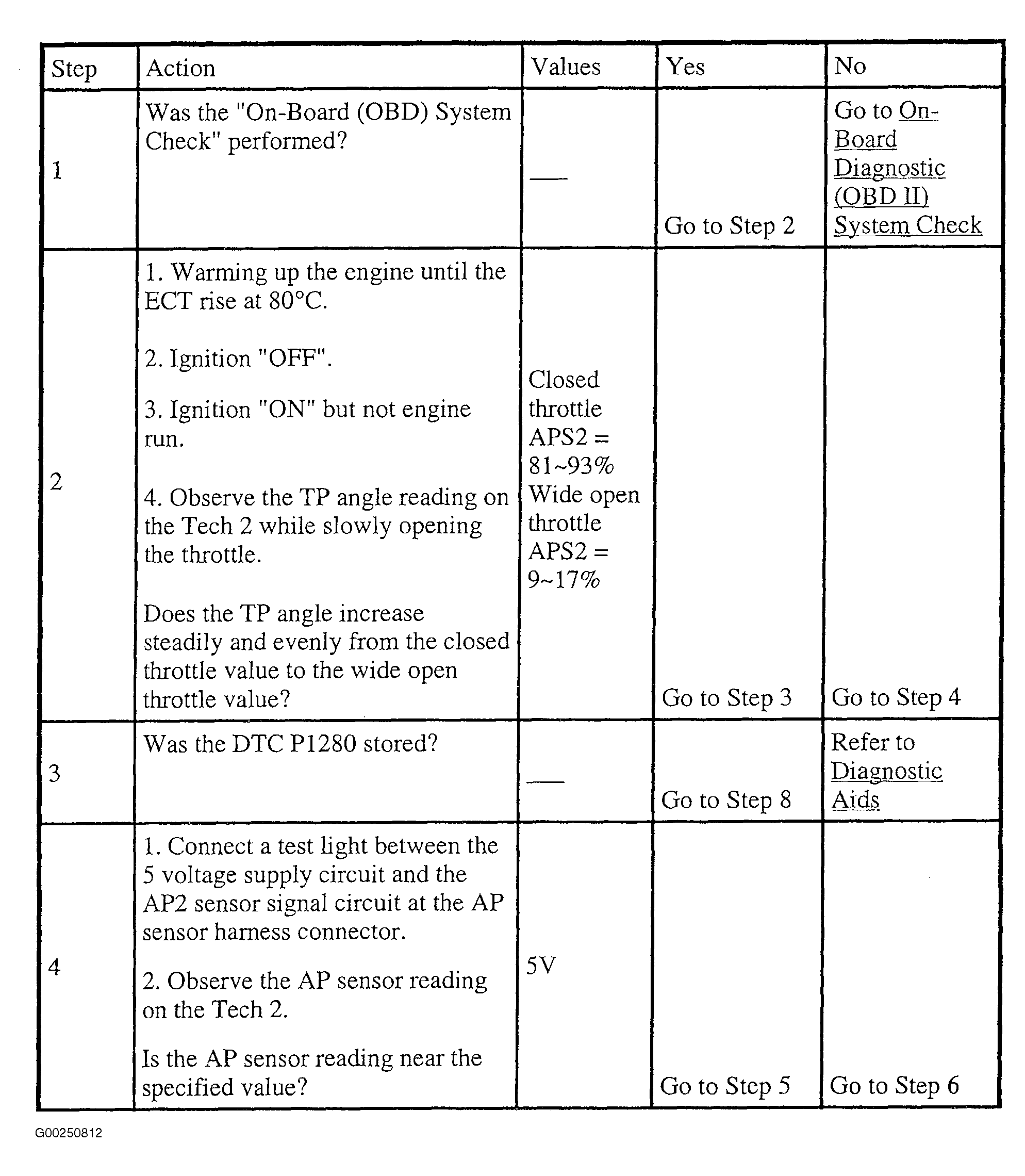

Fig 1: DTC P1280: AP Sensor 2 Circuit Fault (Steps 1-4)

G00250812

Courtesy of ISUZU MOTOR CO.

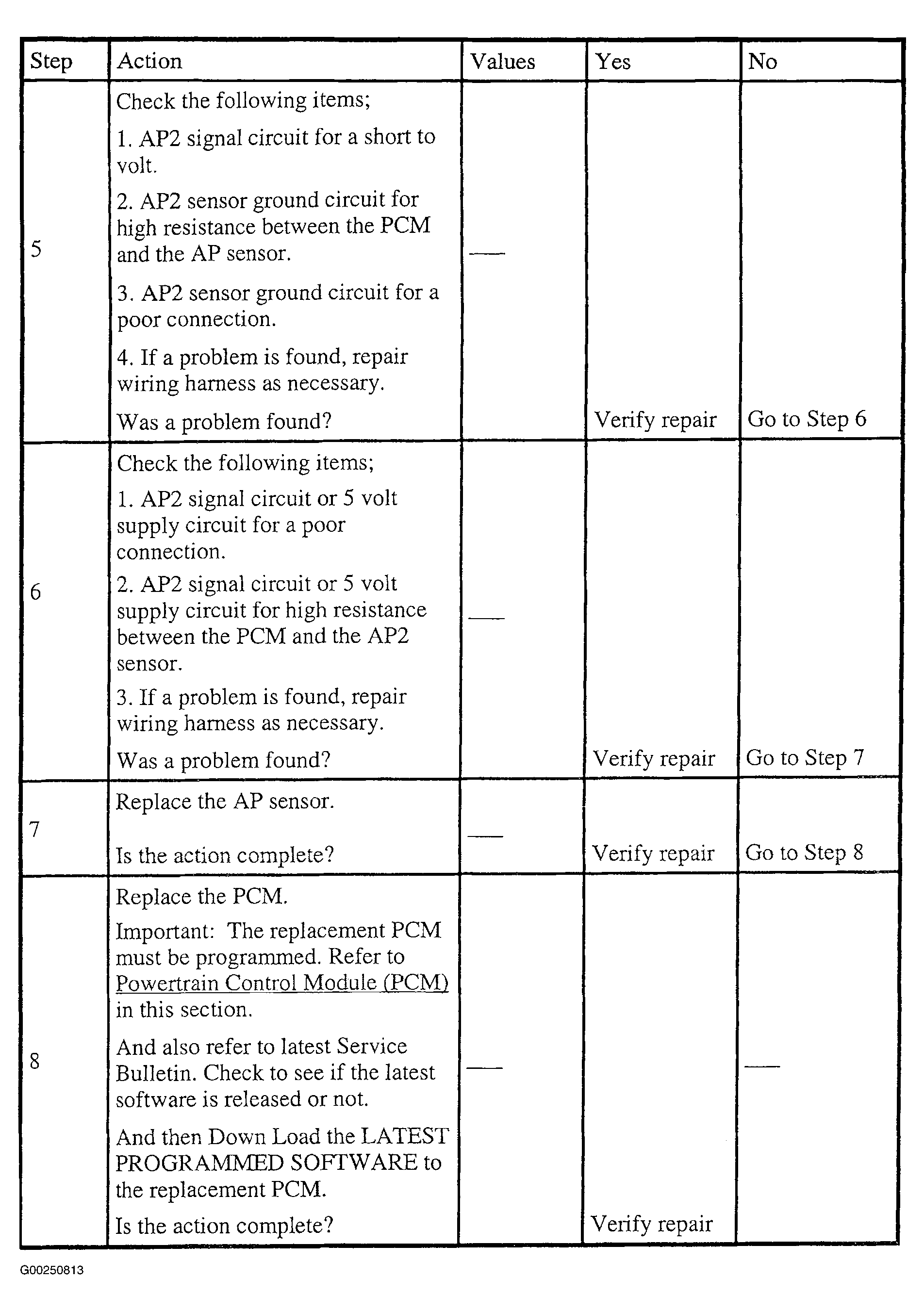

Fig 2: DTC P1280: AP Sensor 2 Circuit Fault (Steps 5-8)

G00250813

Courtesy of ISUZU MOTOR CO.
