Diagnostic Procedure

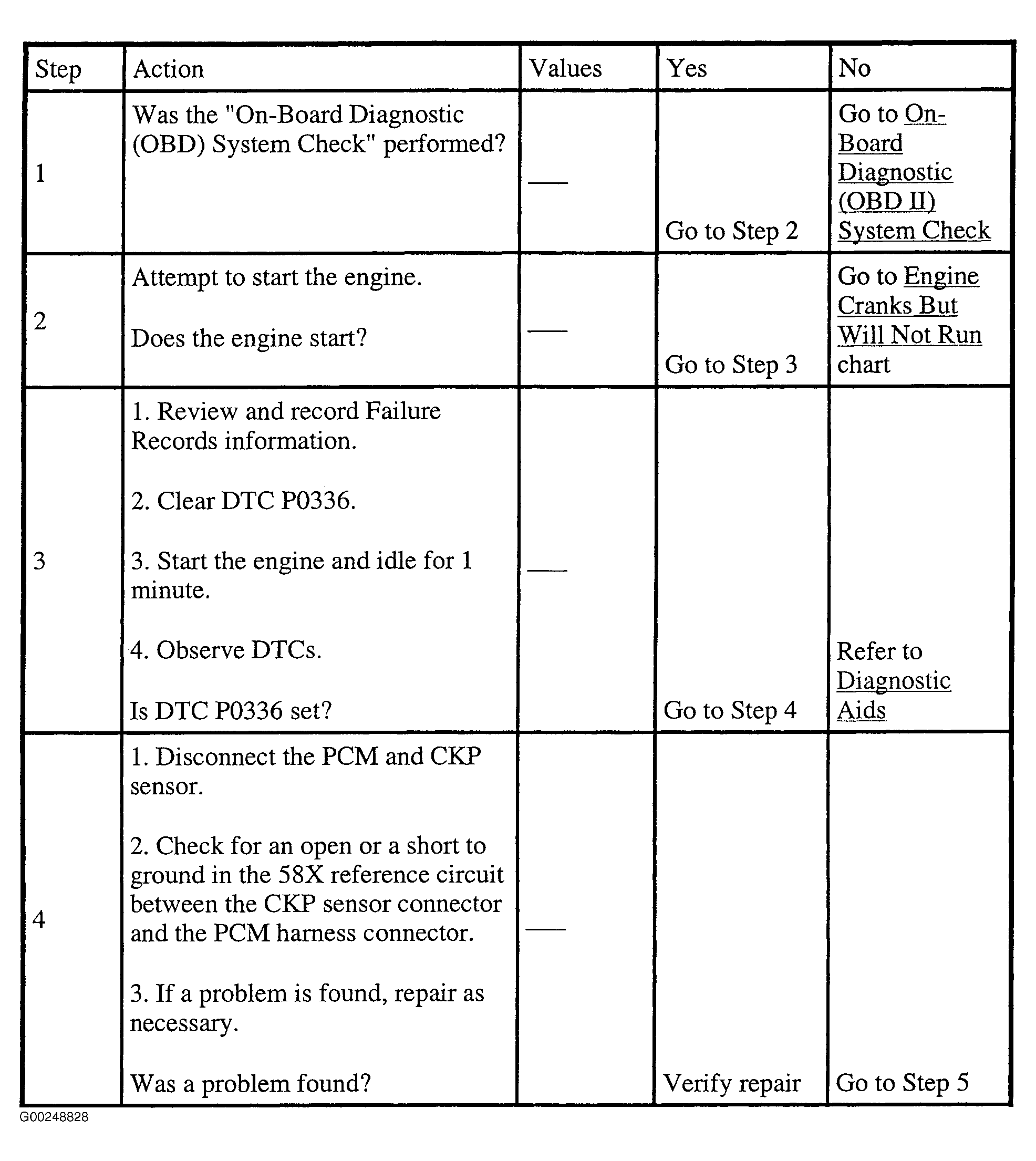

Fig 1: DTC P0336: 58X Reference Signal Circuit (Steps 1-4)

G00248828

Courtesy of ISUZU MOTOR CO.

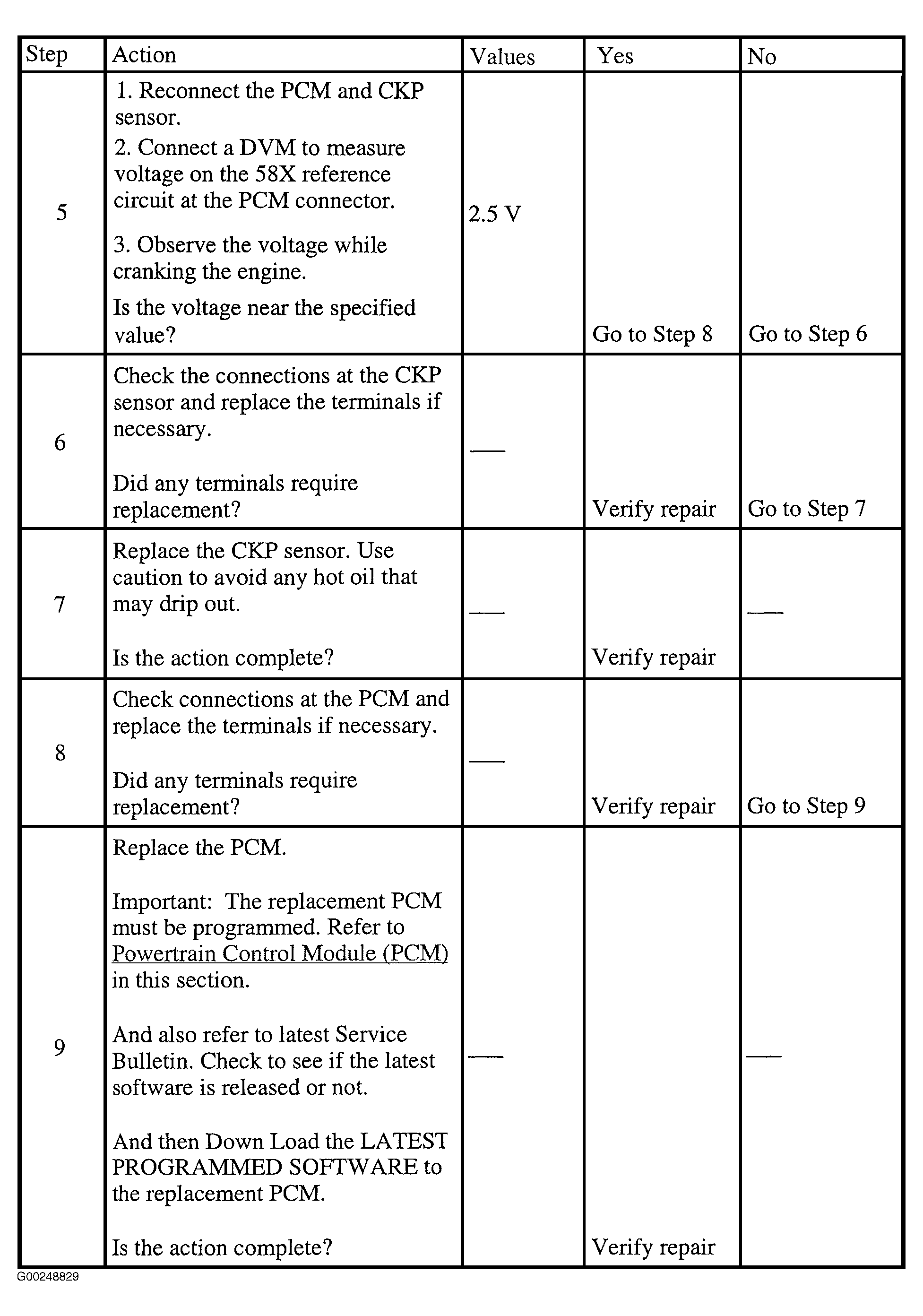

Fig 2: DTC P0336: 58X Reference Signal Circuit (Steps 5-9)

G00248829

Courtesy of ISUZU MOTOR CO.
