Fuel Tank and Associated Parts: Notes

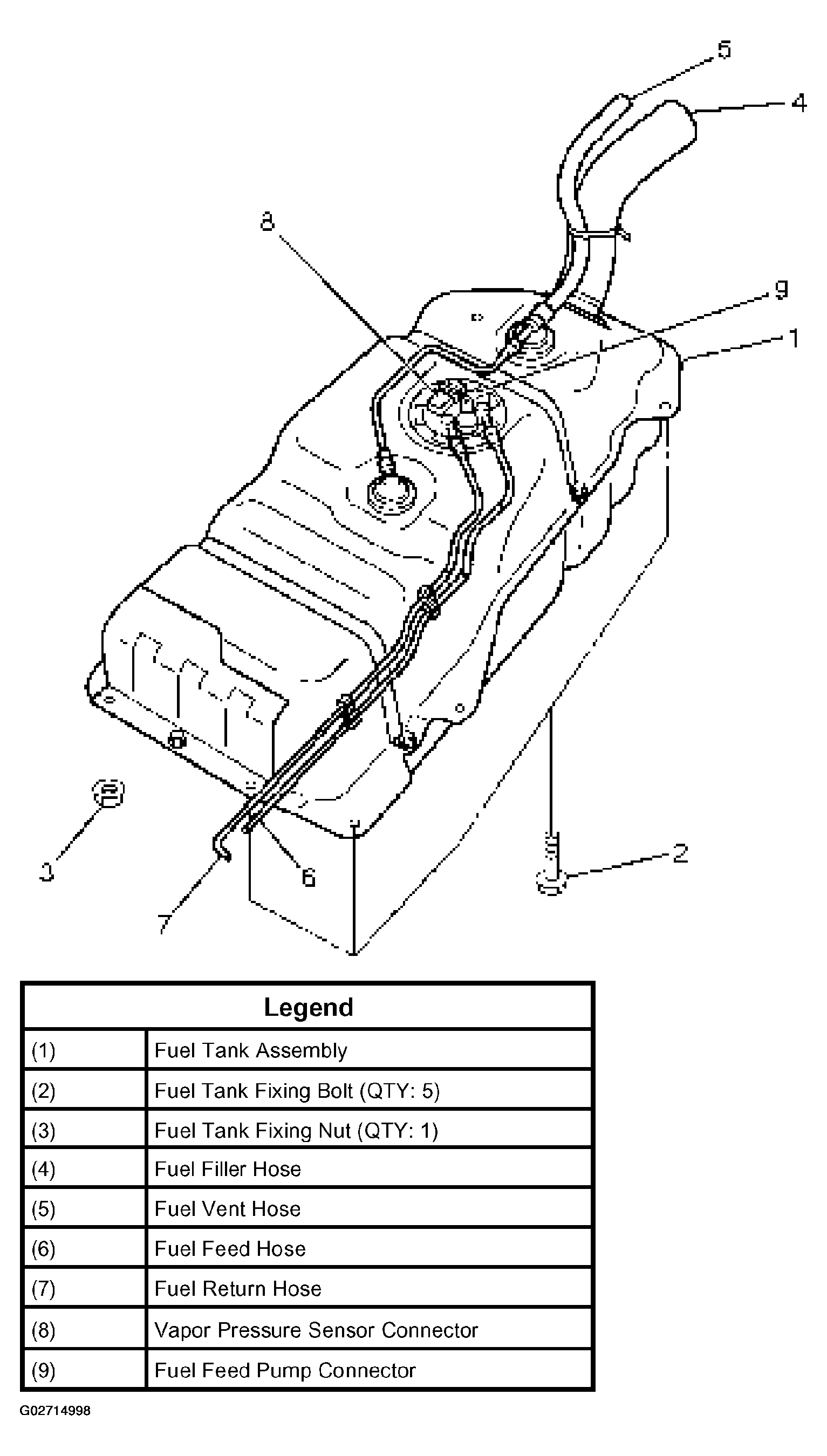

Fig 1: Identifying Fuel Tank

G02714998

Courtesy of ISUZU MOTOR CO.
