Chart B-8: 2WD Controller In 4WD Vehicle Controller (DTC 13 (Flash Out) / C0285 (Serial Communications)), 4WD State Input Signal Failure (DTC 24 (Flash Out) / C0282 (Serial Communications))

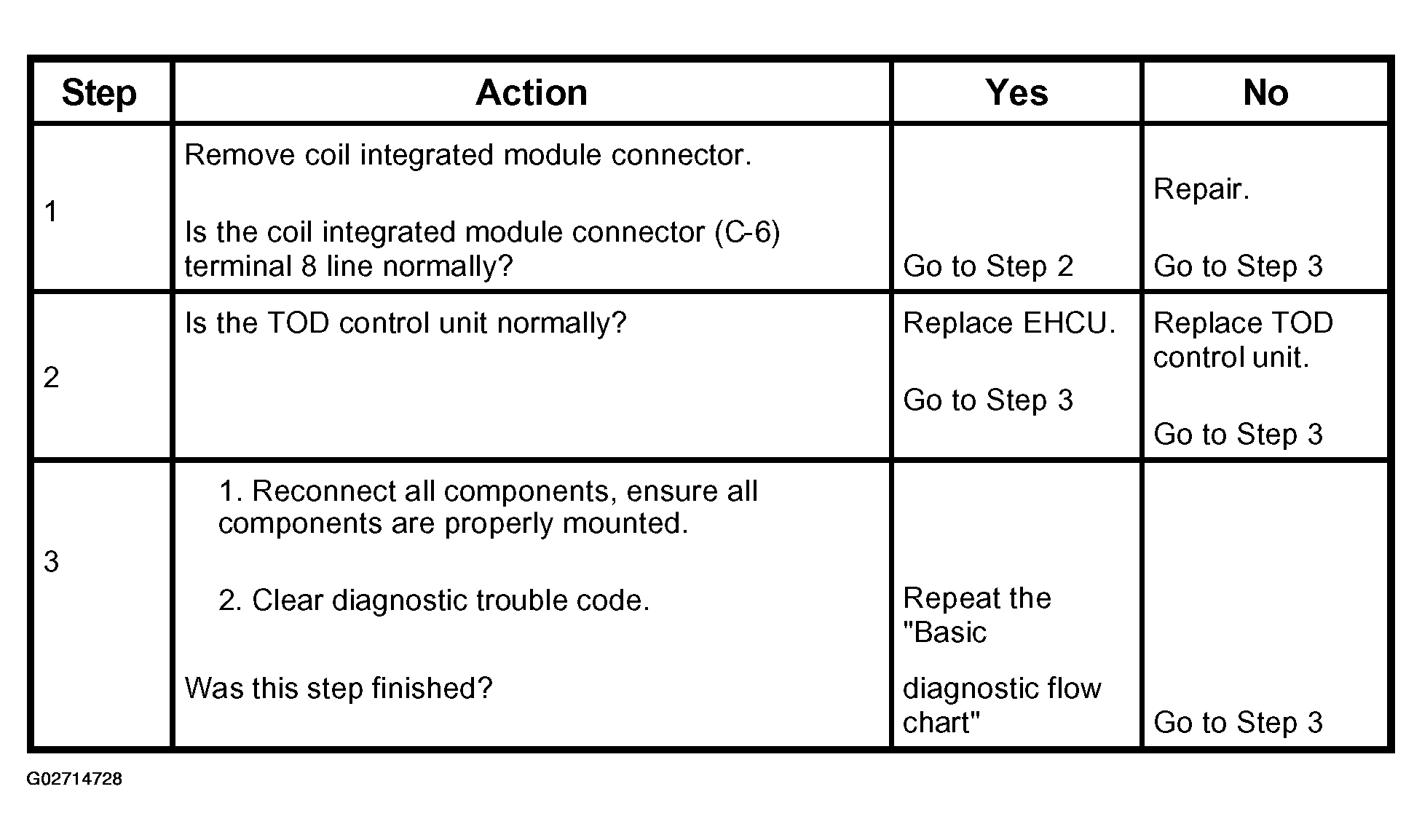

Fig 1: Diagnosis Procedure - 2WD Controller In 4WD Vehicle Controller (DTC 13 (Flash Out) / C0285 (Serial Communications), 4WD State Input Signal Failure (DTC 24 (Flash Out) / C0282 (Serial Communications)
G02714728Courtesy of ISUZU MOTOR CO.
