Home >> Isuzu >> 2003 >> Ascender 5.3 P, RWD >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> Lighting System - Connector End Views >> Lighting System Connector End Views >> Turn Signal/Multi-Function Switch C3

Turn Signal/Multi-Function Switch C3

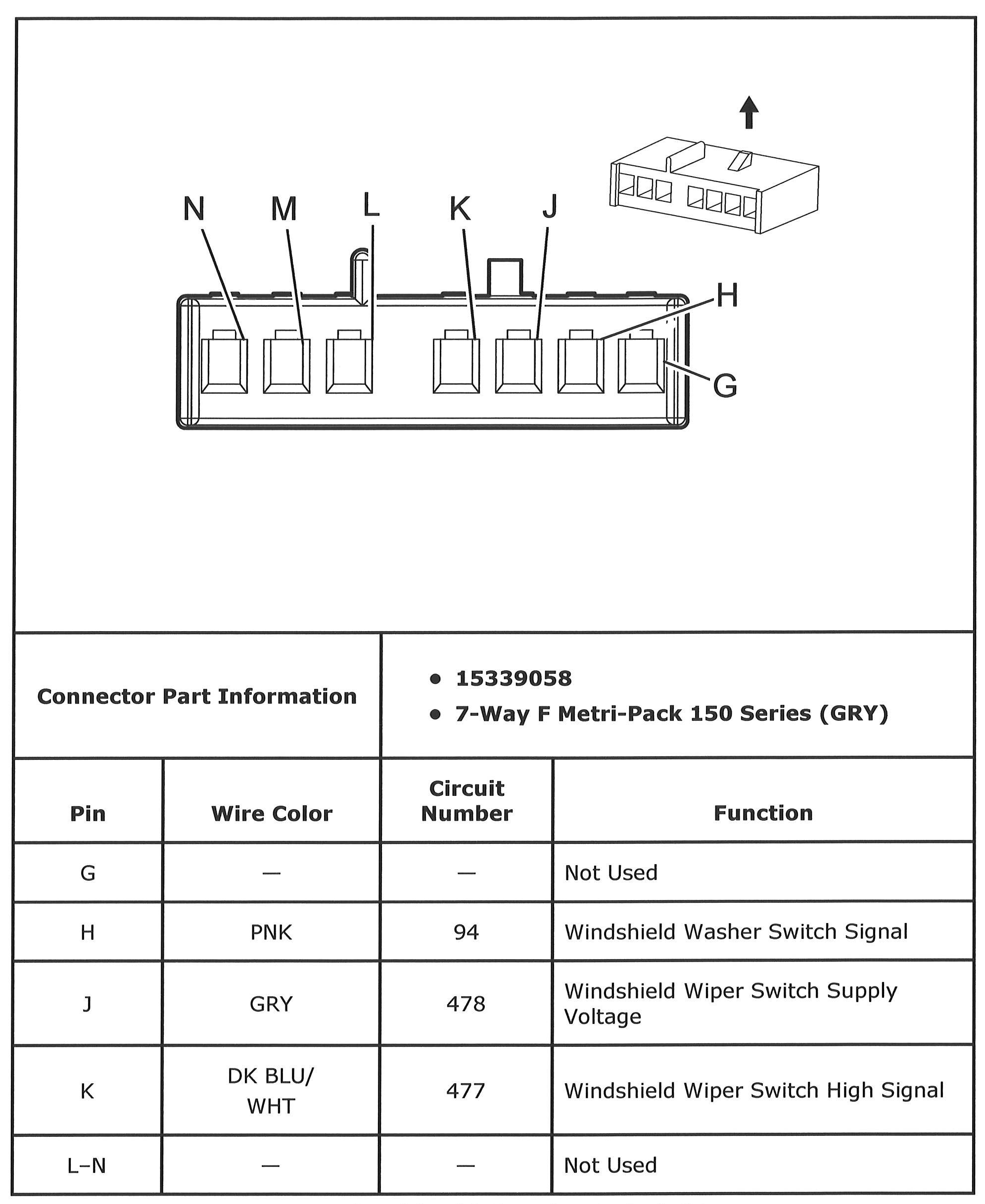

Fig 1: Turn Signal/Multi-Function Switch C3 Connector End View

G00539547

Courtesy of ISUZU MOTOR CO.
