Installation Procedure

WARNING: This page is about a different car, the 2004 Isuzu Ascender. However, it is still accessible from the selected car via links, so may be relevant.

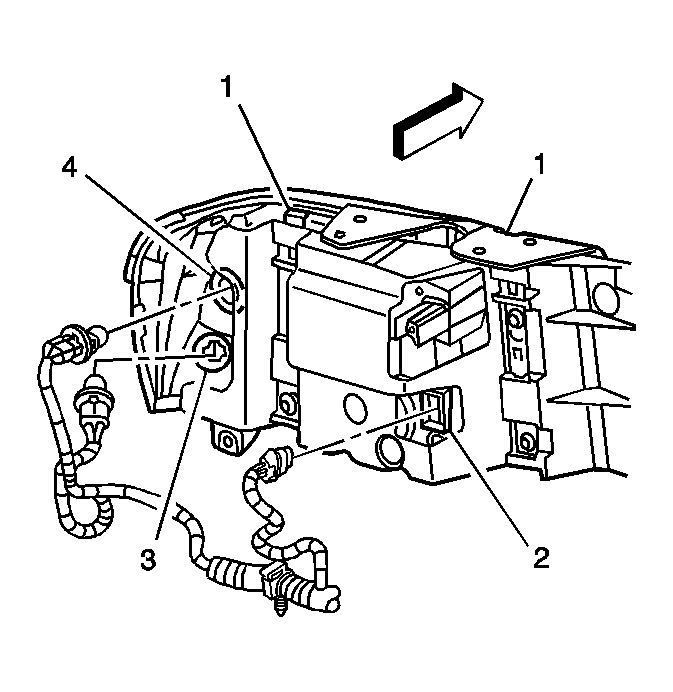

    Fig 1: Retaining Tabs, Headlamp Electrical Connector, Side Marker Socket And Park/Turn Socket
    GM742005Courtesy of GENERAL MOTORS CORP.
  1. Position the headlamp assembly to the headlamp panel.
  2. Index and seat the tabs on the park/turn socket (4) to the headlamp assembly.
  3. Index and seat the tabs on the side marker socket (3) to the headlamp assembly.
  4. Connect the headlamp electrical connector (2).
  5. Align and install the 4 locator pins on the back of the headlamp assembly into the retaining tab holes.
  6. Push down on the retaining tabs (1) in order to lock the headlamp assembly into the headlamp panel.
  7. Close the hood.
