Installation Procedure

WARNING: This page is about a different car, the 2004 Isuzu Ascender. However, it is still accessible from the selected car via links, so may be relevant.

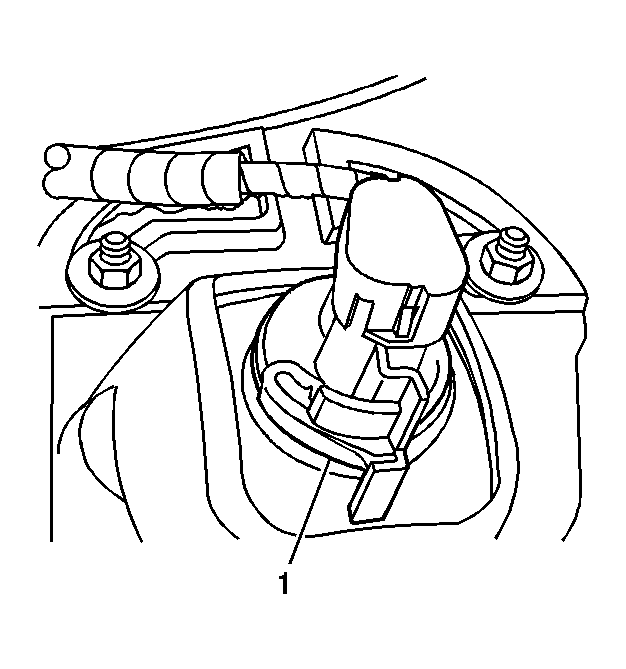

    Fig 1: Backup Lamp Socket Retaining Tab
    GM749848Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb into the socket.
  2. Index the socket tabs to the backup lamp housing slots.
  3. Position the socket to the backup lamp housing.
  4. Rotate the socket clockwise until the retaining tab (1) is fully seated.
