Connector Identification

Fig 1: Identifying Accelerator Pedal Position Sensor Connector Terminals

G00058889

Courtesy of GENERAL MOTORS CORP.

Fig 2: Identifying Camshaft Actuator Solenoid Connector Terminals

G00101469

Courtesy of GENERAL MOTORS CORP.

Fig 3: Identifying Camshaft Position Sensor Connector Terminals

G00058890

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Crankshaft Position Sensor Connector Terminals

G00101468

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Engine Coolant Temperature Sensor Connector Terminals

G00058891

Courtesy of GENERAL MOTORS CORP.

Fig 6: Identifying EVAP Canister Purge Solenoid Connector Terminals

G00101452

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying EVAP Canister Vent Solenoid Connector Terminals

G00101453

Courtesy of GENERAL MOTORS CORP.

Fig 8: Identifying Fuel Pump & Sender Connector Terminals

G00101454

Courtesy of GENERAL MOTORS CORP.

Fig 9: Identifying Fuel Tank Pressure Sensor Connector Terminals

G00101455

Courtesy of GENERAL MOTORS CORP.

Fig 10: Identifying Heated Oxygen Sensor 1 Connector Terminals

G00101456

Courtesy of GENERAL MOTORS CORP.

Fig 11: Identifying Heated Oxygen Sensor 2 Connector Terminals

G00101457

Courtesy of GENERAL MOTORS CORP.

Fig 12: Identifying Intake Air Temperature Sensor Connector Terminals

G00101464

Courtesy of GENERAL MOTORS CORP.

Fig 13: Identifying Ignition Coil No. 1 Connector Terminals

G00101458

Courtesy of GENERAL MOTORS CORP.

Fig 14: Identifying Ignition Coil No. 2 Connector Terminals

G00101459

Courtesy of GENERAL MOTORS CORP.

Fig 15: Identifying Ignition Coil No. 3 Connector Terminals

G00101460

Courtesy of GENERAL MOTORS CORP.

Fig 16: Identifying Ignition Coil No. 4 Connector Terminals

G00101461

Courtesy of GENERAL MOTORS CORP.

Fig 17: Identifying Ignition Coil No. 5 Connector Terminals

G00101462

Courtesy of GENERAL MOTORS CORP.

Fig 18: Identifying Ignition Coil No. 6 Connector Terminals

G00101463

Courtesy of GENERAL MOTORS CORP.

Fig 19: Identifying Knock Sensor 1 Connector Terminals

G00101465

Courtesy of GENERAL MOTORS CORP.

Fig 20: Identifying Knock Sensor 2 Connector Terminals

G00101466

Courtesy of GENERAL MOTORS CORP.

Fig 21: Identifying MAP Sensor Connector Terminals

G00101467

Courtesy of GENERAL MOTORS CORP.

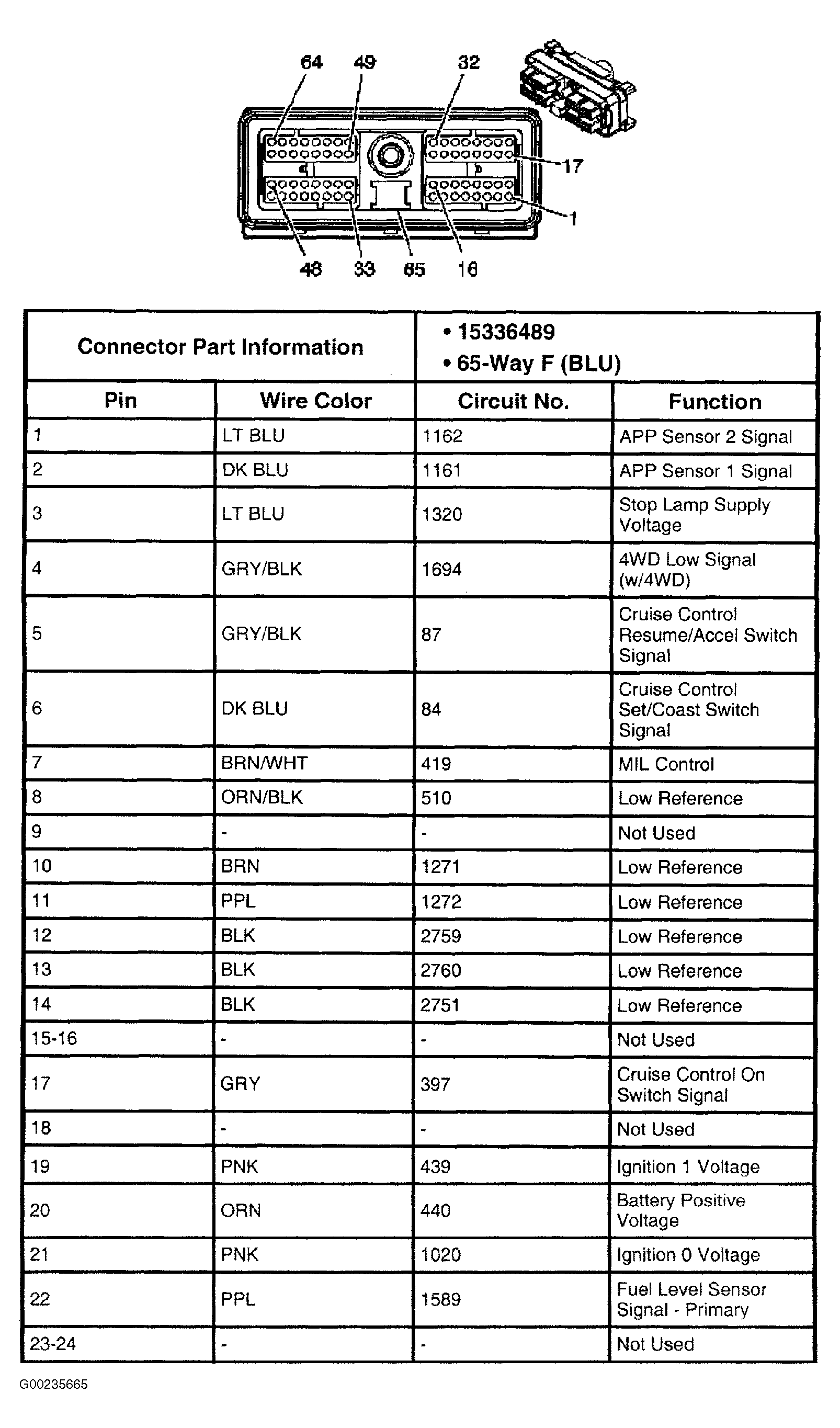

Fig 22: Identifying PCM Connector C1 Terminals (1 Of 2)

G00235665

Courtesy of ISUZU MOTOR CO.

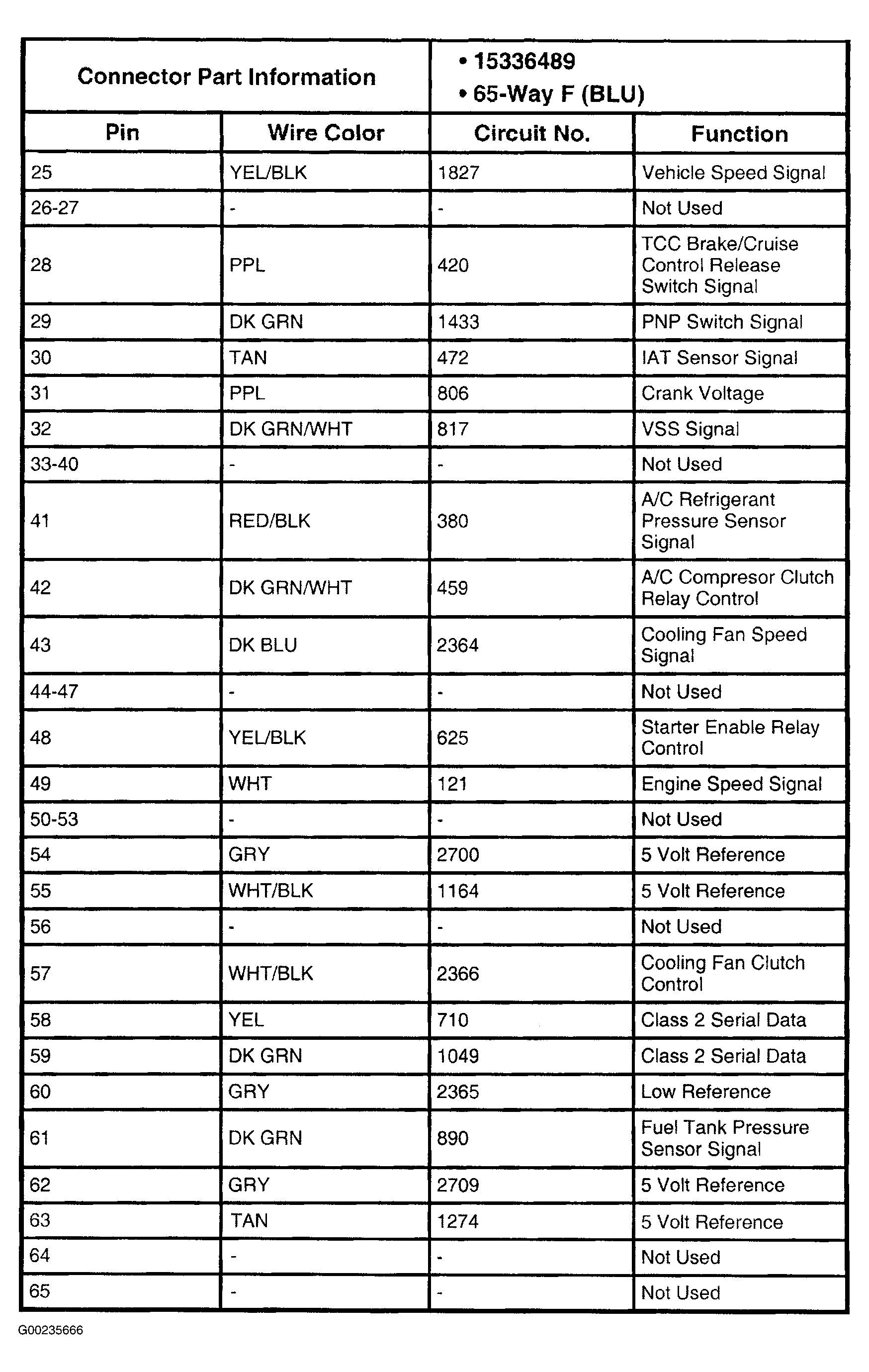

Fig 23: Identifying PCM Connector C1 Terminals (2 Of 2)

G00235666

Courtesy of ISUZU MOTOR CO.

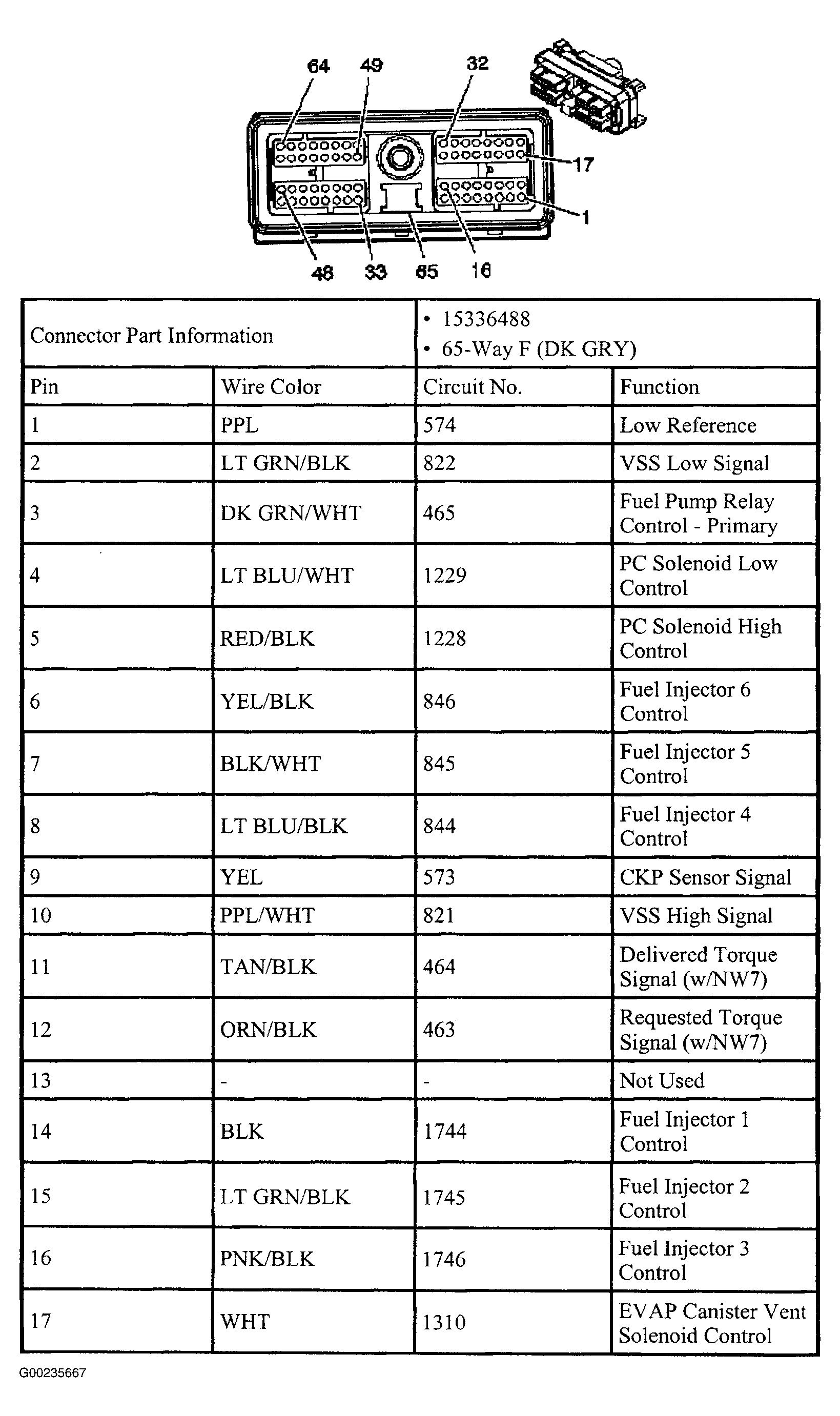

Fig 24: Identifying PCM Connector C2 Terminals (1 Of 3)

G00235667

Courtesy of ISUZU MOTOR CO.

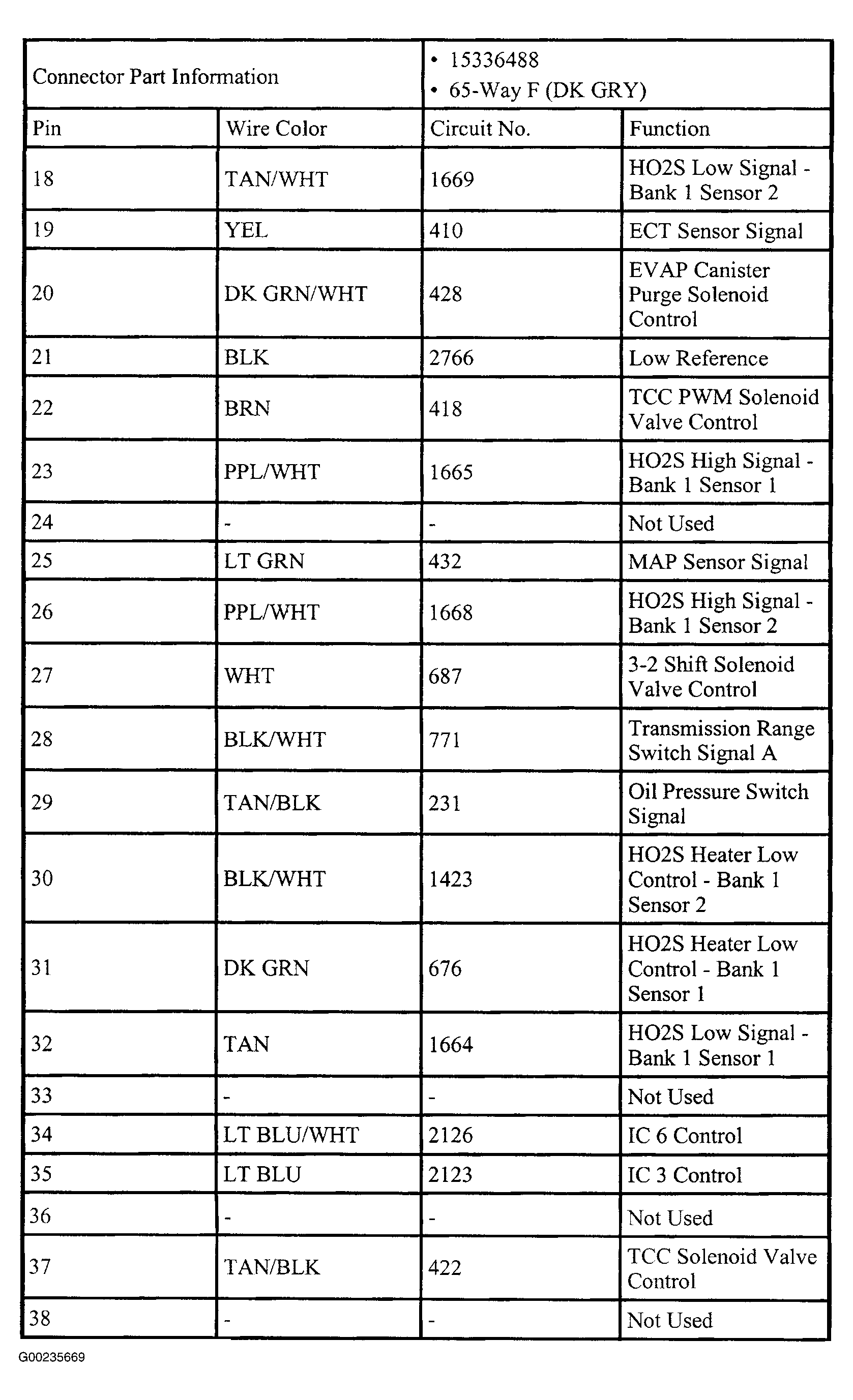

Fig 25: Identifying PCM Connector C2 Terminals (2 Of 3)

G00235669

Courtesy of ISUZU MOTOR CO.

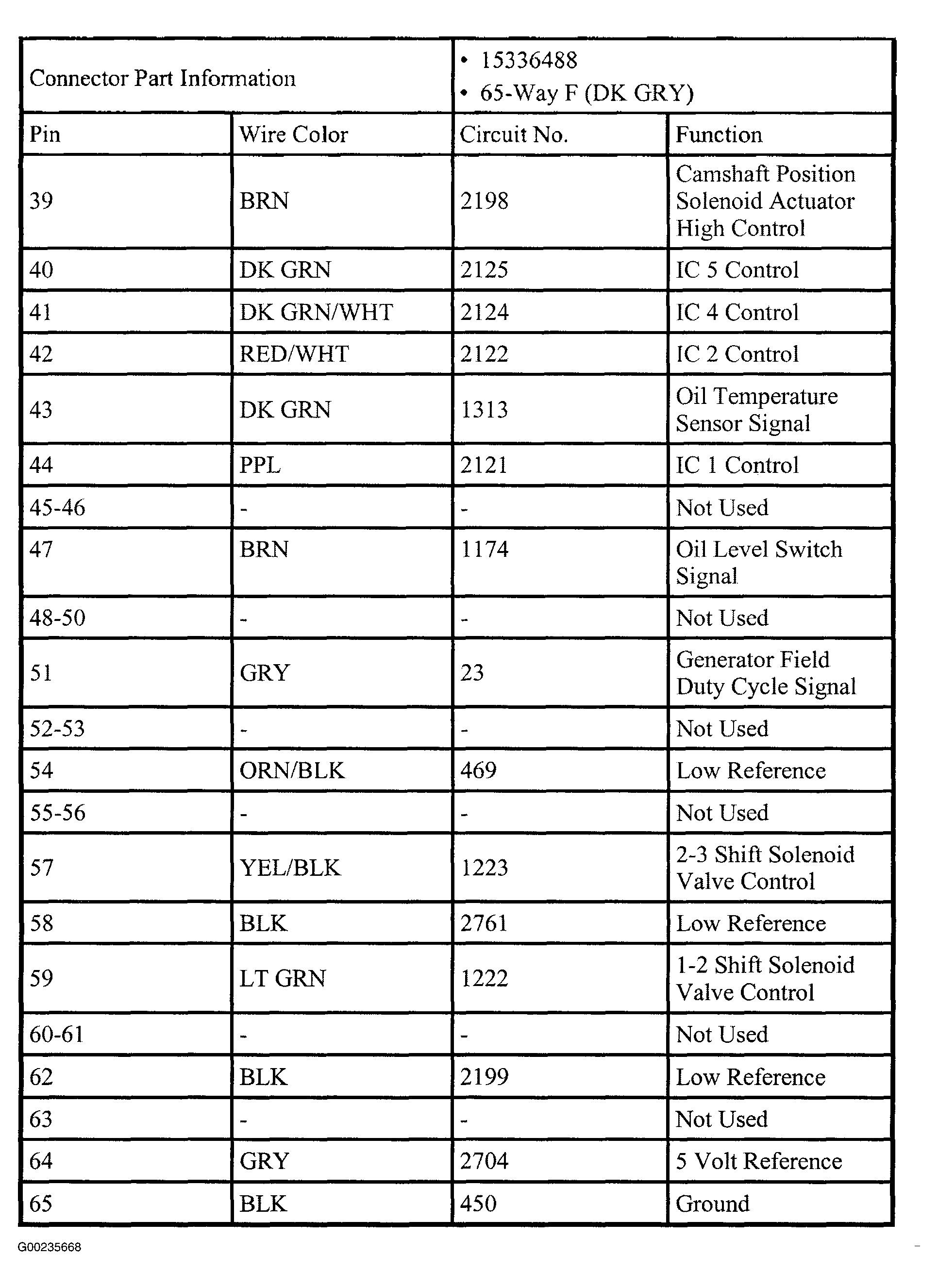

Fig 26: Identifying PCM Connector C2 Terminals (3 Of 3)

G00235668

Courtesy of ISUZU MOTOR CO.

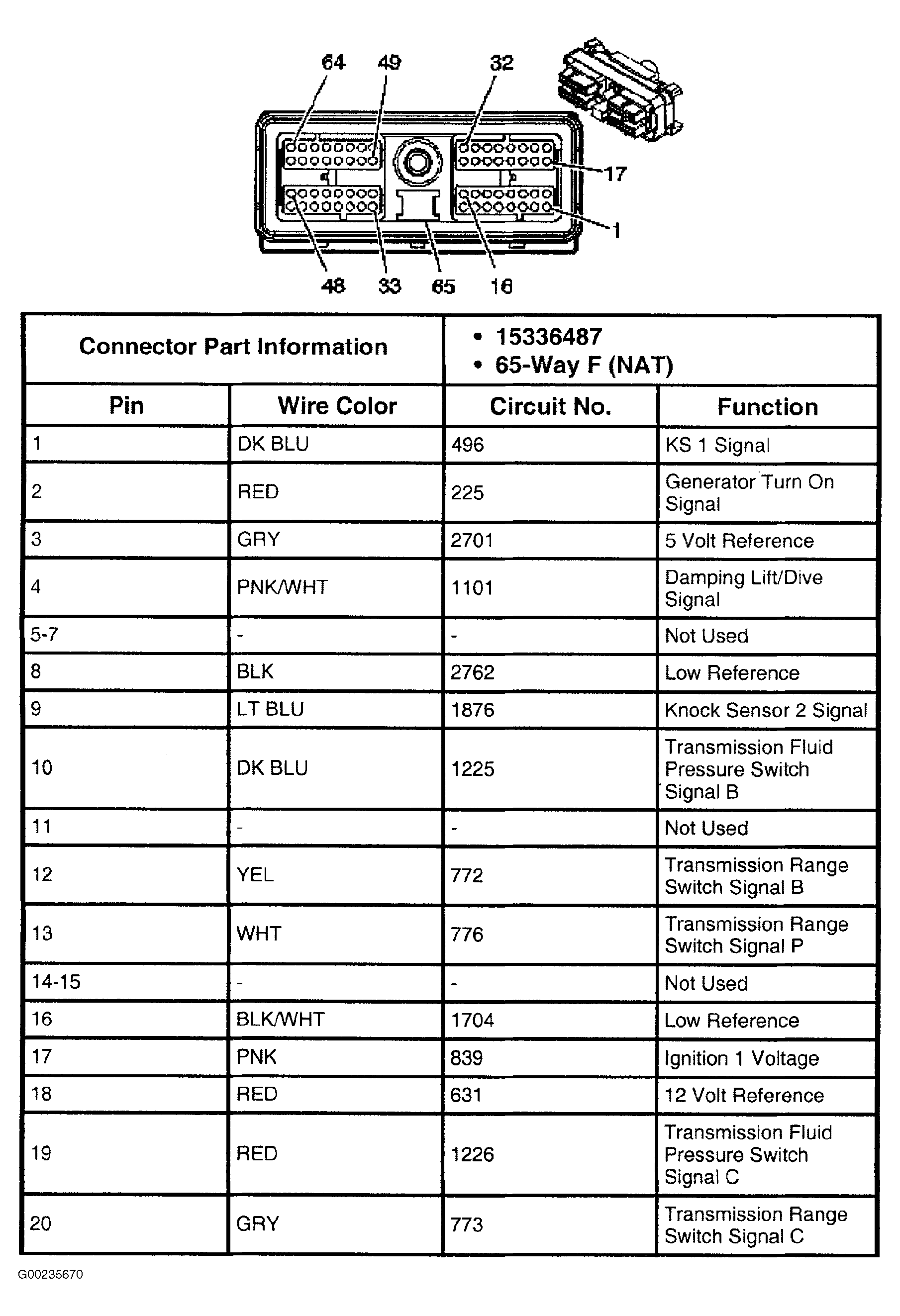

Fig 27: Identifying PCM Connector C3 Terminals (1 Of 2)

G00235670

Courtesy of ISUZU MOTOR CO.

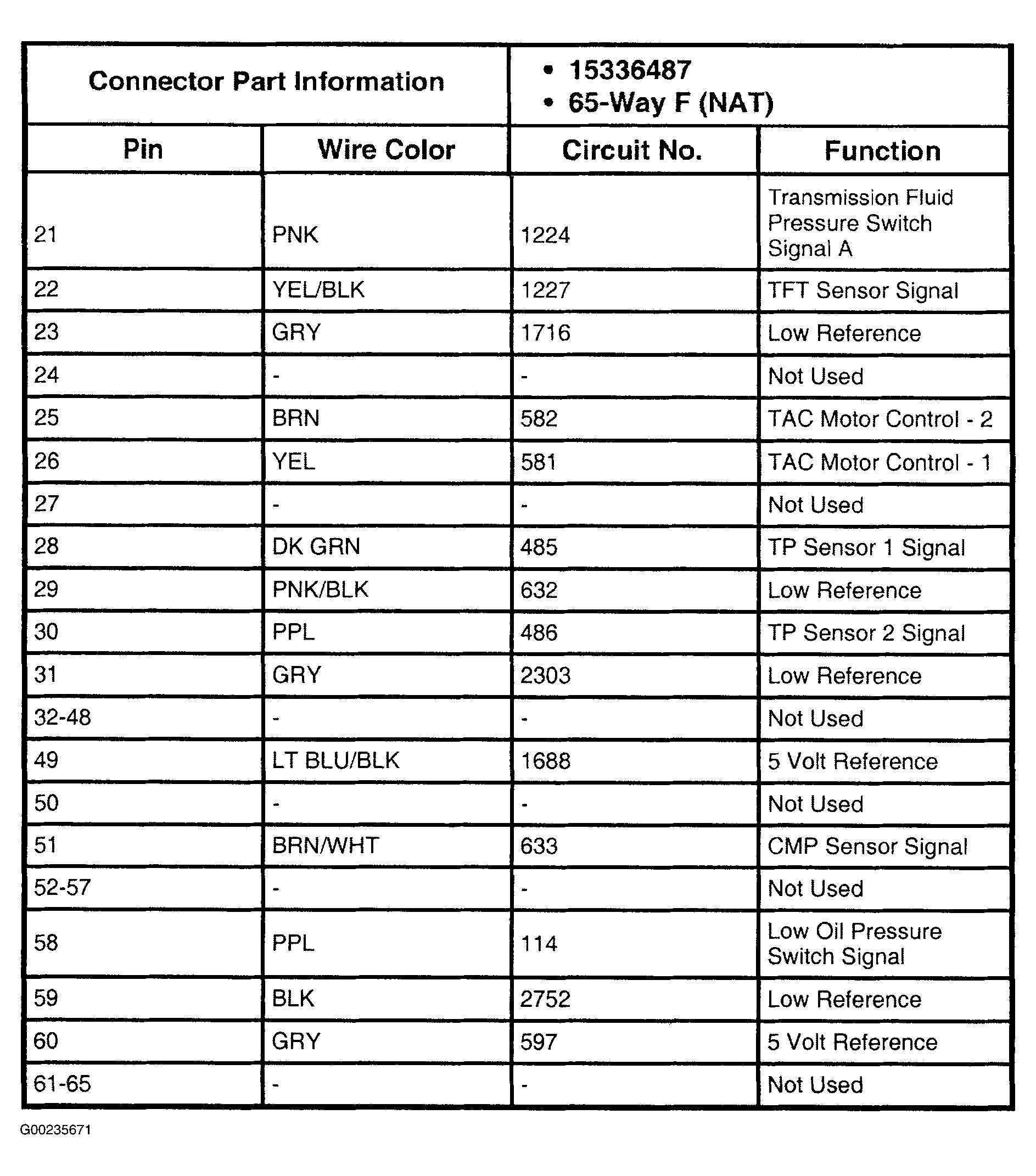

Fig 28: Identifying PCM Connector C3 Terminals (2 Of 2)

G00235671

Courtesy of ISUZU MOTOR CO.

Fig 29: Identifying Throttle Actuator Control Motor Connector Terminals

G00101470

Courtesy of GENERAL MOTORS CORP.
