Installation Procedure

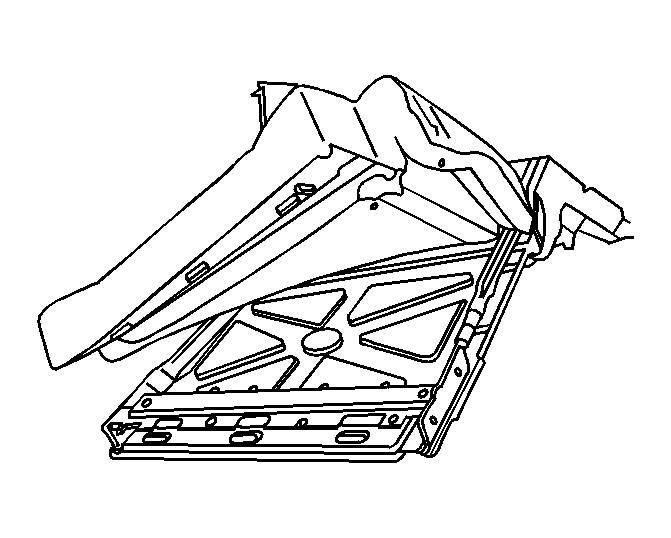

    Fig 1: Removing/Installing Seat Back Frame Pad
    GM824173Courtesy of GENERAL MOTORS CORP.
  1. Install the head restraint guides by pushing them through the cover into the frame until the locking tabs snap into place. The guide with the locking tab (1) installs on the right hand side of the seat.
  2. Install the seat back cover and pad on the seat back frame. Refer to Seat Back Cover and Pad Replacement - Rear No. 2 .
  3. Install the head restraint assembly. Refer to Head Restraint Replacement - Rear Seat .
